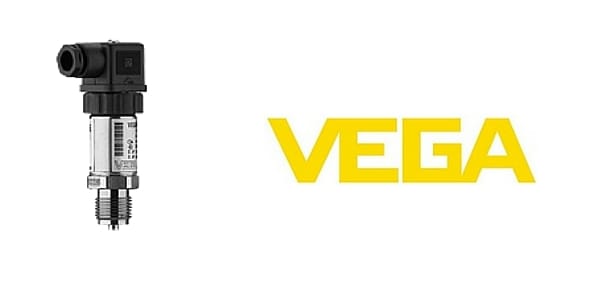

VEGABAR 17 Process Pressure Measurement Transmitter (Liquid & Gas)

VEGABAR 17 Process Pressure Measurement Transmitter

VEGABAR 17 Process Pressure Measurement Transmitter

Pressure Transmitter VEGA VEGABAR 17

Pressure Measurement for Liquids & Gases

VEGA VEGABAR 17 process pressure measurement transmitter with metallic measuring cell can be used to measure liquids and gases at high pressures

VEGABAR 17 pressure transmitter is small in size but still able to offer the highest reliability and operational safety.

VEGABAR 17 is an economical pressure measurement solution for a wide range of applications in all industries thanks to the following features:

  • Low maintenance costs thanks to wear-free ceramic measuring cell
  • High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
  • Economic version with small mounting dimensions

VEGA VEGABAR 17 Pressure Measurement Transmitter

Product Specifications

Measuring Range – Distance Measuring Range – Pressure Process Temperature Pressure Transmitter Accuracy  Level Sensor Protection Rating Ambient Temperature Hazardous Area ATEX

Pressure Transmitter
– -1 -1000 bar -40 -150 °C 0.05% IP67
IP 65
IP 68 (0.5 bar)		 -40 to 80 °C  Yes, VEGA VEGABAR 17 is suitable for hazardous areas

ATEX Level Sensors

(see ATEX download).



VEGABAR 17 Hazardous Area Certifications

VEGABAR 17 process pressure measurement transmitter is available with hazardous area certifications to meet ATEX directives for Zone 1 and Zone 2 installations.

ATEX Approvals

ATEX II 1/2G, 2G Ex ia IIC T6

ATEX II 1/2G, 2G Ex ia IIC T6 + ATEX II 1/2D IP6X T* + M1

ATEX II 1/2G Ex ia IIC T6 + Ship approval

VEGA process pressure measurement transmitters are suitable for use in hazardous areas and their instruments also have various ship approvals e.g  according to GL, LRS or ABS.

VEGA Process Pressure Measurement Transmitter – VEGABAR 17 FEATURES

MEASURING CELL TECHNOLOGY

The main part of the pressure transmitter is the ceramic measuring cell that cleverly transforms the pressure into an electrical signal.

The pressure dependent signal is changed by the integrated electronics into a standard signal output. The metallic measuring cell allows fully welded versions and also covers higher measuring ranges.

MATERIAL TRANSMITTER

316L Ti and Alloy C4. The process seal consists of FKM, EPDM and NBR

HOUSING VERSIONS

Plug connector according to ISO 4400. Available with IP 67 rating

MEASURING RANGE

-1 … +1000 bar/-100 … +100000 kPa (-14.5 … +14503 psig)

SMALLEST MEASURING RANGE

0.1 bar/10 kPa (1.45 psig)

PROCESS TEMPERATURE

-40 … +150 °C (-40 … +302 °F)

SIGNAL OUTPUT

    • 4-20 mA

APPROVALS

    • ATEX
    • EAC (GOST)
    • Ship
    • UKR
    • Sepro

VEGA VEGABAR pressure measurement transmitters to suit all liquid, gas, and vapour application with measuring distance (metres), pressure range (bar), temperatures (° Celsius) and process pressure.

Thorne & Derrick provide Process Measurement and Instrumentation systems for pressure measurement, level measurement, temperature measurement and flow measurement.

T&D provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
