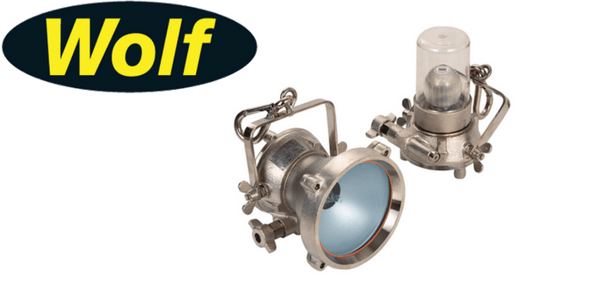

Wolf Airlamp Turbolite – Zone 1 & Zone 2 Hazardous Area

Wolf Airlamp Turbolite - Zone 1 & Zone 2 Hazardous Area

Wolf Airlamp Turbolite – Zone 1 & Zone 2 Hazardous Area

wOLF

Hazardous Area Airlamps

Wolf A-TL44 | Wolf A-TL45

Airlamps for Zone 1, Zone 2 Hazardous Area Lighting

Wolf Turbolite are airlamps for safe use in hazardous area Zone 1 & 2 (Gas, Vapour & Mist Explosive Atmospheres) – T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.

Wolf Turbolite airlamps are able to offe suitable lighting alternative solution to low voltage lighting in wet conditions. In particular for applications in the oil and petrochemical industries such as tank cleaning and pipeline inspections where flammable gases and vapours can accumulate in confined spaces.

The Turbolite airlamps all have bay light fitting comprising a ball glass and protective polycarbonate dome to provide all-round general purpose illumination. Hooks are also present so the airlamps can be suspended in the work area or attached to a folding tripod. They must all use an anti-static hose to prevent the generation of unsafe levels of static electricity.

Airlamps For Hazardous Areas

Wolf Turbolite airlamp provides reliable and versatile hazardous area lighting – the airlamps utilise tungsten halogen technology as a light source and are used for safe lighting in hazardous area Zones 1 and Zones 2 (potentially explosive gas atmospheres) (IIA, IIB & IIC Groups) with T4 temperature classification.

An overview of the Wolf Turbolite airlamps range to provide portable lighting in explosive atmospheres:

  • Wolf A-TL44 Turbolite Airlamp Zone 1
  • Wolf A-TL45 Turbolite Airlamp Zone 1
  • Certification: Ex s II T4
  • Hazardous Area Zone 1 & 2 Gas Groups IIA, IIB & IIC
  • Temperature Classification (Gas) T4 | See more information about T Class Ratings
  • More Technical Information Hazardous Area Zones

Wolf Turbolite airlamp

ATEX Airlamps

ATEX Airlamps

  • 250 Watt Halogen Ultimate Output
  • Electronic Setting Device
  • Generator Overspeed Protector
  • Advanced Internal Topology Rotor Design
  • Spark Free Brass Casings
  • Full Accessory Range Available

AirLAMP

Zones 1 & 2 Hazardous Areas

  • Zone 1 & Zone 2 Gas
  • See below table for Certification details including T-Rating, Gas Groups and Zone locations

The Wolf Turbolite range are airlamps manufactured by Wolf Safety Lamp to provide lighting in Zone 1 & Zone 2 hazardous areas – the tungsten halogen airlamps are for use in potentially explosive atmospheres.

Wolf Airlamp Turbolite

Wolf Airlamp Turbolite

Wolf Airlamp Turbolite Technical Information

The following table explains the technical specification differences for the Wolf Turbolite range of airlamps – should you require support or advice on selecting the correct hazardous area airlamp please do not hesitate to contact us.

Wolf Turbolite Part Reference Wolf A-TL44 Wolf A-TL45
Airlamp Description Safety Bay Light, Compressed Air Powered Safety Flood LightCompressed Air Powered
Hazardous Area Code Ex s II T4
Apparatus Standards  SFA 3009:1972
Type of Protection  “s” special protection
Area of Hazardous Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temperature Classification T4
Ambient Temperature -20ºC to +40ºC
ATEX Certificate BASEEFA Ex 78209X*
Enclosure Nickel Plated Brass and Gun Metal
Lens Ball Glass/Polycarbonate Dome Toughened Glass (15mm)
Beam Type All-around 360° Illumination Flood (Matt Reflector) (as standard) or Spot (Polished Reflector) (to order)
Light Source Part Reference A-129
(as std) or A-159
(as alt)
A-129 (as std) or A-159
(as alt)
Type Tungsten Halogen Filled Filament Bulb
Volts 24v
Watts 250w
Output 6000 lm – 9000 lm 6000 lm – 9000 lm
Life 2000 hrs – 200 hrs 2000 hrs – 200 hrs
Power Source Type Compressed Air Driven Turbo-alternator
Air Pressure 4.0-8.0 bar
Consumption 0.75m3/min
Ingress Protection Once pressurised may be used underwater
Weight 7.9kg 12.2kg
*Special certification conditions  A clean dry air supply must be used. Supply hose must be anti-static.

WOLF AIRLAMP TURBOLITE

Light Output & Product Dimensions

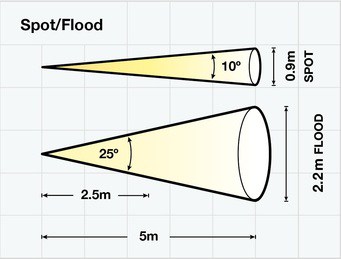

Wolf Airlamp Turbolite - Light Output

Wolf Airlamp Turbolite – Light Output

A-TL44 – Ball Glass
Peak luminous intensity at 2.5m 70lux

A-TL45 – Polished Reflector
Spot Beam (approx 10°)
Peak luminous intensity at 5m 2000lux

A-TL45 – Matt Reflector
Flood Beam (approx 25°)
Peak luminous intensity at 5m 950lux

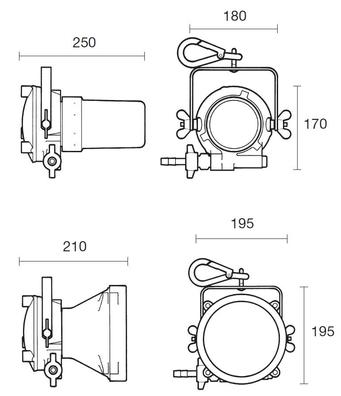

Wolf Airlamp Turbolite - Product Dimensions

Wolf Airlamp Turbolite – Product Dimensions
