Wolf XT-90 Handlamp

Hazardous Area Handlamps

Wolf XT-90

Handlamp

Gas: Hazardous Area Zone 1 & Zone 2

Dust: Hazardous Area Zone 21 & Zone 22

Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Wolf temporary and portable lighting products.

Wolf XT-90 hazardous area handlamps are ATEX & IECEx certified for use in Zones 1 & 2 (Gas) and Zone 21 & 22 (Dust) – plus Zones 0 and 20 version available.

Wolf XT-90 hAZARDOUS aREA hANDLAMP

Wolf Wolflite XT-90 is a rechargeable LED handlamp with “ib” intrinsic safety type of explosion protection for hazardous areas – using high power LED as the light source the Wolflite XT-90 provides an output of 350+ lm (White).

Part Number: Wolf XT-90
Product Category: Hazardous Area Lighting
Product Range: Hazardous Area Handlamps
Zone 1 & Zone 2 Hazardous Area – Gas Groups IIA, IIB & IIC
Zone 21 & Zone 22 Hazardous Area – Dust Groups IIIA and IIIB
Explosion Proof/Protection Concept: Ex “ib” intrinsic safety
Temperature Classification (Gas) – T4
Handlamp Beam Type – Spot / Flood / Signal (High Power LED – 2 x White, 2 x Coloured)
Compact & Lightweight – 1.2Kg
Industrial Code (ATEX & IECEx): M2/II 2GD Ex ib op is I Mb/IIC T4 Gb IP67 Ex ib op is IIIB T185°C Db (Temperature ambient –30°C to +40°C)
Mining Code: I M2 Ex ib I Mb IP67
See more ATEX Handlamps

➡ See our technical resource section for further detailed information about hazardous area Zones and T-Class ratings.

Wolflite XT Rechargeable LED Handlamps

ATEX & IECEx Certification: II 2GD Ex ib IIC T4 Gb IP67 Ex ib IIIB T185°C Db (Temperature ambient -30°C to +40°C)

Wolf XT-90 – Spot Beam (approx 3.5°) with a low power Fringe Beam (approx 50°), Flood Beam (approx 30º) – for further information about Hazardous Area Lighting for Zone 1 and Zone 2 please contact T&D’s Sales Engineers.

➡ For complete specifications, technical date and ordering details about Wolf XT-90 please refer to the download opposite or contact T&D to discuss your handlamp requirements.

WOLF WOLFLITE XT LED HANDLAMP TECHNICAL INFORMATION

The following table explains the technical specification differences for the Wolflite XT-90 handlamps – should you require support or advice on selecting the correct hazardous area handlamp please do not hesitate to contact us.

Wolf XT-90

Wolf Wolflite Part Reference		Wolf XT-90
Handlamp Description		Rechargeable Safety Handlamp
		Performance+
Hazardous Area Code (ATEX & IECEx)	Industrial	II 2GD Ex ib IIC T4 Gb IP67, Ex ib IIIB T185ºC Db (Temperature ambient -30ºC to +40ºC)
	Mining	I M2 Ex ib I Mb IP67
Type of Protection		“ib” Intrinsic Safety
Area of Hazardous Classification (Gas)		Zones 1 and 2, Gas Groups IIA, IIB & IIC
Temperature Classification (Gas)		T4
Area of Hazardous Classification (Dust)		Zones 21 and 22, Dust Groups IIIA and IIIB
Maximum Surface Temperature (Dust)		185ºC
Ambient Temperature		-30ºC to +40ºC
ATEX Certificate		ATEX Baseefa09ATEX0326X / IECEx BAS 09.0153X
Enclosure		Impact resistant thermoplastic, electrostatic non-hazardous
Lens		Toughened glass
Beam Type		Spot / Flood / Signal
Light Source	Type	High Power LED
	Quantity	2 x White, 2 x Coloured
	Output	350+ Im (White)
	Life	25,000+ Hours
Power Source	Type	Rechargeable battery, Lithium-Ion
	Part Number	XT-206
	Life	Up to 500 recharge cycles
Light Duration		Up to 11.0 / 22.0 hours
Ingress Protection		IP67 to EN60529: 1992
Weight		1.2kg
Compatible Charger		XT-200L 12-24VDC / XT-200H 90V-254VAC
Recharge Time		4.5 hours

IECEx Hazardous Area Scheme Certification

Ex ia I Ma
Ex ia IIC T4 Ga IP67
Ex ia IIIB T185ºC Da
X-75 Zone 0 Handlamp (Spot and Flood) Temperature ambient: –30°C to +40°C
Ex ib I Mb
Ex ib IIC T4 Gb IP67
Ex ib IIIB T185oC Db
Wolf XT-50 Zone 1 Handlamp (Spot)
Wolf XT-70 Zone 1 Handlamp (Spot and Flood)
Wolf XT-90 Zone 1 Handlamp (Spot, Flood and Signal)
Temperature Ambient –30°C to +40°C

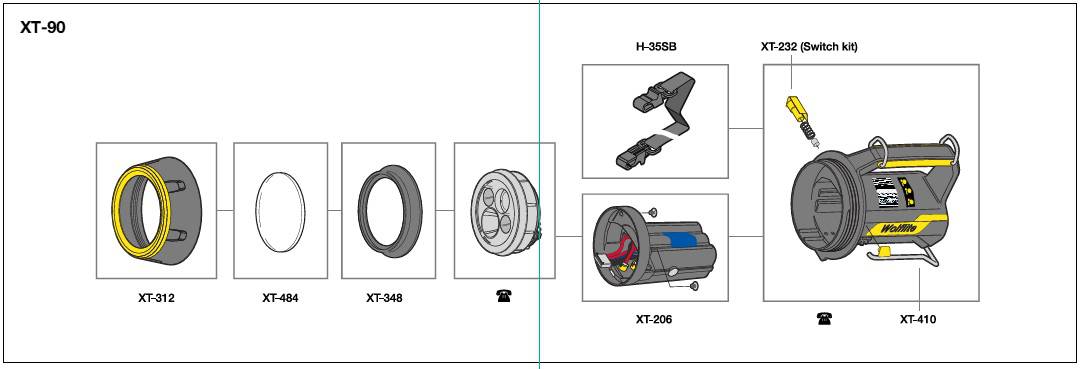

Wolf Wolflite XT-90 Rechargeable Handlamp

Wolf – tHE hAZARDOUS AREA lIGHTING sPECIALISTS

Contact T&D to discuss all your portable and temporary hazardous area lighting requirements – as Main Distributors for Wolf Safety Lamp we can provide expert technical support and competitive prices with delivery from stock.
