ATEX Cable Reels for Static Earthing

StuvEx Safe-Ground CR1/65 for Hazardous Areas & Explosion Protection

Safe-Ground CR1/65 cable reel for use with Safe-Ground earthing clamps has been specially developed to provide an effective, low-resistance connection between movable objects and the multipoint earthing control systems, to safely divert any static electricity.

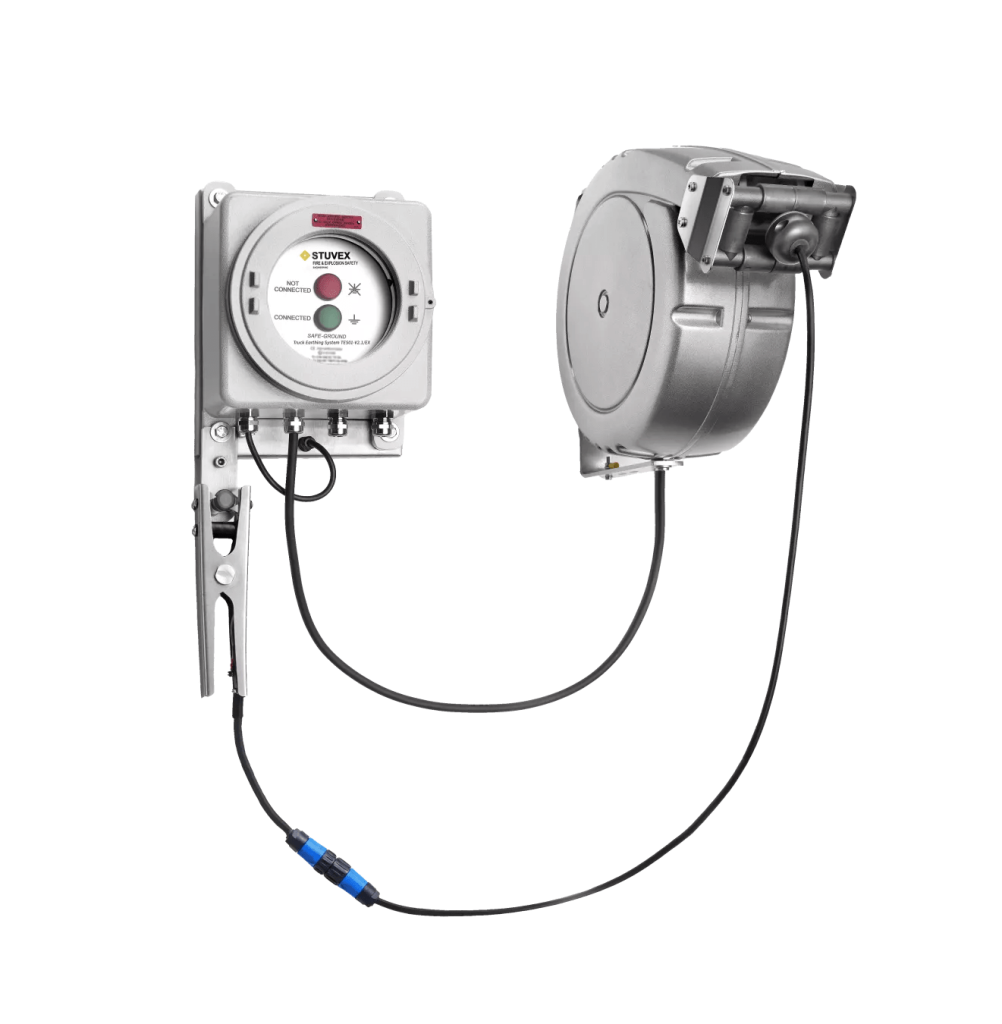

The ATEX cable reels are supplied as component of the StuvEx static earthing system and can be combined with any of the control units and clamps of the Safe-Ground product range for use in hazardous areas with potentially explosive atmospheres.

➡ Thorne & Derrick together with StuvEx supply Static Bonding Clamps, Cables & Connectors to the hazardous area EX industries with over 35 years experience.

---

Safe-Ground CR1/65 for Hazardous Area Static Earthing

Earthing System Benefits

Specially designed and developed for the Safe-Ground earthing systems, the cable reel offers the following advantages:

• High mechanical protection of the cable
• Simple and quick installation
• Minimum resistance (< 10 Ohm)
• Closed housing with earth connection
• Integrated retractor
• Cable routing with self-lubricating rollers
• Automatic blocking mechanism
• Swivelling bracket in stainless steel
• Both for indoor and outdoor use
• Suitable for use in ATEX environment (zone 1, 2, 21 and 22)

---

CR1/65 Cable Reel Operation

The Safe-Ground CR1/65 cable reel is equipped with brass slip rings and special brushes, so that a minimum impedance is guaranteed. As part of the StuvEx earthing control system, an effective, low-resistance (< 10 Ohm) and continuous connection is realised in this way, fully in accordance with IEC/TS 60079-32-1.

High ease of use for winding and unwinding the cable is achieved by a cable guide with self-lubricating rollers. A blocking mechanism provides a stop every 50 cm. In addition, the cable reel is equipped with a winding mechanism so that the cable is wound automatically after use. The pivoting bracket provides a wide range of use.

---

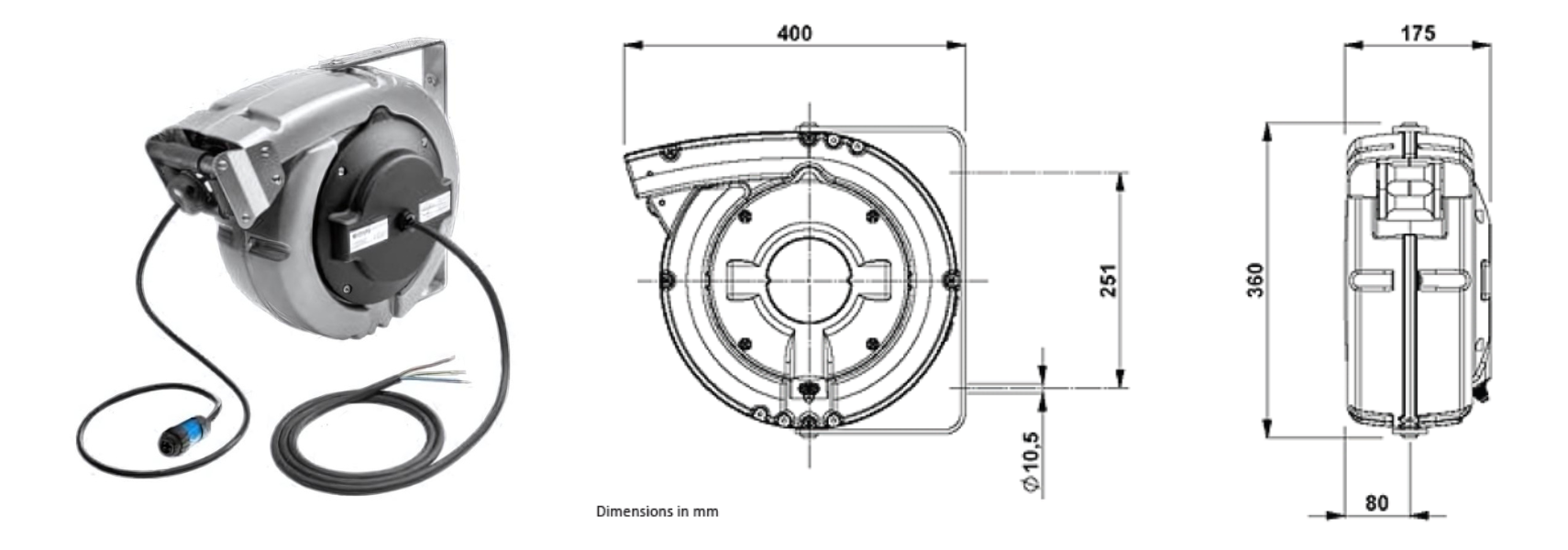

ATEX Cable Reels General Characteristics

Housing	Aluminium, grey
Swivelling bracket	Stainless steel, AISI 304
Cable type	H05VV-F 2 x 1,5 + 1,5 mm²
Core insultation	PVC, black
Length	15 m
Connection	1.7 m
Temperature	-5°C to +50°C
Humidity	95% relative humidity at 20°C, non-condensing
Degree of protection	IP65
Weight	10 kg
ATEX information	Suitable for use in hazardous area zones 1, 2, 21 and 22 II 2G Ex ia llC T6 Gb II 2D Ex ia IllC T85°C Db

---
