ATEX Earthing Clamp
StuvEx Safe-Ground CMS1 Stainless Steel Clamp for Hazardous Areas & Explosion Protection
The Safe-Ground CMS1 stainless steel earthing clamp with ATEX Certification designed to provide an effective, low-resistance connection between movable objects and earth to safely dissipate any static electricity. The stainless steel earthing clamp is suitable for use in hazardous areas and forms part of the StuvEx static earthing product range.
The Safe-Ground CMS1 earthing clamp is spring-loaded and equipped with hardened, sharp teeth. When the ATEX earthing clamp is applied to the object, the teeth immediately penetrate paint, rust or dirt, resulting in a connection resistance of less than 10 Ohm according to IEC/TS60079-32-1:2013/A1:2017.
The Safe-Ground CMS1’s robust design, integrated strain relief and high-quality material make the clamp ideal for use in harsh working conditions and in petrochemical, off-shore and other process industries.
➡ Thorne & Derrick together with StuvEx supply Static Bonding Clamps, Cables & Connectors to the hazardous area EX industries with over 35 years experience.
StuvEx Safe-Ground CMS1 Stainless Steel ATEX Earthing Clamp
Safe-Ground CMS1 Clamp For Hazardous Areas
Earthing Clamp Benefits
Specially developed for use with Safe-Ground earthing systems, the CMS1 earthing clamp offers the following advantages:
- Shaped, robust and ergonomic design
- Sharp, hardened teeth with optimal “biting power”
- Equipped with integrated strain relief
- Suitable for use in all weather conditions
- Suitable for use in chemical or saline environments
- Earthing clamps suitable for use in ATEX environment
- According to IEC/TS60079-32-1

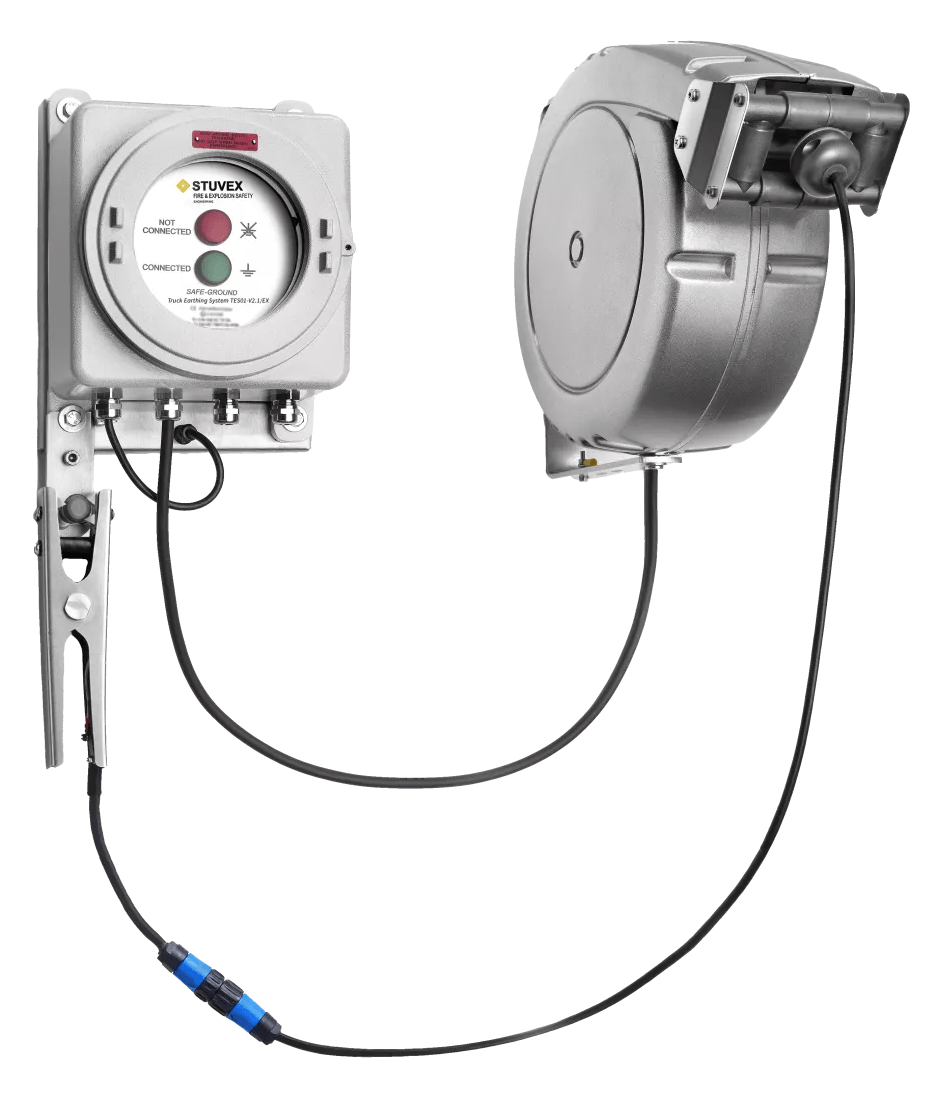

The CMS1 earthing clamp is usually supplied as part of a StuvEx Safe-Ground earthing or bonding system, in combination with the Spiral Earthing & Grounding Cables or Cable Reels and fitted with an ATEX approved connector.
A Safe-Ground CMS1 ATEX earthing clamp can also be ordered without a connector, for self-assembly.
ATEX Stainless Steel Earthing Clamp General Characteristics
| Material version | |
| Clamp | stainless steel 1.4401 (AISI 316) |
| Hinge | stainless steel 1.4301 (AISI 304) |
| Jaws | stainless steel 1.4112 (AISI 440B), hardened |
| Size | 210 mm |
| Weight | 0.55 kg |
| Jaw opening | |
| Min | 3 mm |
| Max | 30 mm |
| Temperature range | -40°C to +80°C |
| Protection category | IP67 |
| ATEX information | |
| Zones | suitable for use in hazardous area zones 1, 2, 21 and 22 |
| Technical | simple apparatus, Ci <250 pF, Li <2,5 μH |
Earthing Clamp Accessories
| Cable | H07RN-F 2 x 1,5 + 1,5 mm² |
| Outer insulation | rubber, black |
| Length | 0.2 m |
| Connection length | 0.1m |
| Characteristics | water, oil, UV and ozone resistant |
| Connector | M, in PA6.6, blue |
Thorne & Derrick, Experts in Equipment for Explosive Atmospheres, are the Exclusive Channel Partner for StuvEx static earthing, grounding and bonding products in the UK including ATEX and IECEx certified systems, clamps, cables and connectors.
Static Earthing, Grounding & Bonding Systems
For Hazardous Areas zone 1 (21) & Zone 2 (22) | ATEX Certified
Product Overview
Should you require any customer support or service to enable the selection or specification of the correct Static Earthing Systems for use in explosive atmosphere locations in the hazardous area industries please do not hesitate to contact us.
StuvEx are an international manufacturer of a complete range of Static Earthing, Grounding & Bonding Solutions with ATEX & IECEx Certification for use in hazardous areas; this includes static bonding, grounding and earthing clamps, cables and reels for the safe control of electrostatic hazards and risks in Zone 1 / Zone 2 (Flammable Gas) and Zone 21 / Zone 22 (Combustible Dust) locations.
 |
 |
 |
| Static Grounding System For Tank Trucks – StuvEx Safe-Ground TES01-V2 | Multipoint Earthing Control System – StuvEx Safe-Ground MGS01 | Earthing & Bonding Systems Test Device – StuvEx Safe-Ground ReConn01 |
 |
 |
 |
| ATEX Stainless Steel Earthing Clamp – StuvEx Safe-Ground CMS1 | ATEX Cable Reel – StuvEx Safe-Ground CR1/65 | ATEX Spiral Earthing & Grounding Cables – StuvEx Safe-Ground SP1 |
ATEX Stainless Steel Earthing Clamp StuvEx Safe-Ground CMS1 – Data Sheet
