RETTBOX®S Plug & Socket 20 A / 32 A

RETTBOX®S Plug & Socket

Industrial Socket-Outlet 20 A / 32 A

The RETTBOX® range provides an ideal solution for power and compressed air supplies to light goods, fire and rescue vehicles, offering automatic ejection of the coupler socket upon starting the vehicle.

RETTBOX® S is the brand new device of the RETTBOX® range by MARECHAL® ELECTRIC. The best-in-class industrial socket-outlet with automatic self-ejection providing power to all equipment on-board a vehicle.

MARECHAL® is synonymous with innovation. All their solutions are patented to guarantee safety for end-users (self-ejection, ingress protection, weather and temperature resistance, high-quality materials, protection from live parts IP2X/IPXXB).

RETTBOX® S 20 A / 32 A

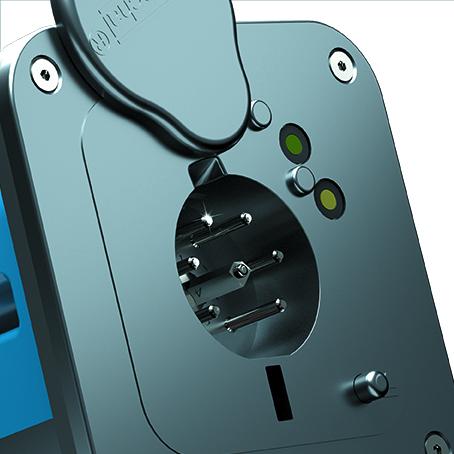

MARECHAL® connectors have spring-loaded contacts with silver-nickel tips. This ensures exceptional connection quality and eliminates wear and tear from arc flash and repeated
operations over time, typically seen in pin and sleeve technology. Silver, even when oxidised, guarantees optimal conductivity. Contact quality is maintained even in the presence of vibrations and temperature changes, thanks to the tight pressure of the spring-loaded contacts.

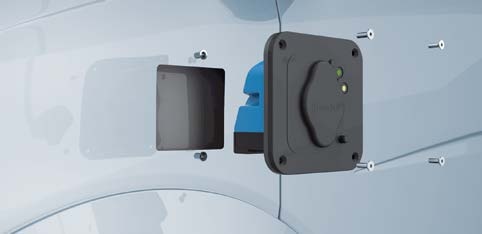

The system comprises a flush-mounted glass-reinforced thermoplastic box recessed into the vehicle body frame. The system includes a sliding cover as well as a MARECHAL® plug and socket device with silver-nickel butt contacts.

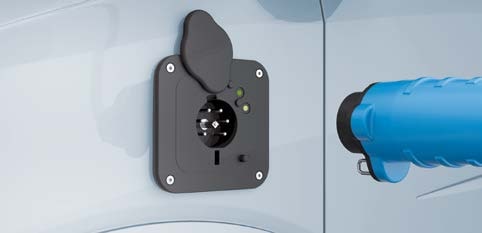

When the vehicle is starting up, an electric lifting magnet sends an impulse to the trigger hook of the socket which is automatically ejected.

RETTBOX® S (from 20 A to 32 A) offers load-breaking capacity and automatic ejection upon start-up of the vehicle. It is also available with air, to power the pneumatic equipment when the vehicle is stopped, particularly the brake system.

RETTBOX® S

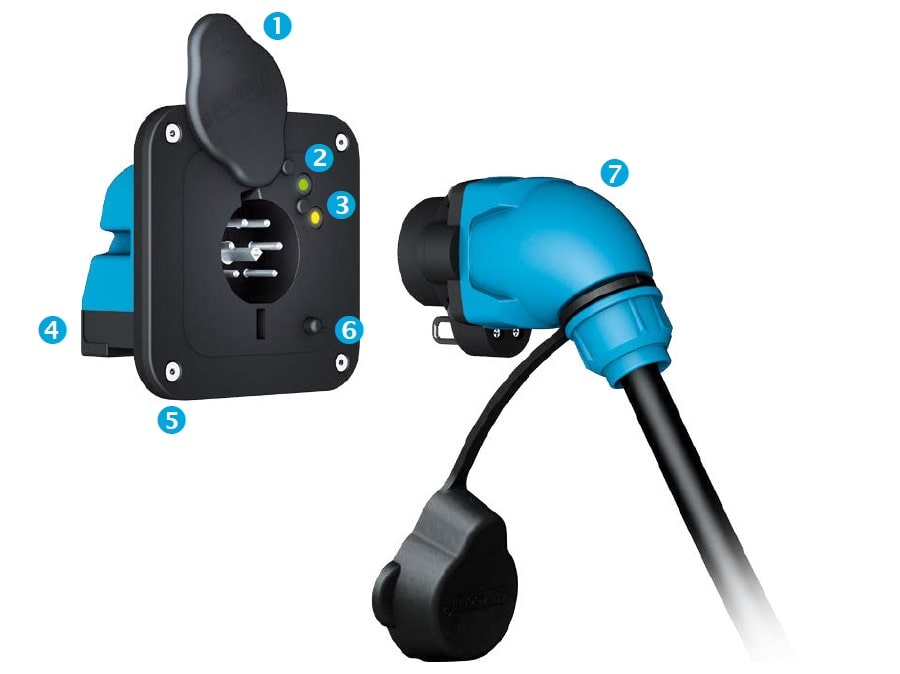

RETTBOX ® S Product Diagram

Swivel-lid
A voltage presence green LED supplied as standard
An optional yellow LED which indicates that the battery is charging
12 V/24 V solenoid coil used to eject the socket-outlet upon starting of the vehicle
Reinforced thermoplastics box with 7 contacts
Manual ejection push button
Reinforced thermoplastics mobile socket-outlet with cap

RETTBOX® S Product Diagram

A Unique Solution With Multiple Benefits

INSTANT AUTOMATIC EJECTION
Without any manual intervention
IP54 INGRESS PROTECTION
Resistance to alI weather conditions as well as routine vehicle washing
DRASTIC TIME-SAVING
Fast connection/disconnection
VOLTAGE PRESENCE LIGHT INDICATORS
LED lights indicate if the charger and the battery are powered
USER-FRIENDLY DEVICE

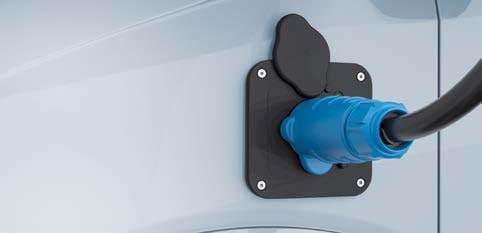

Easy connection with one hand only
SHOCK IMPACT RESISTANCE
IK08 mechanical protection rating
POSSIBLE MANUAL EJECTION
Simple press of the external push button

Technical Features

A compact design
Visual LED indicators for voltage presence or battery charging
Easy to use and easy to install device
Safety is ensured thanks to quick ejection of the mobile plug and an IP2X rating avoiding access to live parts
Protection of equipment and operators thanks to IP54 watertightness
Rounded corners to avoid impact damage or injury
The product is available with or without compressed air feeding duct

SAFE RETTBOX® S was engineered to provide a better choice for self-ejection. LED indicators make it easy to monitor voltage presence and charging status.
	SIMPLE RETTBOX® S user-friendly design ensures robustness, performance, and ease of installation. Our goal is to simplify the work of end-users, contractors, and vehicle body converters.
SMART RETTBOX® S was engineered to provide a better choice for self-ejection. LED indicators make it easy to monitor voltage presence and charging status.

RETTBOX® S Installation, Use & Maintenance

Time & Cost Saving:

Easy mounting for contractors: cutting vehicle body, fastening threaded inserts, wiring and fixing the enclosure;
User-friendly, connection with one hand only

Space Saving:

Reduced internal volume
Thin mounted plate on the vehicle body (16 mm)

Possible Configurations

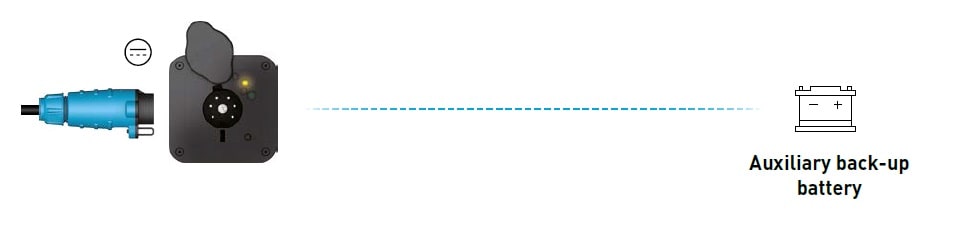

WITH AN EXTERNAL CHARGER – POWER SUPPLY WITH 12 V DC OR 24 V DC

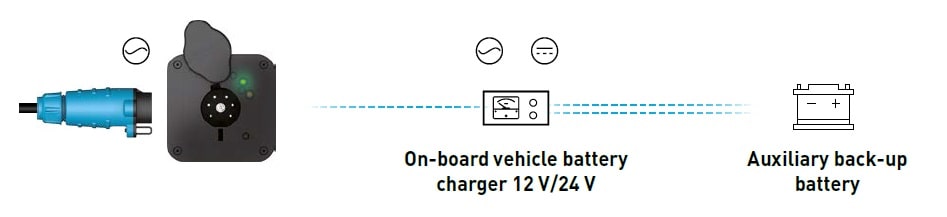

WITH AN ON-BOARD VEHICLE CHARGER – UP TO 480 V AC POWER SUPPLY

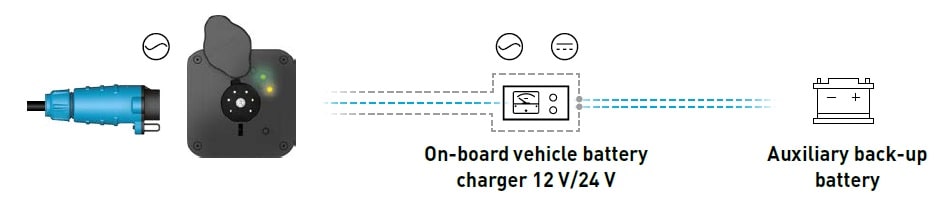

OPTION – A yellow LED battery charging indicator light

Marechal

Thorne & Derrick, Experts in Equipment for Explosive Atmospheres, are Specialist Distributors of Marechal plugs & sockets in the UK including ATEX and IECEx certified decontactors for LV electrical power distribution.

The range of Marechal plugs and sockets are available in a range of current ratings, switching capabilities, voltage supply and hazardous area certifications (according to ATEX & IECEx) for safe use in potentially explosive atmospheres – this includes Zone 1 & Zone 2 (Gas) and Zone 21 & Zone 22 (Dusts).
