Marechal RETTBOX Plugs 20A & 32A Decontactors

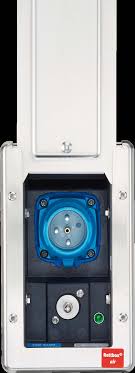

Marechal RETTBOX plugs and sockets are battery charging connector systems for use with emergency rescue vehicles.
They have an electromagnetic self-eject system comprising of a coupler socket and an inlet mounted in a recessed box within the vehicle which contains the connector.
When stationary, a mobile inlet supplies power inside the box and on ignition, a solenoid plunger automatically lifts the socket release latch, ejecting the plug from the inlet.
The RETTBOX decontactor is available for power supply with a secure/automatic ejection as standard or the RETTBOX-Air power supply with compressed air supply up to 13 bar.
Marechal RETTBOX Plugs – Technical Features
- 20 A or 32 A
- Efficiency and quick use
- Safety ensured with the self-eject system
- Flexibility of settings
- Safety for personnel and goods in case of sprayed water thanks to IP65 watertightness
- AISI 316L stainless steel housing with electromagnetic coil (12V DC-24V DC)
- 5 pin connector for anti-start function
- Voltage presence indicator
- Plug and socket use silver-nickel butt contacts with metal braids complying with EN 60309-1
Marechal RETTBOX Plugs – Main Features
|Type||RETTBOX 20A||RETTBOX-Air 20A||RETTBOX 32A||RETTBOX-Air 32A|
|Box||Glassfiber Reinforced Polyamide||Stainless Steel|
|Protection Mode (Trapdoor Closed)||IP55|
|Self-Closing Coupler Socket||IP55|
|Front Dimensions (LxH)||114mm x 184mm||132mm x 188mm|
|Cut-Out Dimensions On Vehicle’s Frame (LxHxP)||83mm x 163mm x 94mm||103mm x 173mm x 145mm|
|Coupler Socket Cable Supplied||4m||4m*||4m||4m*|
|Auxiliary Contacts (Optional)||2 Aux||No||3 Aux||3 Aux|
|Weight (Excluding Coupler Socket)||1,200g||3,200g|
|Compressed Air Duct||No||Up to 13 Bars||No||Up to 13 Bars|
*With duct for compressed air.
Install & Operation Guidelines
- Disassemble the installation frame by removing the 4 hexagonal screws. This frame is used as a master plate (figure F1).
- Place the frame with the flat side against the surface of the vehicle and mark the interior contour and the 6 small fixing holes (figure F2).
- Cut out an area approximately 1 mm to 2 mm outside the marked area. The 6 fixing holes must be drilled with a diameter of 3.3 mm.
- Assemble the installation frame and the gasket on the vehicle, by means of the supplied 6 3.2 x 8 mm blind rivets (figure F3).
- Insert the box with the gasket into installation frame, push it firmly in and screw it to the frame from the inside, using the 4 hexagonal screws, through the oblong screw-holes (figure F1).
Wiring (See table T2.)
(RETTBOX / RETTBOX-Air 20 A only)
- The RETTBOX / RETTBOX-Air are normally delivered in pre-wired condition. If the RETTBOX /RETTBOX-Air’s are not pre-wired, proceed as follows:
- Remove the rear cover by removing the 4 Torx screws (figure F4);
- Introduce the wires for the on-board power supply and the lifting magnet supply through the cable glands at the rear or at the bottom of the box. For the RETTBOX -Air, also introduce the compressed air supply pipe;
- Disassemble the vehicle inlet from the equipment plate and wire the conductors to their respective terminals. Reassemble the vehicle inlet in its original orientation;
- (RETTBOX-Air) Connect the compressed air pipe;
- Wire the lifting magnet with conductors of at least 1.5 mm² cross-section;
- Reassemble the rear cover on the box and fix it in place by using the 4 Torx screws;
- Tighten manually the cable glands.
- Only devices with compatible contact configurations and electrical ratings will mate with each other.
- Lift RETTBOX / RETTBOX -Air sliding cover and keep it up (figure F5);
- Open connector cover, hinge at the top, and insert it over the vehicle inlet until it latches. The vehicle is powered (figure 6);
- When the engine is started, the connector is ejected from the vehicle inlet and the sliding lid closes automatically. The vehicle can drive away in complete safety;
- Adjust the length of the supply flexible cord to prevent the connector from falling onto the floor when ejected.
