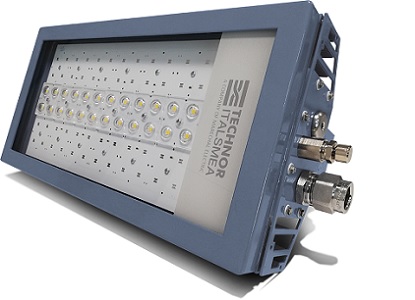

TL2 LED Lighting Fixture
Features & Benefits
-
The highest luminous efficiency: up to 164 lm/W
-
Excellent LED lumen maintenance: L90 (according to IES LM-80-08)
-
Up to 100.000 hours maintenance-free operation;
-
Overvoltage protection system;
-
LED lifetime-saving technology;
- Flicker free
- Dimmerable
- Operating temperature: -50°C to + 55°C
- High resistance to corrosion
- Maintenance free
This series has been designed to satisfy a dual purpose:
Furthermore, the product can operate in extreme temperature (-50°C to +55°C) and has a high resistance to corrosion.
Lighting Compliant With:
- IEC/TR 62778: Application of IEC 62471 for the assessment of blue light hazard to light sources and luminaires;
- EN 61000-3-2: Electromagnetic Compatibility (EMC) Limits for harmonic current emissions;
- EN 61000-3-3: Electromagnetic Compatibility (EMC) Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems;
- EN 61547: Equipment for general light
EX-CERTIFIED SOLUTION
Suitable for Hazarodus Area Zone 2, 21, 22
- Execution: II 2 D Ex tb IIIC T105°C Db
- II 3 G Ex nR IIC T4 Gc
- II 3 D Ex tc IIIC T105°C Dc
- Degree of protection: IP66
TL2 Series Efficiency
| W | Lm | N°LED|mA | Lm/W | Dim. |
| 35 | 5640 | 16|350 | 161 | 430x216x105 mm |
| 79 | 12940 | 40|320 | 164 | 430x216x105 mm |
| 114 | 16120 | 24|700 | 141 | 430x216x105 mm |
| 172 | 25110 | 40|650 | 146 | 750x216x105 mm |
| 344 | 50220 | (40|650)*2 | 146 | 750x432x105 mm |

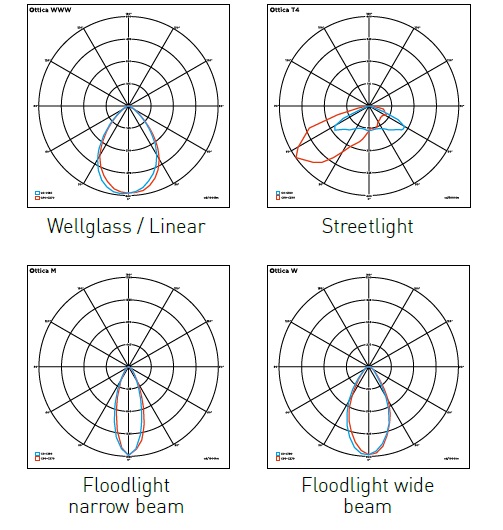

4 Available Optics
In order to fully satisfy all specific customers’ requirements and application needs, Technor TL2 series is available in single or double module and in a wide range of optical solutions:
Thanks to LED technology, TL2 series delivers:
- Safety for people and the environment, reducing carbon footprint
- Efficiency granted from energy-saving and long-lasting lamps
- High luminous performances to facilitate working conditions
Accessories on request:
- PNA-1M20 Brass NiCr cable gland: single seal for armoured cable;
- Gasket set;
- Seal gasket: suitable for M20 cable glands
