ATEX Doors - High Speed Roll-up Doors

ATEX Doors – High Speed Roll-up Doors for Explosive Atmospheres

ATEX Doors

High Speed Roll-up Doors for Hazardous Areas & Explosive Atmospheres

Thorne and Derrick are the Exclusive UK Distribution Partner for Dynaco ATEX doors – this range of doors, certified according to the ATEX Directive, are high speed and roll-up design. The doors provide a unique safety solution for clients who need to maintain or improve workflow in hazardous area locations and explosive atmospheres.

The doors are ATEX Certified & Compliant and reduce room heat loss, energy consumptions and carbon footprint.ATEX Doors

ATEX doors manufactured by Dynaco are suitable for Zone 1 & Zone 2 (Gas) and Zone 21 & Zone 22 (Dust) hazardous areas and explosive atmospheres.

Dynaco S-5 ATEX door range conforms to the ATEX Directive 2014/34/EU and is the only high speed roll up door which is product certified by a 3rd party notified body. Using ATEX high speed doors helps to improve workflow reducing operating costs. They also help to reduce heat loss creating substantial energy savings whilst improving ambient working conditions for employees.

The Dynaco S-5 ATEX door assures maximum safety with all materials suitable for explosive atmospheres and 3rd party certification for the complete product.

Tutorial | Specifying Compliant ATEX Doors for Hazardous Areas & Explosive Atmospheres


ATEX Doors

ATEX Doors from Thorne & Derrick | Leaders in ATEX Innovation | Saving Energy & Reducing Carbon Footprint

Features of ATEX Doors

  • Energy savings
  • Improved working conditions in the explosive atmosphere industries
  • Uninterrupted workflow – self-reinserting block, self-reinserting curtain with unique zipper and no downtime in case of accidental hit
  • Reduced risk of contamination
  • Smooth continuous operating conditions using unique push-pull technology, frequent driven motor and encoder meaning the door always stops in the right position
  • Increased safety of people and products due to no rigid elements, flexible curtains and easy to install doors
  • Pre-assembled with a door unique certificate and inspected by external notified body
  • Reduced ATEX related costs attributed to partitioning possibilities
ATEX Doors

The Market-Leading Certified & Compliant ATEX Door by Dynaco

Innovative High Speed Doors For Maximum Safety & Efficiency

Energy Savings

Dynaco ATEX doors conserve energy in two crucial ways. Firstly, the unique push-pull design provides the shortest door opening time in the industry. Fast cycle times significantly reduces the transfer of conditioned air. Additionally, Dynaco incorporates patented seal technology which provides the tightest seal possible around the full perimeter of the door.

Ask us to calculate your temperature losses and confirm the expected annual energy savings by installing high speed doors. Should you be interested to receive a FREE ROI REPORT to assess the energy efficiency impact Dynaco doors could have on your facility please contact us.Hazardous Area Doors ATEX Certified

Cost Savings

High speed roll up doors are provided with a patented re-insertion system. When dislodged, the curtain automatically returns into its side guides, without the need of intervention. This way, you can avoid costly downtime and time-consuming technical interventions.

Durability

Dynaco doors contain very limited wearing parts. The strong and flexible curtain is very resistant to service life degradation. Dynaco ATEX doors can operate during hundreds of thousands of opening cycles. Investing in a Dynaco door will ease your life for a very long time.

High Efficiency

Dynaco offers a wide range of opening commands. Automatic opening and closing results in considerable time savings and improves the efficiency of your daily operations.

Extreme Safety

Free of rigid components, Dynaco’s soft, flexible curtain cannot injure an unprotected person who accidentally impacts the door. The soft curtain also presents no risk to an unsuspecting person on the opposite side of an impacted door.

PartiTIoning of Hazardous Area Zones

ATEX zones require specific explosion proof equipment, extra safety measures, special certifications and regular inspection and maintenance. Partitioning such ATEX designated areas to reduce the zoned surface area helps to reduce both capital and operating expenditure. Where users still need to maintain good workflow, such as the transportation of bulk materials, the Dynaco S-5 ATEX door provides the solution. The ATEX high speed roll up doors have a reduced footprint requiring little space and all are supplied with an official 3rd party certificate to ensure site compliance with ATEX.

Hazardous Area Zones

Partioning & Segration of Hazardous Area Zones | Reducing Capital Expenditure & Operating Costs

Uninterrupted workflow thanks to self-reinserting curtain with unique zipper

The doors provide uninterrupted workflow due to a self-reinserting curtain with unique zipper. Unlike rigid doors, the Dynaco ATEX door has a fully flexible curtain, uses patented push pull technology and is self-reinserting. This means there are no expensive repairs or downtime resultant from unintended and accidental forklift impact damage.

Accident Forgiving & Self Reinserting

ATEX Doors – Technical Features

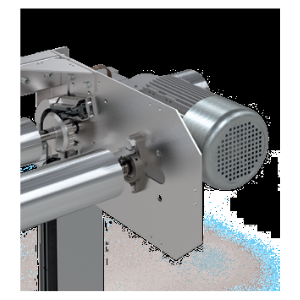

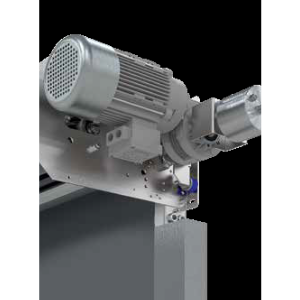

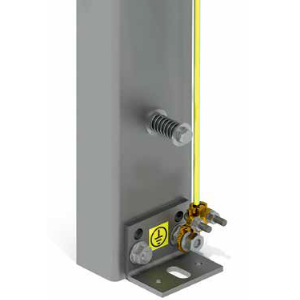

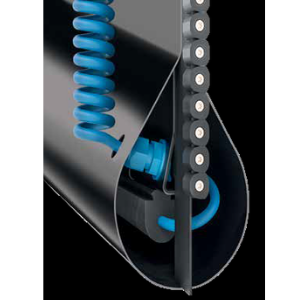

Edge detection via intrinsic safety barrierStandard earthing kitATEX motor, gearbox and encoder
ATEX Doors ATEX Doors ATEX Doors

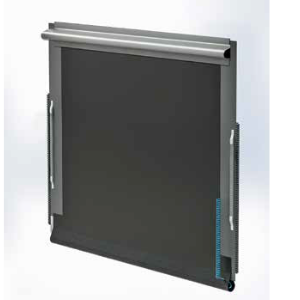

Complete structure in stainless steelAll synthetic parts in antistatic materialSide reinforcement
ATEX Doors ATEX Doors ATEX Doors

Antistatic Materials

· All non-metallic door parts with a surface larger than 20cm² are replaced by antistatic or conductive materials

· Bottom edge detector and photocells are protected via an intrinsically safe barrier (Ex i)

· Includes complete door curtain and pulley in antistatic material

ATEX Doors Product Overview

The Dynaco range of High Speed Roll-up Doors include options for interior and exterior applications for use in explosive gas and dust atmospheres. An overview and certification details can be found below. Refer to individual door product pages for full specification details.

Zone 1 & 21 ATEX Door – All Weather
Zone 1 & 21 ATEX Door – Power
Zone 1 & 21 ATEX Door – Compact
ATEX Door S-559 ATEX Door S-549 ATEX Door S-539

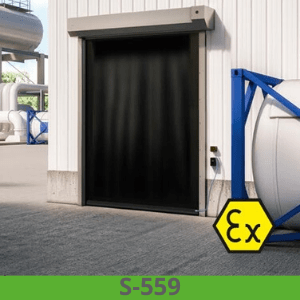

S-559 is suitable for use in Zone 1 and Zone 21 explosive atmospheres and is specifically designed for outdoor use. The ATEX door is wind resistant up to wind load class 5.S-549 is suitable for use in Zone 1 & Zone 21 explosive atmospheres. The ATEX door is designed for outdoor use and is wind resistant up to wind load class 4.S-539 is suitable for use in Zone 1 & Zone 21 explosive atmospheres and is specifically designed for hazardous area indoor applications.
  • Ex II 2 G/D
  • Ex h T4 135°C
  • Ex db ia e IIC T4 EPL Gb
  • Ex tb ia IIIB 135°C EPL Db
  • Ex II 2 G/D
  • Ex h T4 135°C
  • Ex db ia e IIC T4 EPL Gb
  • Ex tb ia IIIB 135°C EPL Db
  • CE 0029   APRAGAZ 17 ATEX 0157 X
  • Ex II 2 G/D
  • Ex h T4 135°C
  • Ex db ia e IIC T4 EPL Gb
  • Ex tb ia IIIB 135°C EPL Db
  • CE 0029   APRAGAZ 17 ATEX 0157 X
Zone 2 & 22 ATEX Door – All Weather
Zone 2 & 22 – ATEX Door – Power
Zone 2 & 22 – ATEX Door – Compact
ATEX Door S-555 ATEX Door S-545 ATEX Door S-535

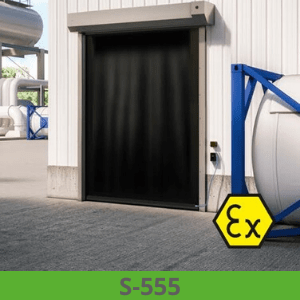

S-555 is suitable for use in Zone 2 & 22 explosive atmospheres and is specifically designed for outdoor use. The ATEX door is wind resistant up to wind load class 5.

  • EX II 3 G/D
  • Ex h IIC T6 EPL Gb
  • Ex h IIIC 85°C EPL Db
  • Ex db mc ia e IIC T4 EPL Gc
  • Ex tb mc tD IIIB 135°C EPL Dc
  • CE 0029   APRAGAZ 16ATEX 0150X/1

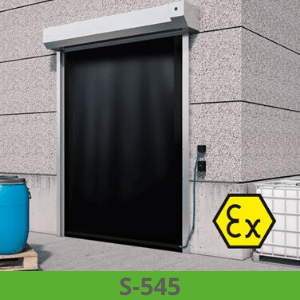

S-545 is suitable for use in Zone 2 & 22 explosive atmospheres. The ATEX door is designed for outdoor use and is wind resistant up to wind load class 4.

  • EX II 3 G/D
  • Ex h IIC T6 EPL Gb
  • Ex h IIIC 85°C EPL Db
  • Ex db mc ia e IIC T4 EPL Gc
  • Ex tb mc tD IIIB 135°C EPL Dc
  • CE 0029   APRAGAZ 16ATEX 0150X/1

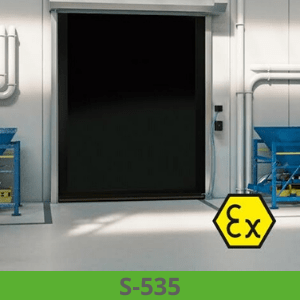

S-535 is suitable for Zone 2 & Zone 22 explosive atmospheres and is specifically designed for hazardous area indoor applications.

  • EX II 3 G/D
  • Ex h IIC T6 EPL Gb
  • Ex h IIIC 85°C EPL Db
  • Ex db mc ia e IIC T4 EPL Gc
  • Ex tb mc tD IIIB 135°C EPL Dc
  • CE 0029   APRAGAZ 16ATEX 0150X/1

Dynaco ATEX Doors

Dynaco are part of the Entrematic group who are one of the world’s leading manufacturers of entrance automation equipment. Dynaco specialise in high performing industrial flexible doors. Since 1987, from their facility in Belgium, Dynaco have supplied over 170,000 doors worldwide. Their reputation for innovation, quality and reliability is second to none and today they produce over 15,000 doors per year.
