Marechal EVO The First Separable, Switch-Disconnector

MARECHAL EVO

A Separable Switch & Disconnector

Marechal Electric is at the heart of innovation with the invention of the first switch disconnector up to 40A and first separable switch disconnector. The uniquely and ergonomically designed Marechal EVO combines three products in one – switch, disconnector and plug offering greater safety, easier use and less space for installation.

Thanks to the innovative « Twist & Switch » design, EVO offers a positive break indication that reflects the exact position of the contacts. Also referred to EVO40 (40A) is a detachable switch disconnector with rotary manual control from 2 to 6 poles.

Compliant with IEC/EN 60947-1 and 60947-3 standards, EVO40 allows for frequent making and breaking on load, while ensuring safe isolation of any low voltage electrical circuit:
resistive (AC-21A), mixed resistive/inductive (AC-22A) or inductive (AC-23A). EVO40 also allows for on load making & breaking of all electric motors (AC-3), as per IEC/EN 60943-3 standard requirements.

Equipped with self-cleaning silver alloy contact tips and a unique and patented mechanism, our new technological concept combines the functionalities of a switch and an isolator.
The design facilitates successive double breaking pole by pole, which ensures optimal safety during any maintenance operation.

Once the supply and load parts have been separated, a safety shutter prevents any risk of electric shock (IP4X/IPXXD). The robust mechanism allows distinctly and visibly
separated disconnection and separation even in the event of overload currents.

Below describes the features and benefits of Marechal’s new twist and switch technology.

Marechal EVO | The First Separable Switch-Disconnector

DISCONNECTOR, SWITCH, PLUG

Marechal EVO is created mainly to enhance the safety for user and installations. Its flawless design enables the opening and separation, even if there is an overintensity or overvoltage default. Nowdays, with a typical switch-disconnector, in case of overintensity, you can’t be guaranteed of the disconnection if the contacts melt. With EVO, the division is apparent as the product is split into in two parts.

EVO

TWIST AND SWITCH, SEPARATE

The industry has a new safety reflex thanks to its rotary twist: lining up both “O” and placing simultaneously the two parts of the switch disconnector without any powering. Twisting the EVO into the “OFF” position means it is prepared for connection without any power running through it.

The main benefit of the EVO in this position is to have a waterproof product without power.

Twist once more to place the product into the “ON” position meaning the EVO is powered but still watertight.

​EVO offers a positive break indication that reflects the exact position of the contacts.

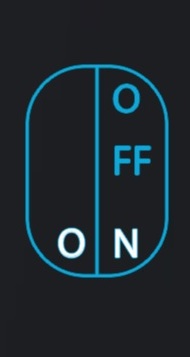

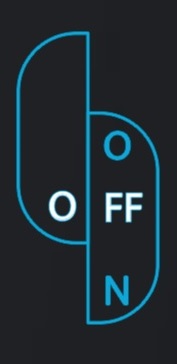

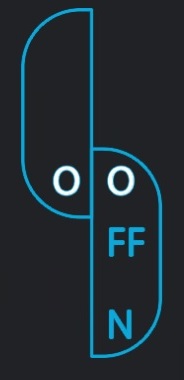

Mating Position	OFF position IP66/IP67, padlockable	ON position IP66/IP67 lockable

Marechal EVO – First Detachable Switch-Disconnector

Suitable for arduous environments with an operating temperature of between -25°C to +60°C as the separation shows the exact position of the contacts and promises 100% safety during any maintenance operation.

The design of the EVO provides greater flexibility and suitability in the most challenging applications in terms of hygiene, robustness and reliability.

The switch disconnector manufactured by Marechal can be used in all industries as it is very easy to install: only one tool is needed!  Using a screwdriver the installer can easily put the switch isolator in the correct place.

EVO40 SEPARABLE SWITCH DISCONNECTOR

The unique technology incorporates functionalities of a 40A switch, a disconnector and an industrial connector available with self-cleaning silver contacts with silver tips and bespoke “twist” mechanism.

Merging three products into one streamlines your electrical installation and the ergonomic design makes managing and cleaning simpler. The product is watertight (IP66 / IP67), in the ON and OFF positions.

Safety is Marechal’s main priority when it comes to the EVO40. A visible and detachable break ensures the safe isolation of any low electrical circuit (AC-23 18.5 kW, AC-3 11 kW).

EVO40 complies with the IEC 60204-1 standard for machine safety and the switch disconnector is adapted for all motor plugging configuration up to 6 poles + earth.

A strong and durable switch that can be installed on a wall or in-line for mobile installations and can be lockable and padlockable in ON and OFF positions.

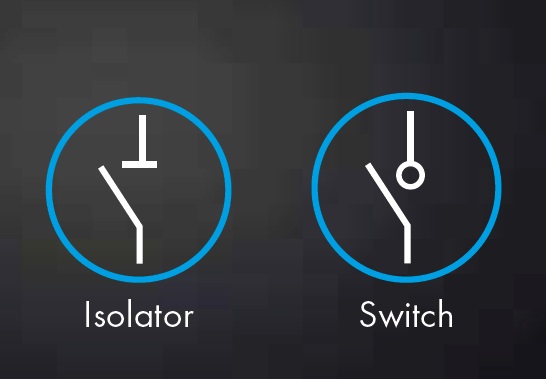

ISOLATOR

• Function: electrical disconnection of the circuit
• Two position (open/closed)
• IEC 60947-3 compliance
• Resistance to short-circuit current
• Padlockable
• Manual control
• Clearly visible isolation

SWITCH

• Function: connect, carry and break the current
• IEC 60947-3 compliance
• AC-3 on load breaking
• Mechanical and electrical endurance
• Padlockable

Marechal EVO

Features & Benefits

• 1 switch + 1 isolator + 1 socket outlet – Simplification and economy
• Smooth crevice free design, no visible fixing screws – Easy to clean
• Positive, clearly visible and detachable breaking – 100% assured safety
• No access to live parts – User safety and compliance with standards
• Disconnection speed independent of operator use – Easy to use
• Up to 6 poles + earth – Ability to connect power and/or control signals
• Automatic IP66/IP67 sealing in ON and OFF positions – Suitable for harsh industrial environments
• Suitable for frequent switching of mixed resistive and inductive circuits
• 3 possible installations – In line coupler, on an enclosure & a wall box

EVO Technical Specification

Mechanical Endurance	> 10,000 cycles
Electrical Endurance	1500 cycles
Ui: Rated Insulation Voltage	1000 V AC/1500 V DC
Ith: Conventional Thermal Current in Free Air	40 A
Uimp: Rated Impulse Withstand Voltage	8 kV
AC-23A – 400 V AC	18.5 kW
AC-3 – 690 V AC	11 kW
Irms: Peak-to-Peak Current with Fuses (kA)	10 kA
Icm: Rated short-time making capacity (kA peak)	1 kA
Cable Cross-Section Cu (sqmm)	2.5 – 10 sqmm flexible
	2.5 – 16 sqmm stranded
Degree of Protection (IEC 60529)	IP66/IP67
Shock Resistance (IEC62262)	IK09
Ambient Air Temperature	– 25ºC / + 60ºC

Marechal EVO40 Part Numbers

Voltage	Poles	Outlet	Inlet	Straight Sleeve	70º Inclined Sleeve	Handle	90º Wall Box
200-250 V AC	2P+E	8144032	8148032	51LM0	51LM7	51LP0D21(2)	51LC9000
	3P+E	8144033	8148033
	4P+E	8144034	8148034
	6P+E	8144036	8148036
380-480 V AC	2P+E	8144012	8148012	51LM0	51LM7	51LP0D21(2)	51LC9000
	3P+E	8144013	8148013
	4P+E	8144014	8148014
	6P+E	8144016	8148016
500-690 V AC	2P+E	8144052	8148052	51LM0	51LM7	51LP0D21(2)	51LC9000
	3P+E	8144053	8148053
	4P+E	8144054	8148054
	6P+E	8144056	8148056
Other Voltages	2P+E	8144122	8148122	51LM0	51LM7	51LP0D21(2)	51LC9000
	3P+E	8144123	8148123
	4P+E	8144124	8148124
	6P+E	8144126	8148126

(1) Without thread, entry upwards. Reversible at 50° with downward entry.
(2) Gland size 5-21 mm.

Compliance With IEC Standards

• IEC/EN 60947-3/-4/-5 – Low voltage switchgear and control gear: Switches, disconnectors, switch-disconnectors and fuse-combination units
• IEC/EN 60309-1/-4 – Plugs, socket outlets and couplers for industrial purposes
• IEC/EN 61984 – Plugs, socket-outlets and couplers for industrial purposes
• European Directive 2006/42/CE, ISO12100, IEC/EN60204-1 – Safety for machines and applications

➡ Thorne & Derrick supply the full product offering of Marechal switches, plugs and sockets. They are available in a range of current ratings, switching capabilities, voltage supply and for safe & hazardous areas (according to ATEX & IECEx) for safe use in potentially explosive atmospheres. Including oil, gas and petrochem industries with hazardous area Zones 1 & 2 (Gas) and Zones 21 & 22 (Dust).

Industrial Power Plugs – Marechal Decontactors with 16A to 700A current ratings and 1,000 volt power supply.

Hazardous Area Plugs & Sockets – ATEX certified for explosive atmospheres Zone 1 & Zone 2 (Gas) and Zone 21 & Zone 22 (Dust).

---
