Appleton FDLED is part of the Zone 1 & Zone 2 (21/22) hazardous area LED luminaire ATEX lighting range that are specifically designed for simple installation and maintenance.

The Appleton FDLED range of light fittings provides flameproof protection in hazardous areas for locations where a high degree of corrosion resistance is required.

The ATX™ FDLED Series Flameproof Luminaires are available in numerous with three lumen outputs and two voltage options suitable for almost any hazardous and industrial environments – providing hazardous area lighting with savings on installation, maintenance and energy costs due to the compact and efficient design.

The ATEX & IECEx certified LED luminaires are suitable for use lighting indoor or outdoors where protection against dirt, water and moisture is essential. Typical applications include oil refineries, petrochemical facilities, pulp and paper mills, food processing plants, oil refineries, warehouses, underground tunnels and general manufacturing facilities.

Appleton FDLED light fittings are also suitable for explosive atmosphere areas where there is a high degree of corrosion resistance required and where flammable gases, vapors and dusts are present – this includes onshore and offshore Zone 1 & 2 Flammable Gas and Zone 21 & 22 (Combustible Dust) explosive atmospheres.

Flameproof LED Lighting For Hazardous Areas – Appleton FDLED

Features & Benefits

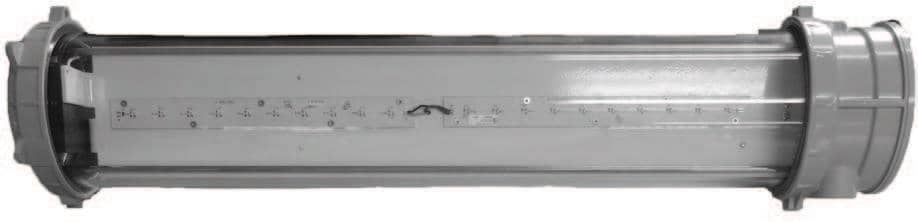

• Appleton ATX FLED light fittings are impact resistant borosilicate glass sealed tube
• Easy access to LED array through gray painted aluminum threaded entry cap
• Supplied with O-ring for improved ingress protection
• Corrosion-resistant gray painted aluminum
• Luminaire (or light fitting) supplied with energy efficient electronic driver on a removable gear tray
• Lighting supplied with external and internal ground/earth connection
• Fixture supplied with one M20 blanking plug
• Easy connection to wire and disconnect with plug-in terminal blocks in hazardous areas

Zone 1 Zone 2 (21/22) Hazardous Area LED Luminaire Lighting ATEX

Appleton FDLED

Technical Data

Lumen Output	Type	P	Ie	Hazardous Area Classification Gas group	Ambient  Temperature °C	Class of Temperature	Surface Temperature
400 Im	LED	6 Watts	0.03 A	IIC	-30°C to + 60°C	T6	75°C
2400 lm	LED	23 Watts	0.21 A	IIB+H2	-30°C to + 60°C	T6	80°C
4725 lm	LED	46 Watts	0.42 A	IIB	-30°C to + 60°C	T6	80°C

➡ Lumens to Watts | 400 lumens is 6 W fluorescent, 2400 lumens is 23 W fluorescent, 4725 lumens is 46 W fluorescent

Led Power (lm)	Voltage	Cable Entry	Weight kg	Volume dm³	Appleton Catalog Number
400 Im	48/110/220V DC 230V – 50 Hz AC	M20	7.8	36.0	ATX FDLED04AD2
2400 lm	110V to 254V, 50/60 Hz	M20	8.1	37.1	ATX FDELD25BU2
4725 lm	110V to 254V 50/60 Hz	M20	9.0	58.0	ATX FDELED50BU2





ATEX/IECEx Certifications for hazardous areas

The Appleton ATEX range of light fittings are certified according to international lighting classifications and approvals including ATEX & IECEx according to the following types of explosion protection and codes:

• Zone 1 and 2 (Gas) – Zone 21 and 22 (Dust)
  – ex II2GD
  – Ex d IIB (4725 lm version)
  – Ex d IIB+H2 (2400 lm version)
  – Ex d IIC (400 lm version)
  – IK09 (400 and 2400 lm version)
  – IK08 (4725 lm version)
  – IP66/68

IECEX

IECEX INE 15.0046X

ATEX

INERIS 15 ATEX 0042X

➡ Our Lighting Sales Team are trained and manufactured approved to provide technical support and lighting specification services covering Hazardous Area Zone or Category, Type of Explosion Protection, Gas Group, Temperature Class (T Class Rating) and Equipment Protection Level concepts.

---

Lighting Designs For Hazardous Areas

Upgrading Plant Legacy Lighting to LED

Thorne & Derrick International, based in the UK, are leading Stockists & Distributors of hazardous area lighting products utilising conventional light fittings and more powerful modern technology White-Light illumination using LED technology – from stock we provide competitive prices and technical support to enable the specification of explosive atmosphere lighting schemes compliant and certified to international standards including ATEX and IECEx.

Using latest software our FREE Lighting Design Service supports the upgrade from fluorescent to LED lighting focussed on maximised light output, optimised energy consumption with reliable and safe certification for explosion protection concepts in Zone 1 and Zone 2 hazardous area zones and workplaces.
