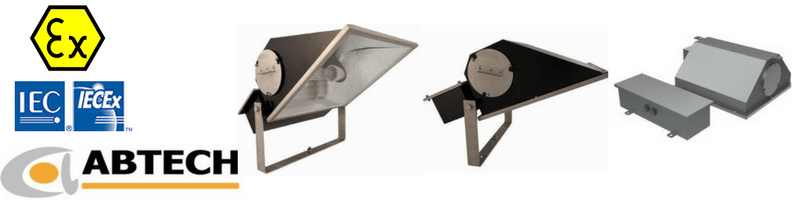

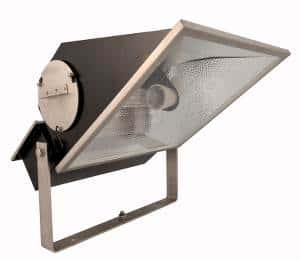

The Abtech Delta is an asymmetric floodlight designed for use in Zone 2 & Zone 22 hazardous areas. The Zone 2 hazardous area floodlight is manufactured in 316 grade stainless steel and protected to IP66/67, the Delta can cope with the most arduous of conditions.
The Delta has the benefit of a quick access cover for lamp replacement, reducing maintenance time. The Zone 2 floodlight also has the option of a remote control gear box providing increased flexibility for pole mounted applications.
Zone 2 Floodlight ATEX IECEx Hazardous Area Ex nR – Abtech Delta
Zone 2 Floodlight ATEX IECEx Hazardous Area Ex nR
Features
- Quick access lamp chamber reduces maintenance time and removes the need to open the cover
- Dark Sky asymmetric design reduces light pollution and glare
- Marine grade stainless steel construction
- Optional remote control gear box giving a weight saving for pole of mast mounting
- Pendant mounted version is also available
- The asymmetrical design reduces upward light spill and increase photometric effciency
| Luminaire Type | Zone 2 Asymmetric Floodlight |
| Ingress Protection | IP66/67 to EN60529 |
| Material | Stainless steel 316 grade housing with black epoxy power coat finish, toughened glass window, silicone gaskets and stainless steel fixings |
| Distribution/output | Asymmetric wide beam |
| Lamp Types | High Pressure Sodium, Metal Halide or Single Ended Tungsten Halogen |
| Lamp Cap | E40/GES |
| Lamp Change | Via quick access lamp cover on side of enclosure |
| Cable Entry | 2 x M20 clearance holes. Supplied with 1 x Ex plug and 1 x transit plug |
| Terminals | Looping terminal block for up to 6mm2 conductors |
| Control Gear | Copper and iron ballast, timed impulse ignitor, pfc capacitor |
| Orientation | Universal |
| Mounting | Via saddle bracket |
| Supply | 220 to 254V 50/60Hz ac |
Abtech Delta Zone 2 Lighting
Luminaire Ratings
| Abtech Product Reference | Lamp Type |
Lamp Cap |
Power (W) |
Temperature Rating* |
Ambient Temperature* |
Weight (kg) |
| LX2DELT150SH* | HPS/MBI | E40 | 150 | T4 | -40oC to +55oC | 17.0 |
| LX2DELT250SH* | HPS/MBI | E40 | 250 | T3 | -40oC to +55oC | 17.8 |
| LX2DELT400SH* | HPS/MBI | E40 | 400 | T3 | -40oC to +55oC | 19.0 |
| LX2DELT500T** | TH | E40 | 500 | T3 | -40oC to +40oC | 16.0 |
HAZARDOUS AREA CERTIFICATION
Abtech Delta floodlights are certified according to leading hazardous area classifications including:
- Area Classification Zone 2 & 22, Gas and Dust
- Type of Protection Ex nR (restricted breathing)
- Apparatus Coding Ex nR IIC T# Gc, Ex tc IIIC TºC Dc (refer to table to T rating and ambient)
- Certificate Number ATEX 10ATEX4333X / IECEx SIR 12.0039X
T&D, The Explosive Atmosphere Experts, provide a single-source capability for the most extensive range of Electrical, Mechanical, Process & Instrumentation Equipment suitable for hazardous area locations.

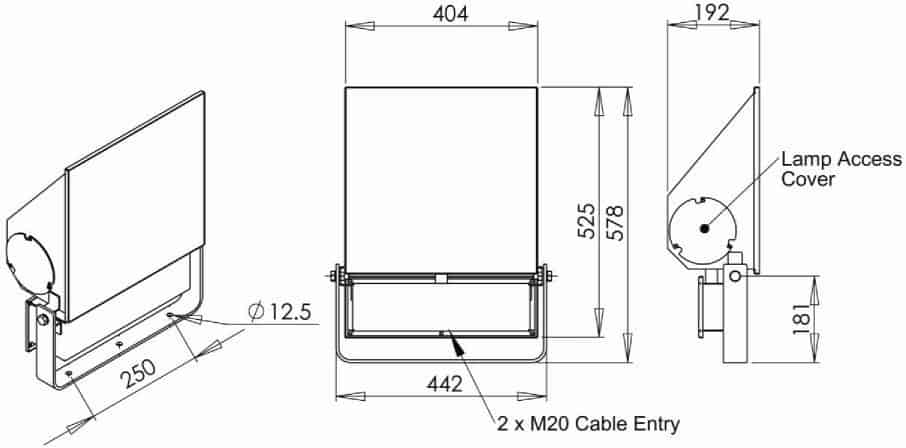

Zone 2 Floodlight Abtech Delta – Dimensions
Abtech Delta – Options
| M25 | M25 cable entries (other thread types available on request) |
| 60 | 60Hz ac dc operation |
| 110 | 110 – 130V operation |
| IO | Ignitor only (allows for remote mounting of control gear) |
| MR | Medium beam reflector |
Add the required suffix to the product reference.
Example: LX2DEL400SH60IO = Zone 2, 400W HPS/MH floodlight with 60Hz operation and remote control gear box
