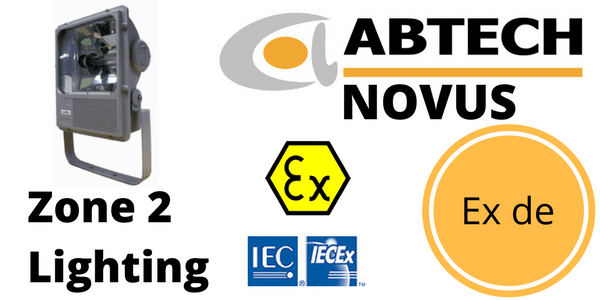

The Abtech Novus is a symmetric floodlight designed for use in Zone 2 and 22 hazardous areas. The Zone 2 hazardous area floodlight is manufactured in epoxy painted aluminium alloy and protected to IP66/67, the Novus can cope with the most arduous of conditions.

This compact floodlight features integral control gear and a timed ignitor. The NOVUS has the benefit of a quick access cover for lamp replacement, reducing maintenance time.

Zone 2 Floodlight ATEX IECEx Hazardous Area Ex nR – Abtech Novus

Zone 2 Floodlight ATEX IECEx Hazardous Area Ex nR – Abtech Novus

Zone 2 Floodlight ATEX IECEx Hazardous Area Ex nR

Features

  • Quick access lamp cover reduces maintenance time, no need to remove cover
  • Compact design with Internal control gear
  • Timed Ignitor supplied as standard
Luminaire TypeZone 2 Symmetric Floodlight
Ingress ProtectionIP66/67 to EN60529
MaterialEpoxy painted die cast marine grade Aluminium body, toughened glass window, silicone gaskets and stainless steel fixings
Distribution/outputParabolic (symmetric) wide beam
Lamp TypesHigh Pressure Sodium, Metal Halide or Single Ended Tungsten Halogen
Lamp CapE40/GES
Lamp ChangeVia quick access lamp cover on side of enclosure
Cable Entry2 x M25 clearance holes
TerminalsLooping terminal block for up to 4mm2 conductors
Control GearCopper and iron ballast, timed impulse ignitor, pfc capacitor
OrientationUniversal
MountingVia saddle bracket
Supply220 to 254V 50/60Hz ac

Abtech novus Zone 2 Lighting

Luminaire Ratings

Abtech Product ReferenceLamp
Type
Lamp
Cap
Power
(W)
Temperature
Rating*
Ambient
Temperature*
Weight
(kg)
LX2NOV150SH*HPS/MBIE40150T4-40ºC to 55ºC15.0
LX2NOV250SH*HPS/MBIE40250T3-40ºC to 55ºC16.0
LX2NOV400SH*HPS/MBIE40400T3-40ºC to 45ºC17.5
LX2NOV500T**THE40500T3-40ºC to 40ºC13.6

HAZARDOUS AREA CERTIFICATION

Abtech Novus floodlights are certified according to leading hazardous area classifications including:

  • Area Classification Zone 2 & 22, Gas and Dust
  • Type of Protection Ex nR (restricted breathing)
  • Apparatus Coding Ex nR IIC T# Gc, Ex tc IIIC T0C Dc (refer to table to T rating and ambient)
  • Certificate Number ATEX 12ATEX4348X / IECEx SIR 12.0145X

T&D, The Explosive Atmosphere Experts, provide a single-source capability for the most extensive range of Electrical, Mechanical, Process & Instrumentation Equipment suitable for hazardous area locations.

Zone 2 Floodlight Abtech Novus - Dimensions

Zone 2 Floodlight Abtech Novus – Dimensions

Abtech Novus – Options

M25M25 cable entries (other thread types available on request)
6060Hz ac dc operation
110110 – 130V operation
IOIgnitor only (allows for remote mounting of control gear)
MRMedium beam reflector

Add the required suffix to the product reference.

Example: LX2NOV400SH60IO = Zone 2, 400W HPS/MH floodlight with 60Hz operation and remote control gear box
