Patol analogue heat detection cable is designed to provide early detection of any fire, heat or overheating in circumstances where other forms of fire detection would not be viable.
The extensive single zonal lengths of Patol analogue linear heat detection cable can be installed with the ability to trigger alarms for hot spots that occur on extremely small sections of the cable.
Typical installation examples include cable tunnels, ducts, escalators, paint shops, conveyors, oil rigs, oil platforms, hazardous areas and warehouse high rise pallet racking.
Patol Analogue Heat Detection Cable
Product Construction

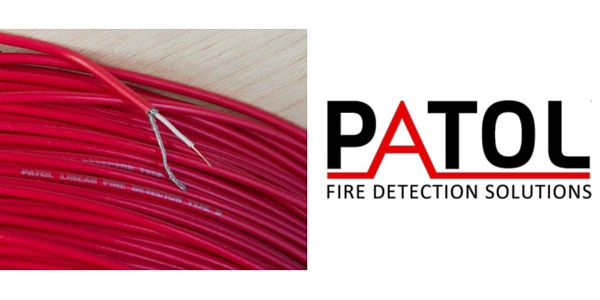

Patol analogue heat detection cable is constructed from a coaxial cable with a copper coated steel central conductor, an inner insulation (dielectric), tinned copper braid and an overall protective sheath.
Cable Outer Sheath:
- Red PVC – Standard
- Black Nylon (Rilsan) – Chemical Protection
- Stainless Steel & PVC – Mechanical Protection
- Stainless Steel & Nylon (Rilsan) – Mechanical & Chemical Protection
Cable Outer Diameter:
- Red PVC: 2.8 – 3.0 mm
- Black Nylon (Rilsan): 4mm
- Stainless Steel & PVC: 5 mm
- Stainless Steel & Nylon (Rilsan): 5 mm
Analogue Linear Heat Detection Cable – Key Features
- Adjustable alarm set point
- Recoverable and resettable operation
- Cables detect hot spot zones of up to 500m in length
- Mechanical and chemical protection available
- Easy to install and compatible with a full range of monitoring devices
- RoHS compliant head detection cable – Lead Free
Patol Fire & Heat Detection Cables (Digital, Analogue, or Fiber Optic) providing fire protection to aerosol fire suppression systems.

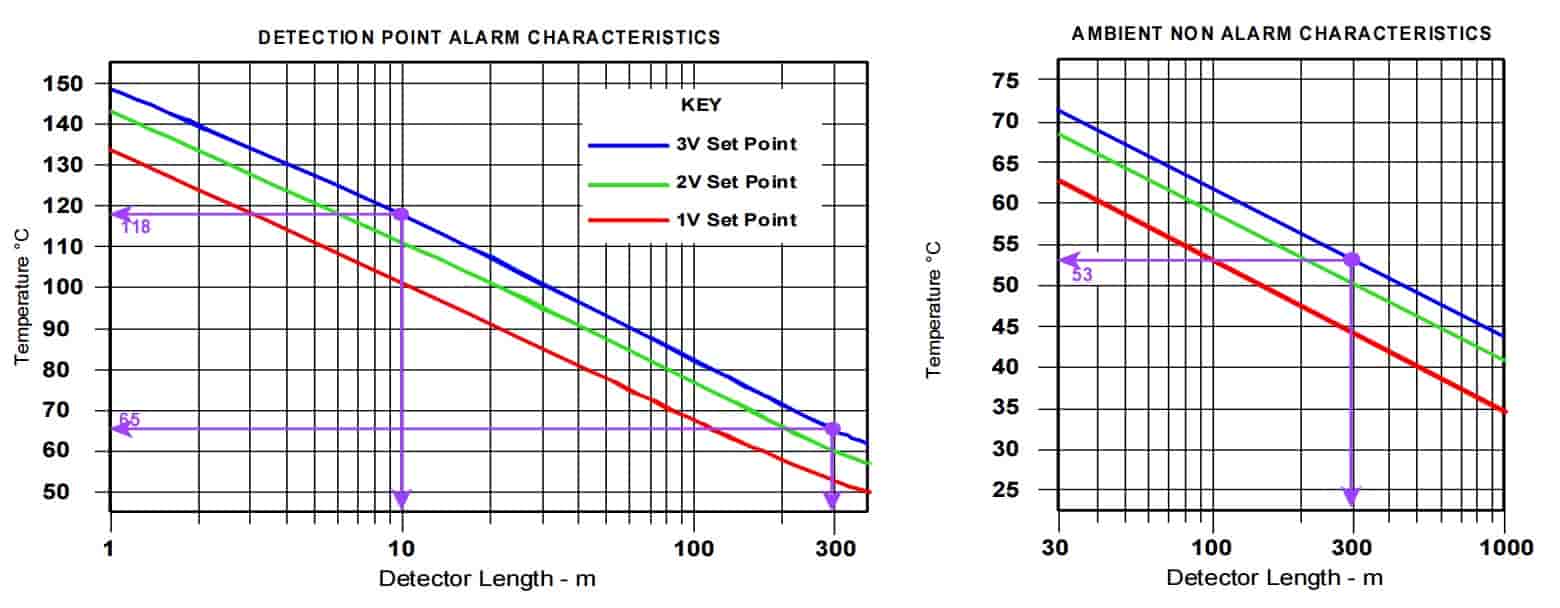

Patol Analogue Linear heat detection cable – alarm characteristics
Linear Heat Detection Cables (LHDC or Line Heat Detector) are available in both analogue and digital technology.
HAZARDOUS AREA HEAT & FIRE DETECTION USING PATOL CABLES
Patol LHDC heat detection cables are suitable for use in hazardous areas by means of intrinsically safe (IS) zener barriers and locating controllers in the safe area. Similarly, when the fire protected area is remote from the monitoring equipment, interposing cables can be installed between the monitoring equipment and the heat detection cables.
Patol cables protect hazardous area workspaces from the threat of fire cause by the ignition of flammable gases, liquids or vapours – linear heat detection cables provide fire safety for gas storage tank farms (pictured).
Patol SIL 2 (Safety Integrity Level) approved controllers can be used in conjunction with ATEX approved I.S. barrier to further ensure the safety of the fire and heat detection system for a hazardous area.
Heat detection cables monitor worn or damaged rim seals on the floating roof of atmospheric gas storage tanks providing vital fire detection and protection against catastrophic fire or explosion damage.
IS (Intrinsic Safety) – heat detection cables
IS (Intrinsic Safety) is a protection technique for the safe operation of electronic equipment in potentially explosive atmospheres by hazardous areas using IS Barriers. IS Barriers provide explosion protection to allow installation of equipment in Zone 0 hazardous areas – IS (Intrinsic Safety) ensures electrical and thermal energy is always low enough to preclude the ignition of potentially explosive or flammable atmospheres in hazardous area industries.
Associated equipment is electrical equipment which contains both intrinsically safe circuits and non-intrinsically safe circuits and is constructed so that the non-intrinsically safe circuits cannot affect the intrinsically safe circuits. Two types of IS Barrier are common: the shunt diode IS Barrier and the galvanically isolated IS Barrier.
