Flameproof Handlamps

Appleton ATX HLD Series Handlamps

Zones 1 & 2 – Zones 21 & 22

Product Category: Hazardous Area Lighting | Portable Lighting | Handlamp

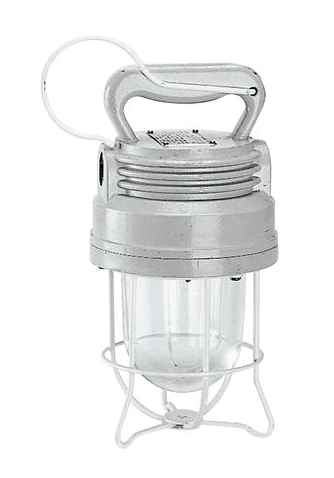

HLD Series Flameproof Handlamps manufactured by Appleton ATX are designed to offer a portable hazardous area lighting option for maintenance staff.

These portable handlamps are ideal for workers requiring task specific portable hazardous area lighting: typical locations for usage include refineries, oil and gas process and chemical plants.

Connection is via two 1 x 2.5 mm² (0.002 x 0.004 in²) terminals. Features of the Appleton ATX Flameproof HLD Handlamp Series include one

M20 threaded entry, protective guard and mountable via a suspension hook.

Appleton ATX hld Series handlamps

Features & Benefits

70 Watts (maximum) halogen lamp
75 Watts maximum for incandescent lamp
E27 lamp holder for 75 W (maximum) incandescent lamp (not supplied)
PK22S lamp holder for 70 W (maximum) halogen (H3) lamp (supplied)
One M20 threaded entry
Connection via two 1 x 2.5 mm² (0.002 x 0.004 in²) terminals
To be supplied with SELV (Service Extra Low Voltage) 24 Vac or 30 Vdc
Protective guard
Mounting via a suspension hook
Typical applications include refineries, oil and gas process and chemical plants

Appleton ATX hld Selection table

The following table enables the selection of flameproof handlamps – should you require any further assistance and technical support please do not hesitate to contact us.

Portable Lighting Ex d IIC – Flameproof Hazardous Area Handlamps	Appleton ATX Order Code
75W maximum for incandescent lamp	ATX HLD7502B
55W halogen 12 Vca/Vcc (lamp supplied)	ATX HLD5501B
70W halogen 24 Vca/Vcc (lamp supplied)	ATX HLD7002B

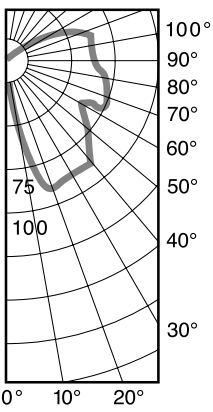

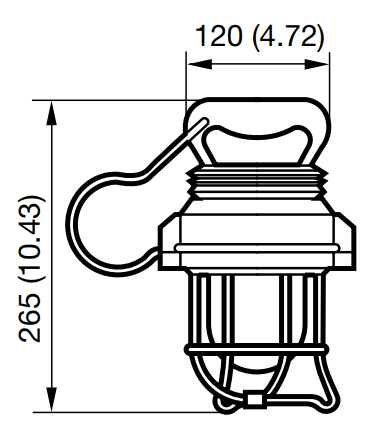

flameproof Handlamp specifications

Specific Wattages: 40 W Incandescent; 60 W Incandescent; 75 W Incandescent; 55 W Halogen; 70 W Halogen
ATEX/IECEx Certifications and Compliances: Zone 1 and 2 – 21 and 22; Ex II 2 GD; IP66
Ambient Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
Standard Materials and Finishes: Grey painted aluminum alloy body and bezel, sealed borosilicate glass lens with white zinc plated steel protective guard

➡ View our complete range of ATEX Lighting products for Zone 1 & Zone 2 (Zone 21 & 22) hazardous area lighting applications.

➡ See our technical resource section for further detailed information about hazardous area Zones and T-Class ratings.

ATEX & IECE x Hazardous Area Certifications and Compliances

Certification Type: Appleton ATX BLd
Gas: Zone 1 and 2 Hazardous Areas
Conforming to ATEX 94/9/CE: II 2 G
Type of Explosion Protection: Ex d IIC
Temperature Class: T3 to T5
Dust: Zone 21 and 22 Hazardous Areas
Conforming to ATEX 94/9/CE: II2 D
CE Declaration of Conformity: 50240
ATEX Certificate: LCIE 02 ATEX 6164
Index of Protection according EN/IEC 60529: IP66
Internal Volume: < 2 dm3 (122 in3) – 2 liters
Type of Explosion Protection: Ex tD A21
Surface Temperature: T110 °C to T138 °C (T230 °F to T280 °F)
Ambient Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
Temperature Rating: See Table Below

T Rating (Gas) and Surface Temperature (Dust) Table

Ex d Handlamp Type	Ambient Temperature	Gas				Dust
		Lamp Glass Facing Up		Lamp Glass Facing Down		Surface Temperature
		Ta = +40 °C (+104 °F)	Ta = +55 °C (+131 °F)	Ta = +40 °C (+104 °F)	Ta = +55 °C (+131 °F)	Surface Temperature
40 W Incandescent	Temperature (T) Rating	T5	T4	T5	T4	+110 °C (+230 ºF)
40 W Incandescent	Cable T°	+56 °C (+133 ºF)	+71 °C (+160 ºF)	+66 °C (+151 ºF)	+81 °C (+178 ºF)	N/A
60 W Incandescent	Temperature (T) Rating	T4	T4	T4	T4	+130 °C (+266 ºF)
60 W Incandescent	Cable T°	+61 °C (+142 ºF)	+76 °C (+169 ºF)	+73 °C (+163 ºF)	+88 °C (+190 ºF)	N/A
75 W Incandescent	Temperature (T) Rating	T4	T3	T4	T4	+138 °C (+280 ºF)
75 W Incandescent	Cable T°	+67 °C (+153 ºF)	+82 °C (+180 ºF)	+79 °C (+174 ºF)	+94 °C (+201 ºF)	N/A
55 W Halogen	Temperature (T) Rating	T4	T4	T4	T4	+122 °C (+252 ºF)
55 W Halogen	Cable T°	+67 °C (+153 ºF)	+82 °C (+180 ºF)	+79 °C (+174 ºF)	+94 °C (+201 ºF)	N/A
70 W Halogen	Temperature (T) Rating	T4	T4	T4	T4	+122 °C (+252 ºF)
70 W Halogen	Cable T°	+67 °C (+153 ºF)	+82 °C (+180 ºF)	+79 °C (+174 ºF)	+94 °C (+201 ºF)	N/A
