ASCO 435 Round Air Cylinders

T&D – ASCO Numatics Authorised Distribution Channel.

ASCO Numatics Joucomatic Cylinders. Round Cylinders.

ASCO 435 round air cylinders are specified to provide air or neutral gas flow control up to 10 bar using non-magnetic stainless steel body cylinders.

ASCO Numatics Joucomatic round cylinders suit 8-25mm diameters available in both single or double acting designs.

ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

ASCO Numatics Joucomatic 435 Round Air Cylinders

FEATURES

    • excellent resistance to corrosive media thanks to stainless steel barrel and rod
    • mountings integrated in the front and MP4 cap in the rear cover for trunnion mounting
    • compact threaded mount for direct attachment of front or rear covers on machine
    • double acting cylinders with or without pneumatic cushioning

Fluid : Air or neutral gas, filtered, lubricated or not

Operating Pressure : [1 bar =100 kPa] single acting 2 to 10 bar double acting 10 bar, max

Cylinder Ambient Temperature : -20°C to +70°C

Optimal max. speed : ≤ 1 m/s (for optimal service life)

Max. speed rate : 2 m/s

Round CYLINDER Construction

ASCO 435 Round Air Cylinders :

  • Barrel – Non-magnetic stainless steel
  • Rod – Stainless steel
  • Front and rear ends – Anodised light alloy (stainless steel: SSC option)
  • Cushioning seals – PUR (polyurethane)
  • Cushioning- Pneumatic, adjustable from both sides with captive screw
  • Rod nut / neck nut – Galvanised steel
  • Piston – Light alloy POM (polyacetal) fitted with an annular permanent magnet
  • Piston seals – PUR (polyurethane)
  • Dismounting – Cannot be dismounted

ASCO 435 Round Air Cylinders – SELECTION TABLE

The following should enable the correct selection of ASCO 435 round air cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.

Ø mm connect. Ø 25 50 80 100 160 max stroke
8 M5 SD SD D D 400
10 M5 SD SD D D 400
12 M5 SDO SDO D D 400
16 M5 SDO SDO D D 400
20 G1/8 SDO SDO D D 400
25 G1/8 SDO SDO D D D 900

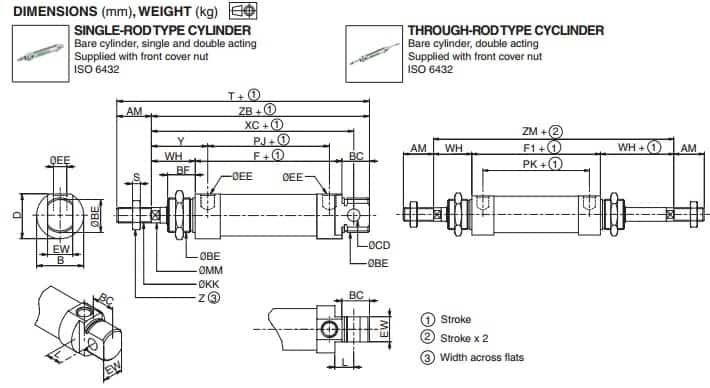

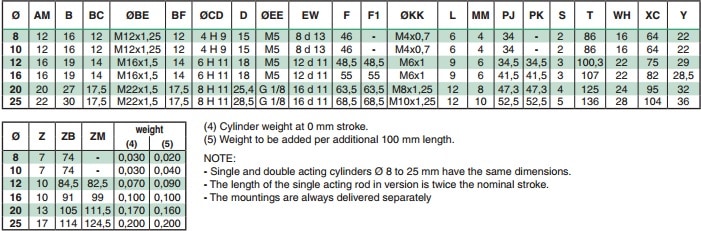

ASCO Numatics Joucomatic 435 Round Air Cylinders – Dimensions

ASCO Numatics Joucomatic 435 Round Air Cylinders



ASCO Numatics Joucomatic 435 Round Air Cylinders

ISO 6432 – ASCO 435ISO

ASCO 435 round air cylinders are compliant with ISO 6432 for pneumatic fluid power single rod singles with measuring bores from 8 to 25mm, maximum operating pressure of up to 10 bar and various mounting dimensions.
