ASCO 436 CETOP cylinders are specified to provide air or neutral gas flow control up to 10 bar with adjustable pneumatic cushioning.
ASCO Numatics Joucomatic CETOP cylinders suit 250mm diameters available in double acting designs compliant with ISO 6431.
ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

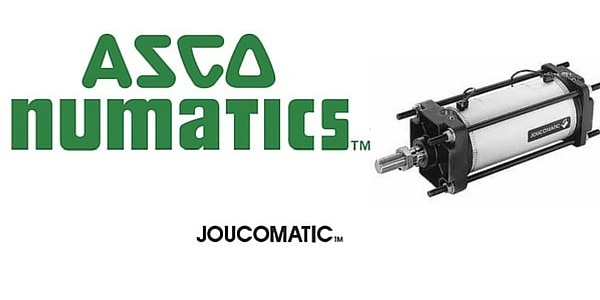

ASCO Numatics Joucomatic 436 CETOP Cylinders
FEATURES
- Compact panel cylinders with rear connection including double acting cylinder
- ISO 6431 – CETOP
- Equipped for magnetic position detectors
Fluid : Air or neutral gas, filtered, lubricated or not
Operating Pressure : 10 bar max
Cylinder Ambient Temperature : -20°C to +70°C
CETOP CYLINDER Construction
ASCO 436 CETOP Cylinders :
- Tube – aluminium alloy
- Tie rods – stee
- Rod – hard chromé dur
- Piston – light alloy fitted with a permanent annular magnet
- Piston Seals – NBR (nitrile)
- Cushioning seals – NBR (nitrile)
- Front and rear covers – light alloy
- Metal bearing – selflubricated
- Rod nut – galvanized steel
- Cushioning – Pneumatic, adjustable from the both sides
- Cushioning length – 45mm
ASCO 436 CETOP Cylinders With Tie Rods (ISO 6431) – SELECTION TABLE
The following should enable the correct selection of ASCO 436 CETOP cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.
Ø (mm) | Stroke (mm) | ASCO Numatics Joucomatic Catalogue Number | Reference | Connection Ø | ||
250 | 50 | ASCO 43602434 | PIS 250 A 50 – DM | G1 | ||
100 | ASCO 43602435 | PIS 250 A 100 – DM | ||||
160 | ASCO 43602436 | PIS 250 A 160 – DM | ||||
200 | ASCO 43602437 | PIS 250 A 200 – DM | ||||
250 | ASCO 43602438 | PIS 250 A 250 – DM | ||||
320 | ASCO 43602439 | PIS 250 A 320 – DM | ||||
400 | ASCO 43602440 | PIS 250 A 400 – DM | ||||
500 | ASCO 43602441 | PIS 250 A 500 – DM | ||||
600 | ASCO 43602442 | PIS 250 A 600 – DM | ||||
700 | ASCO 43602443 | PIS 250 A 700 – DM | ||||
800 | ASCO 43602444 | PIS 250 A 800 – DM | ||||
900 | ASCO 43602445 | PIS 250 A 900 – DM | ||||
1000 | ASCO 43602446 | PIS 250 A 1000-DM |

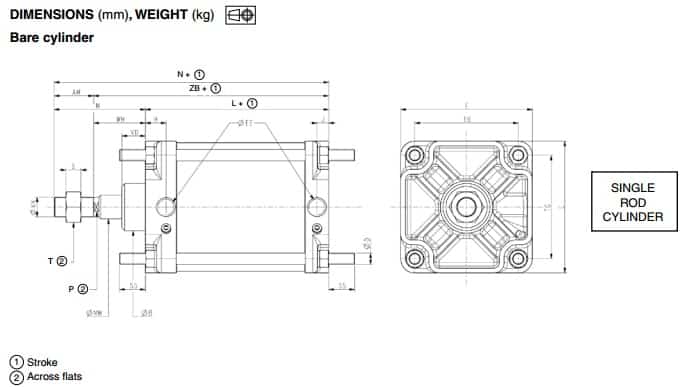

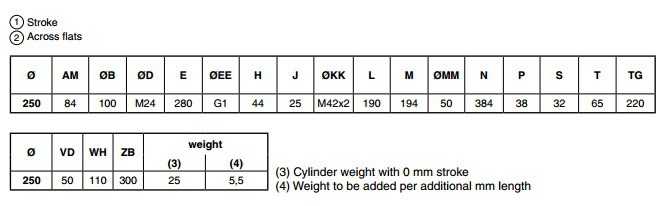

ASCO Numatics Joucomatic 436 CETOP CYLINDERS – Dimensions
