ASCO Numatics Joucomatic Cylinders. Anti-Corrosive Cylinders.
ASCO S anti-corrosive cylinders are specified to provide air or neutral gas flow control up to 10 bar using stainless steel 1.4301 AISI 304l barrel with adjustable pneumatic cushioning.
ASCO Numatics Joucomatic anti-corrosive cylinders with tie rods suit 32-125mm diameters available in double acting design and are complaint with ISO 15552.
ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.
ASCO Numatics Joucomatic S Anti-Corrosive Cylinders FEATURES
- Stainless steel barrel and rod make the cylinders anti-corrosive
- Suitable for use in corrosive environments such as chemical, salty and humid atmospheres and in the food processing industry
- High resistance to lactic acid and bactericidal sprays
- Equipped for magnetic position detectors
Fluid : Air or neutral gas, filtered, lubricated or not
Operating Pressure : 10 bar max
Cylinder Ambient Temperature : -20°C to +80°C
Standard : ISO 15552
ANTI-CORROSIVE CYLINDER Construction
ASCO S Anti-Corrosive Cylinders :
- Barrel – Stainless steel 1.4301 AISI 304
- Piston rod – Stainless steel 1.4571 AISI 316 TI
- Tie rods – Ø 32 to 100 : Stainless steel 1.4571 AISI 316 TI Ø 125 : Stainless steel 1.4301 AISI 304l
- Front and rear covers – Stainless steel 1.4301 AISI 304
- Piston rod nut – Stainless steel 1.4301 AISI 304
- Seals – PUR (polyurethane) – NBR (nitrile)
- Bearing – Sintered bronze
- Cushioning – Adjustable pneumatic

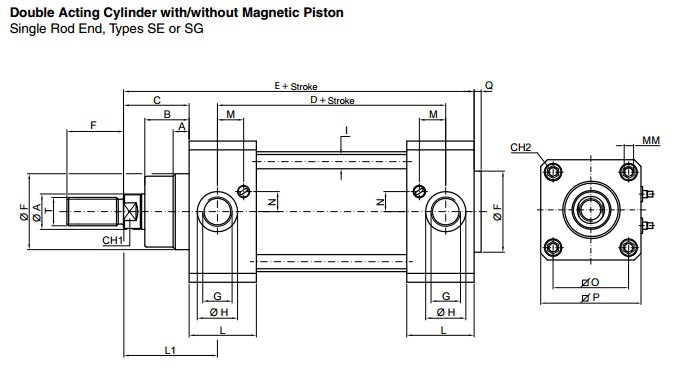

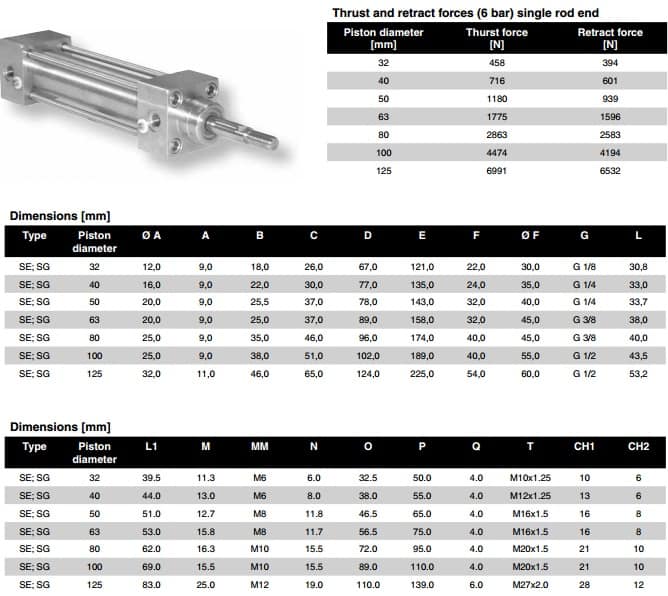

ASCO Numatics Joucomatic S anti-corrosive Cylinders – Dimensions
ISO 15552 – ASCO S Series
ASCO S Series cylinders are compliant with ISO1 5552 for pneumatic fluid power compact with measuring bores from 32 to 320mm, maximum operating pressure of up to 10 bar and with basic, mounting and accessories dimensions.
