eX m encapsulated

Potentially Explosive Atmospheres

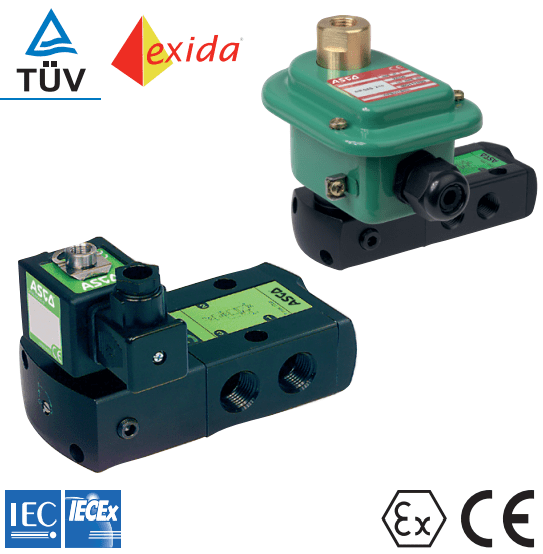

ASCO 551-553 3/2 nc solenoid Valve

ASCO 551-553 Ex m encapsulated valves for use in potentially explosive atmospheres – in accordance with explosion protection concept type Ex m (Encapsulation). This series of solenoid valve operators are manufactured and certified for hazardous area use according to ATEX, IECEx and IEC regulations.

The monostable spool valves are manufactured and certified for hazardous area use according to IEC 61508 Standard (2010 route 2H version) and are TÜV (551 series) and EXIDA (551-553 series) certified with integrity levels: SIL 2 for HFT = 0 / SIL 3 for HFT = 1.

They are single/dual solenoid valves, which are pilot operated, have an aluminium body and are 1/4 and 1/2 tapped.

eX m encapsulated solenoid Valves

features

The 3/2 NC spool solenoid valves have threaded port connections
In order to provide better environmental protection against the ingress of liquids, dusts and other foreign matter, all of the exhaust ports are connectable. This is particularly recommended for sensitive areas, such as clean rooms, and applications within the pharmaceutical and food processing sectors
The Ex m Encapsulated solenoid valves can be externally piloted via an external air pilot supply, in order to convert the valve to zero minimum operation by flipping a gasket
The solenoid valves can be mounted in any position without affecting operation
Threaded pipe connection identifier is 8 = NPT (ANSI 1.20.3); G = G (ISO 228/1)

➡ View the complete range of ASCO valves for control critical flows of air, inert gas, liquids, and steam in hazardous area locations.

ASCO Solenoid Valves Are Often Used Throughout Refineries In The Oil And Gas Industry

asco 551-553 solenoid valves

specification

Differential Pressure: 2 – 10,4 bar [1 bar =100 kPa]
Flow (Qv at 6 bar): 1/4 = 860 l/min | 1/2 = 3800 l/min
Fluids: air, inert gas, filtered
Temperature Range: -25°C to +60°C
Seal Materials: NBR (nitrile) + PUR (polyurethane)

Materials In Contact With Fluid

Body	Aluminium, black anodised
End cover (spring return)	Glass-filled PA
Spool valve internal parts	Zamak, stainless steel, POM, aluminium
Pilot end covers	Aluminium
Core tube	Stainless steel
Core and plugnut	Stainless steel
Core spring	Stainless steel
Seals	NBR (Nitrile Butadiene Rubber)
Top disc	PA (Polyamide Nylon)
Disc holder	CA (Cellulose Acetate)
Cartridge (low power)	Welded, stainless steel or aluminium
Seat	Brass
Seat insert	CA (Cellulose Acetate)
Shading coil	Copper
Rider rings (low power)	PTFE (NF/WSNF solenoids only)

➡ The complete specification for the full range of ASCO 551-553 encapsulated solenoid valves is available in the Data Sheet.

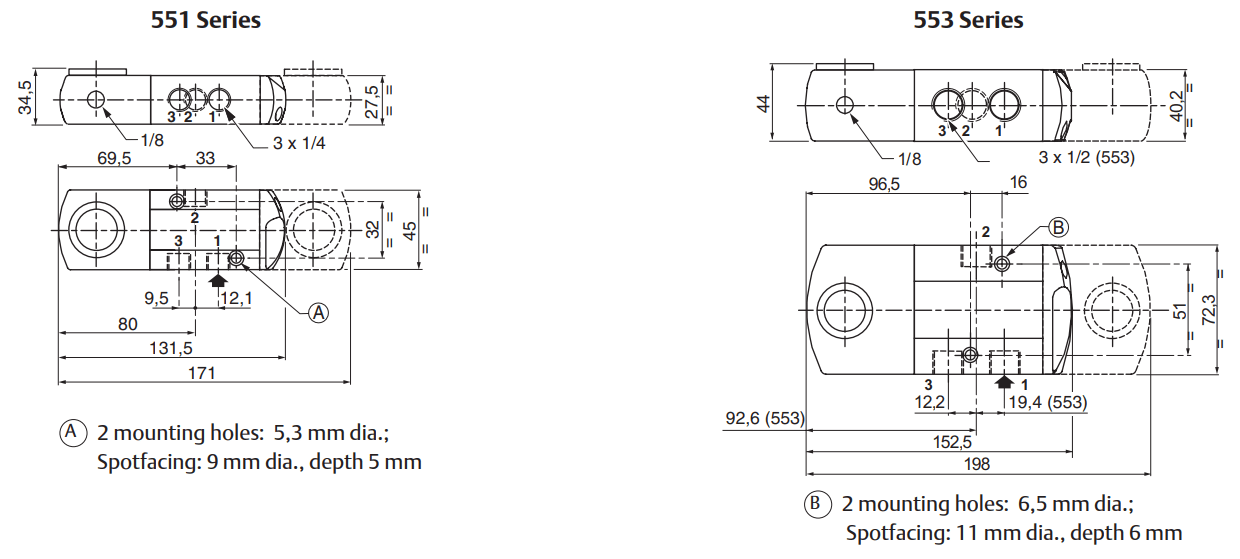

asco 551-553 valves – dimensions

Type ASCO 551 – 553 3/2

ASCO 551 – 553 3/2 Ex m Encapsulated Valves | Dimensions (mm)

SOLENOIDS

Ordering Information: A solenoid valve with the explosion proof operator will be identified with the prefix ASCO PV before the catalogue number.

For example

ASCO PV E 210D095 230V/50Hz

Where:

PV Solenoid Operator
E Pipe Thread
210D095 Solenoid Valve | Operator Catalogue Number
230V Voltage

A valve supplied with the explosion proof operator will be identified with electrical interface A7 in the 15-digit product code.

For example

ASCO E 262 K 232 A7 V00 H1

Where:

E Thread Connection
262 ASCO Solenoid Valve Series
K Revision Letter
232 ASCO Solenoid Valves Version
A7 Electrical Interface
V00 Valves | Operators Options
H1 Voltage Class

Explanation of Temperature Ranges of Solenoid Valves

Valve Temperature Range – the valve temperature range (TS) is determined by the selected seal material, the temperature range for proper operation of the solenoid valve and sometimes by the fluid (e.g. steam).
Valve Operator Ambient Temperature Range – the operator ambient temperature range is determined by the selected power level and the safety code.
Total Temperature Range – the temperature range of the complete solenoid valve is determined by the limitations of both temperature ranges above.

Electrical Connections for Solenoid Valves

The following information displays the electrical connection options available for this range of explosion proof solenoid valves manufactured by ASCO:

Prefix	Connection
SC	Spade plug connector with cable gland EN175301-803A (ISO 4400) for cables with an outer diameter from 6 to 10 mm
WP, WS, EM, WSEM	M20 plastics cable gland for cables with an outer diameter from 7 to 12 mm
NF, WSNF, LPKF, WSLPKF	1/2″ NPT threaded cable entry. Enclosures are supplied without cable gland
PV	Moulded-in cable, standard length 2 m
LI, WSLI	1/2″ NPT threaded cable entry. Enclosures are supplied without cable gland
EF	1/2″ NPT conduits, standard length 35 cm
