asco eX e mb solenoid valves

increased safety & encapsulated

551-553 namur 3/2 nc & 5/2

ASCO 551-553 Series explosion proof solenoid valves are NAMUR Style 1/4 and 1/2 tapped, stainless steel bodied, pilot operated, spool type, single/dual solenoid valves.

The Ex e mb spool valves are manufactured and certified for hazardous area use according to IEC 61508 Standard (2010 route 2H version) and are TÜV and EXIDA certified with integrity levels: SIL 2 for HFT = 0 / SIL 3 for HFT = 1.

These solenoid valves are supplied with ASCO EM or WSEM Increased Safety & Encapsulated valve operators.

eX E MB INCREASED SAFETY ENCAPSULATED solenoid Valves

features

In order to provide better environmental protection against the ingress of liquids, dusts and other foreign matter, all of the exhaust ports are connectable. This is particularly recommended for sensitive areas, such as clean rooms, and applications within the pharmaceutical and food processing sectors
The Ex e mb solenoid valves can be externally piloted via an external air pilot supply, in order to convert the valve to zero minimum operation by flipping a gasket
The solenoid valves satisfy all relevant EU directives

asco 551-553 EX E MB solenoid valves

specification

Differential Pressure: 2 – 10,4 bar [1 bar =100 kPa]
Flow (Qv at 6 bar): 1/4 tapped – 700 l/min (ANR) | 1/2 tapped – 3000 l/min
Fluids: air, inert gas, filtered
Temperature Range: 553: -40°C to +60°C | 551: -40°C to +80°C
Seal Materials: VMQ (silicone) + PUR (polyurethane)

Type EM:

Waterproof IP66/67 – Metal enclosure (EN/IEC 60079-7,-18 and -31)
ATEX/IECEx valves using these solenoids are approved according to EN ISO 80079-36 (2016) and EN ISO 80079-37 (2016) [non electrical]

ASCO Solenoid Valves | Type 04

TYPE 04: Metal, epoxy coated / AISI 316L SS | EM / WSEM: EN/IEC 60079-7+18+31

Order Codes: 551A409 / 551A410 / 553A409 / 553A410

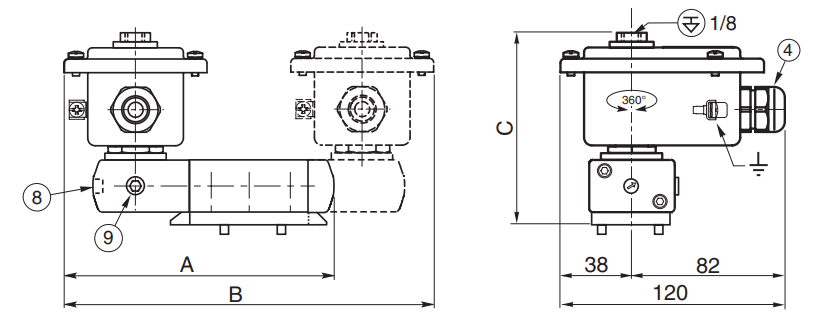

ASCO Solenoid Valves 551-553 3/2 NC & 5/2 | Type 04 | Dimensions (mm)

Valve Operator Type	Valve Operator Prefix	Power Level	Series	A	B	C	Weight (including coils & connectors)
							Monostable	Bistable
04	EM/WSEM	Basic Power	551	148 mm	205 mm	108 mm	1.97 kg	2.12 kg
			553	198 mm	262 mm	117 mm	2.90 kg	5.16 kg

Type WSEM:

Waterproof IP66/67 – 316 SS enclosure (EN/IEC 60079-0+7+18+31)
ATEX/IECEx valves using these solenoids are approved according to EN ISO 80079-36 (2016) and EN ISO 80079-37 (2016) [non electrical]

ASCO Solenoid Valves | Type 09

TYPE 09: Metal, epoxy coated / AISI 316L SS | EM / WSEM: EN/IEC 60079-7+18+31

Order Codes: 551A309 / 551A310 / 553A309 / 553A310

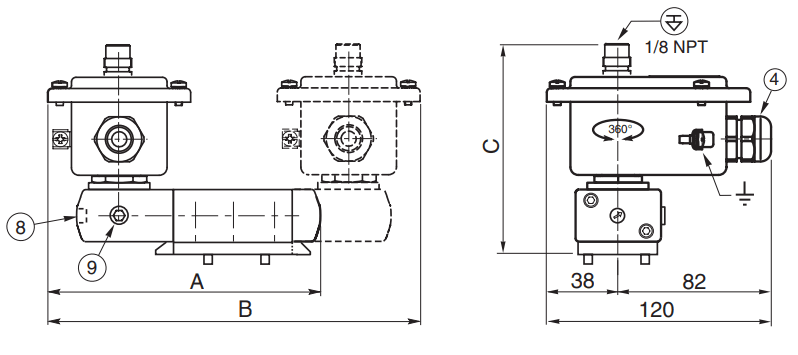

ASCO Solenoid Valves NAMUR 3/2 NC & 5/2 | Type 09 | Dimensions (mm)

Valve Operator Type	Valve Operator Prefix	Power Level	Series	A	B	C	Weight (including coils & connectors)
							Monostable	Bistable
09	EM/WSEM	Low Power	551	148 mm	205 mm	108 mm	1.97 kg	2.12 kg
			553	198 mm	262 mm	117 mm	2.96 kg	5.16 kg

➡ For full specification see attached data sheet.

asco ex e mb valves – ordering information

Pipe Size	Orifice Size	Flow Coefficient Kv		Operating Pressure Differential (bar)			Power Level	Ex e mb Prefix	Thread Type	ASCO Order Code
				Minimum*	Maximum (PS)
					Air
		(m³/h)	(l/min)		∼	=	∼/=
3/2 NC – 5/2 – Solenoid air pilot operated – spring return (monostable)
1/4	6	0.60	10	0 / 2	10	10	Basic Power	EM	NPT ANSI 1.20.3	8551A409**
									ISO G (228/1)	G551A409**
							Low Power		NPT ANSI 1.20.3	8551A309**
									ISO G (228/1)	G551A309**
1/2	13	2.49	41.5				Basic Power		NPT ANSI 1.20.3	8553A409**
									ISO G (228/1)	G553A409**
							Low Power		NPT ANSI 1.20.3	8553A309**
									ISO G (228/1)	G553A309**
3/2 NC – 5/2 – Solenoid air pilot operated and return (bistable)
1/4	6	0.60	10	0 / 2	10	10	Basic Power	EM	NPT ANSI 1.20.3	8551A410
									ISO G (228/1)	G551A410
							Low Power		NPT ANSI 1.20.3	8551A310
									ISO G (228/1)	G551A310
1/2	13	2.49	41.5				Basic Power		NPT ANSI 1.20.3	8553A410
									ISO G (228/1)	G553A410
							Low Power		NPT ANSI 1.20.3	8553A310
									ISO G (228/1)	G553A310

* Zero minimum is only achieved if external pressure is applied.

**Use suffix “SL” where IEC 61508 Functional Safety data certification is required.

asco 551-553 valves – dimensions

Type ASCO 551-553 3/2 NC & 5/2

ASCO 551 – 553 Valves | 3/2 NC 5/2 NAMUR | Dimensions (mm)

Interface plate
2 mounting holes: 5,3 mm dia. (Spotfacing: 9 mm dia., depth 5 mm); 2 screws (CHc M5 x 35), engaged length: 7 mm
One 5 mm dia. hole for dowel pin:
– in position C1: 3/2 NC function plate
– in position C2: 5/2 function plate
2 O-ring seals (supplied)
2 mounting holes: 6,5 mm dia. (Spotfacing: 11 mm dia., depth 6 mm); 2 screws (CHc M6 x 50), engaged length: 7 mm

electrical characteristics & connections

Coil insulation class: F
Electrical safety: IEC 335
Standard voltages: DC (=) 24V – 48V | AC (~) 24V – 48V – 115V – 230V/50Hz; (other voltages and 60Hz are available on request)

Basic Power – Type 04

Power Ratings – Inrush (VA): 55, Holding (VA): 23, Holding (W): 10.5, Hot/Cold (W): 9/11,2
Operator Ambient Temperature Range (TS) : -40°C to +40°C
Hazardous Area Safety Code: II2G Ex eb mb IIC Gb T3, II2D Ex tb IIIC Db
Electrical Enclosure Protection (EN 60529): IP66/67, steel /SS
Electrical Connections: M20 plastic cable gland for cables with an outer diameter from 7 to 12 mm

Low Power – Type 09

Power Ratings – Inrush (VA): 1.5, Holding (VA): 1.5, Holding (W): 1.5, Hot/Cold (W): 1,7/1,7
Operator Ambient Temperature Range (TS) : -40°C to +40/55°C
Hazardous Area Safety Code: II2G Ex eb mb IIC Gb T6/T5, II2D Ex tb IIIC Db
Electrical Enclosure Protection (EN 60529): IP66/67, steel /SS
Electrical Connections: M20 plastic cable gland for cables with an outer diameter from 7 to 12 mm
