ASCO PV | Ex m Encapsulated ATEX IECEx Solenoid Valve Operators

eX m encapsulated

Potentially Explosive Atmospheres

ASCO pv Valve operators

ASCO PV Series solenoid valve operators are explosion proof Ex m encapsulated operators for use in potentially explosive atmospheres – in accordance with explosion protection concept type Ex m (Encapsulation).

This series of solenoid valve operators are manufactured and certified for hazardous area use according to ATEX, IECEx and IEC regulations.

ASCO PV operators are suitable to be installed on a wide range of solenoid valves and are supplied with a moulded-in, 2 metre long supply cable to allow easy electrical installation.

ASCO PV is an explosion proof solenoid valve operator for use in potentially explosive atmospheres according to ATEX-Directive 2014/34/EU.

➡ View the complete range of ASCO valves for control critical flows of air, inert gas, liquids, and steam in hazardous area locations.

ASCO Solenoid Valves Are Often Used Throughout Refineries In The Oil And Gas Industry

asco PV valve operator – specification

• Safety code IECEx / q II 2G Ex mb IIC T5..T3 Gb  | IECEx / q II 2D Ex mb IIIC 100°C ..200°C Db IP67
• Standard voltages DC (=) : 24V – 48V | AC (~) : 24V – 48V – 115V – 230V / 50 Hz
• Connections: The solenoid can be rotated through 360° to select the best position for the cable

Construction

• Solenoid enclosure: Epoxy encapsulated
• Core tube: Stainless steel
• Plugnut: Stainless steel
• Shading Coil: Copper or silver
• Nameplate: Polyester

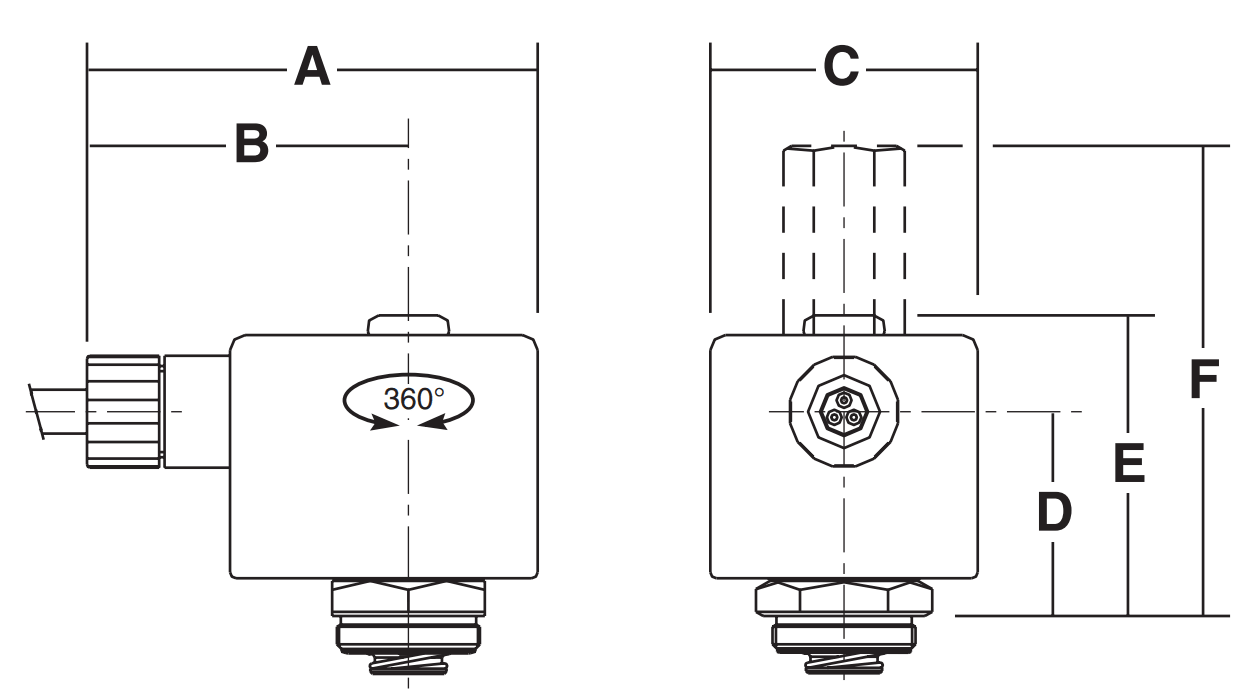

Dimensions – TYPE PV

Prefix “PV” solenoids / Electrical interface A7
Epoxy coated
EN-IEC 60079-18
II 2G Ex mb IIC Gb – II 2D Ex mb IIIC Db IP67

Solenoids

Ordering Information: A solenoid valve with the explosion proof operator will be identified with the prefix ASCO PV before the catalogue number.

For example

ASCO PV E 210D095 230V/50Hz

Where:

• PV Solenoid Operator
• E Pipe Thread
• 210D095 Solenoid Valve | Operator Catalogue Number
• 230V Voltage

A valve supplied with the explosion proof operator will be identified with electrical interface A7 in the 15-digit product code.

For example

ASCO E 262 K 232 A7 V00 H1

Where:

• E Thread Connection
• 262 ASCO Solenoid Valve Series
• K Revision Letter
• 232 ASCO Solenoid Valves Version
• A7 Electrical Interface
• V00 Valves | Operators Options
• H1 Voltage Class

ASCO PV Valve Operators | Dimensions (mm)

Certified For Hazardous Area Flow Control | ATEX Valves

hazardous area certifications & compliances

• ATEX-Directive 2014/34/EU
• EC type examination certificate no.: BAS 98 ATEX 2168 X
• IECEx Certificate of Conformity no.: IECEx SIR 06.109X
• Compliance with the Essential Health & Safety Requirements has been assured by compliance with International and European Standards IEC and EN-IEC 60079-0 & EN-IEC 60079-18
• Ingress protection degree IP67

Flameproof | Encapsulated | Increased Safety | Intrinsically Safe | Non-Sparking Explosion Proof
