Ashcroft 1001T Panel Mount Gauge

Commercial Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.

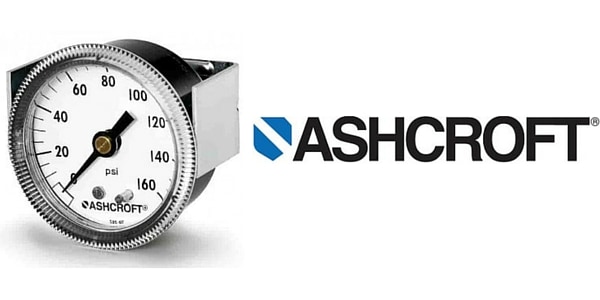

Ashcroft 1001T panel mount gauge is used throughout general process and industrial markets globally and is known for it’s reliability, performance and safety thanks to the aesthetic panel mount design.

The Ashcroft 1001T panel mount gauge has also been designed to be customised as an ideal solution for this type of pressure measurement.

Ashcroft 1001T Panel Mount Gauge – Applications

Pumps and Compressors
Machinery and Metal Working
OEM Equipment

The Ashcroft 1001T panel mount gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.

Ashcroft 1001T Panel Mount Gauge – Features

PowerFlex^™ movement provides superior resistance to shock, vibration and pulsation; extends product life and reduces maintenance costs
True Zero^™ reduces reading errors by using a “zero zone” instead of conventional dial pins (posts); this ensures product safety, integrity and system control
FlutterGuard^™ (option) reduces movement wear and eliminates pointer flutter; extends product life and allows easy gauge readability
1/4 turn polycarbonate window provides better dial visibility and easy removal

Ashcroft 1001T Panel Mount Gauge – Product Specifications

Ashcroft Model Number	Ashcroft 1001T
Accuracy	ASME B40.100, Grade B, ±3-2-3%
Ranges	Vacuum-6000 psi and compound (11 ⁄2˝ available in Vacuum – 1000 psi only)
Dial Size	11 ⁄2,˝ 2,˝ 21 ⁄2,˝ 31 ⁄2˝
Case	Black painted steel
Dial	Black figures on white background, aluminum
Window	Plastic
Pointer	1 ⁄4-turn threaded polycarbonate
Movement	Patented PowerFlex™ with polyester segment
Bourbon Tube & Socket	C-shape bronze (2˝ – 31 ⁄2˝, vacuum– 600 psi and compound; 11 ⁄2˝, vacuum– 1000 psi) Helical bronze (2˝ – 31 ⁄2˝, 1000 – 6000 psi) Socket Brass

ASHCROFT 1001T – HOW TO ORDER

Here is a typical ordering example for an Ashcroft 1001T pressure gauge – for technical support, specification and sales contact T&D.

Ashcroft Gauge : 20-W-1001-T-H-02B-XUC-100#

Dial Size : 2″ (20)
Movement : Patented PowerFlex™ (W)
Case Type Number : 1001 (1001)
Window : 1/4 Turn (T)
Connection Material : Brass (H)
Connection Size/Location : 1/4 NPT Back (02B)
Option : U Clamp Assembly (XUC)
Range : 100 psi (100#)

Pressure Gauges – Ashcroft commercial gauges can be used to measure pressure on fire protection sprinkler pipework systems.

ASHCROFT

Watch how Ashcroft pressure gauges and temperature instruments protect people in all industries and every environment.

ASHCROFT & THE WATER INDUSTRY

Ashcroft gauges monitor pressure in filtration, flow and level applications including pumps, control systems, filters and heat exchangers – providing process pressure measurement for hydrostatic pressure, filter monitoring or regulating flow and deionized water.

Ashcroft Gauges – Instrumentation For Water & Waste Water Treatment Industries

T&D service the global water utility industry with Electrical, Mechanical, Process & Instrumentation Equipment – this includes Water Metering, Heat Tracing, Gas Detection and Process Heating. Image : Mott MacDonald

Hazardous Areas

Hazardous area (ATEX & IECEx Certified) flameproof pressure gauges are available for potentially explosive atmospheres – T&D’s CompEX Certificated Sales Team supply worldwide oil, gas and petrochem projects, call us.

Hazardous Area ATEX IECEx
