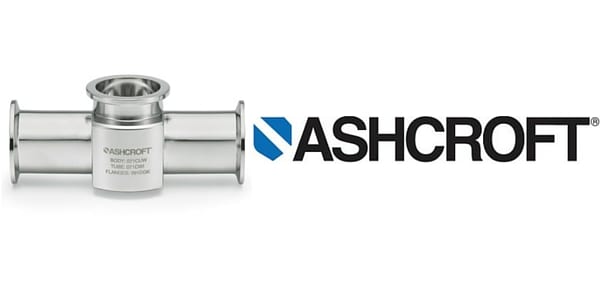

Ashcroft 1037 Sanitary Instrument Fitting
Sanitary Pressure Gauge – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.
Ashcroft 1037 sanitary instrument fitting is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety. The Ashcroft 1037 sanitary instrument fitting has been designed to withstand harsh working conditions and measure a wide range of pressure ratings.
Ashcroft 1037 Sanitary Instrument Fitting – Applications
- Specialised OEM Equipment
- Food & Dairy
- Pharmaceutical
- Biotech
- Medical Equipment
- Filtration
The Ashcroft 1037 pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 1037 Sanitary Instrument Fitting – Features
- Wetted material heat number stamped on each fitting
- Clean or Steam in Place (CIP/SIP)
- Autoclave or Sterilize
- Pipe size: 1/2″ to 2″; mates with type 1036 Inline Sanitary gauge
- 316L stainless steel construction
- Wetted material: electropolished 316LSS (12 to 20RA) internal surface finish
- End connections Tri-Clamp® sizes
- Instrument connections Tri-Clamp® modified
Ashcroft 1037 Sanitary Instrument Fitting – Product Specifications
| Ashcroft Model Number | Ashcroft 1037 |
| Construction | 316L stainless steel |
| Wetted Parts | Electropolished to 12 to 20RA surface finish |
| Heat Number | Stamped on fitting |
ASHCROFT 1037– HOW TO ORDER
Here is a typical ordering example for an Ashcroft 1036 pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge : 35-1036-S-L-15-L-XXX-100#
- Gauge Dial Size : 3 1 ⁄2 ˝(35)
- Case Type Number : 1036 (1036)
- Tube and Socket Material : 316SS (S)
- Fill : (glycerin) (L)
- Connection Size : : 1.5˝ seal (15)
- Connection Location : Lower (L)
- Option : (XXX)
- Gauge Range : 100 (100#)
Pressure Gauges – Ashcroft sanitary gauges can be used to measure pressure on fire protection sprinkler pipework systems.
ASHCROFT
Watch how Ashcroft pressure gauges and temperature instruments protect people in all industries and every environment.
ASHCROFT & THE WATER INDUSTRY
Ashcroft gauges monitor pressure in filtration, flow and level applications including pumps, control systems, filters and heat exchangers – providing process pressure measurement for hydrostatic pressure, filter monitoring or regulating flow and deionized water.
T&D service the global water utility industry with Electrical, Mechanical, Process & Instrumentation Equipment – this includes Water Metering, Heat Tracing, Gas Detection and Process Heating. Image : Mott MacDonald
HAZARDOUS AREAS
Ashcroft 1037 Sanitary Instrument Fitting Spec Sheet
Download
