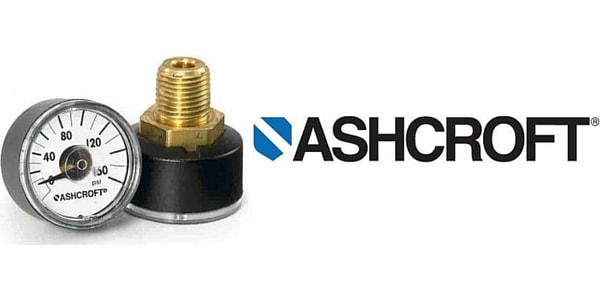

Ashcroft 23DDG Pressure Gauge
Commercial Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.
Ashcroft 23DDG pressure gauge is used in industrial equipment installations globally where space is limited and is known for it’s reliability, performance and safety thanks to the aesthetic panel mount design.
The Ashcroft 12DDG/15DDG pressure gauge range is unaffected by shock and vibration by using direct drive technology and is a cost effective pressure measurement solution.
Ashcroft 23DDG Pressure Gauge – Applications
- Air Inflators / Compressors
- Mini FRL’s
- Specialized OEM Equipment
Ashcroft 23DDG pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 23DDG Pressure Gauge – Features
- Direct drive technology eliminates wear, increasing product life
- Silicone-dampened coil (option) resists vibration effects
- Easy installation using wrench flats
Ashcroft 23DDG Pressure Gauge – Product Specifications
| Ashcroft Model Number | Ashcroft 23DDG |
| Accuracy | ±5% full scale |
| Ring | None |
| Sizes | 23mm (.906˝ ) |
| Case | Black, ABS blend |
| Window | Polycarbonate, ultrasonically welded to case |
| Pointer | Brass, painted black |
| Movement | None (direct drive reading) |
| Bourbon Tube & Socket | Beryllium copper, spiral; soft soldered to socket Socket Brass with 15mm ( 9 ⁄16˝) wrench flats |
ASHCROFT 23DDG – How To Order
Here is a typical ordering example for an Ashcroft 23DDG pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge 23-DDG-01B-60#
- Gauge Dial Size : 23mm (23)
- Case Type Number : Direct Drive Gauge (DDG)
- Connection Size / Location : 1/8″ NPT Back (01B)
- Gauge Range : 60 psi (60#)
Pressure Gauges – Ashcroft commercial gauges can be used to measure pressure on fire protection sprinkler pipework systems.
