ATEX Mobile Phone Zone 2 Hazardous Area – Ecom Smart-Ex 201 Smart Phone

ATEX Mobile Phones

ECOM SMART-EX 201

Zone 2 & Zone 22, Division 2 Hazardous Area Locations

***THIS PRODUCT HAS REACHED END OF LIFE IN USA & CANADA. The follow-up product is Ecom Smart-Ex 02 DZ2***

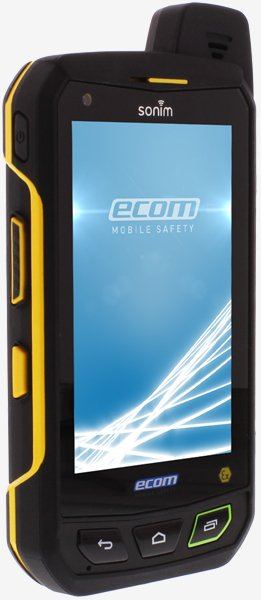

Ecom Smart-Ex 201 is an ATEX certified, LTE / WiFi / Android, smart phone suitable for use within Zone 2, Zone 22 and Division 2 hazardous areas. The Ecom Smart-Ex 201 ATEX mobile phone features a 4″ touchscreen that can be used easily with wet or dirty work gloves and can easily be viewed in direct sunlight.

Ecom Smart-Ex 201 hazardous area mobile phone has an extremely loud speaker, noise cancellation and a powerful battery with water and drop resistance – the ATEX mobile phone also provides access to productivity applications and worker safety in hazardous area locations and is part of the Ecom hazardous area mobile communications range.

ATEX Certification
II 3 G Ex ic IIC T4 Gc IP64
II 3 D Ex ic IIIC T135°C Dc

Thorne & Derrick distribute the Ecom range of hazardous area mobile communications and computing solutions – including mobile phones, smartphones, handheld computers, laptops, tablet computers, PDAs and bar-code scanners with ATEX and IECEx certification.

ATEX Mobile Phone

Ecom Smart-Ex 201 Key Features

Ecom Smart-Ex 201 ATEX mobile phone provides safe mobile communications for hazardous area workers:

Large display increases the workers productivity due to the larger work surface
FOTA (Firmware Over The Air) ability keeps the intrinsically safe smartphone up to date
4G / LTE -standard (SIM unlocked and free)
Android™ 4.4, KitKat operating system
4.0“ capacitive multi-touch screen made of extreme shock and scratch resistant Gorilla® Glass 2
Glove Touch Screen
High Visibility Display in Direct Sunlight
4800 mAh Li-Ion battery pack to power ATEX mobile phone
Bluetooth® 4.0 incl. BLE (Bluetooth® Low Energy) BLE (30 times faster, 1/100th of power)
8 MP rear camera with auto focus and LED flash with torchlight function and 1 MP front camera
5-pins water-proof magnetic USB 2.0 High Speed connector
IP68 – Dust proof, water proof hazardous area mobile phone
Push-to-talk (App solution)
Dedicated Hardware buttons for PTT, LWP functions
(Optional) Lone Worker Protection (App solution)
(Optional) Service Level Agreement (SLA)
Chipset MSM8926 1.2 GHz Quad core
ATEX Mobile Phone – Smart Phone
EU: B1, B3, B7, B8, B20, B38 (TDD)
- Quad Band UMTS 850 / 900 / 1900 / 2100 MHz
- Quad Band GSM 850 / 900 / 1800 / 1900 MHz
US: B1, B2, B3, B4, B5, B7, B8, B12, B17
- Quad Band GSM 850 / 900 / 1800 / 1900 MHz
- Quad Band UMTS 850 / 900 / 1900 / 2100 MHz
MIMO antenna for LTE
WiFi 802.11 a/b/g/n dual-band, WiFi Direct, WiFi Hotspot
16GB Internal Storage / 1GB RAM
12GB user memory

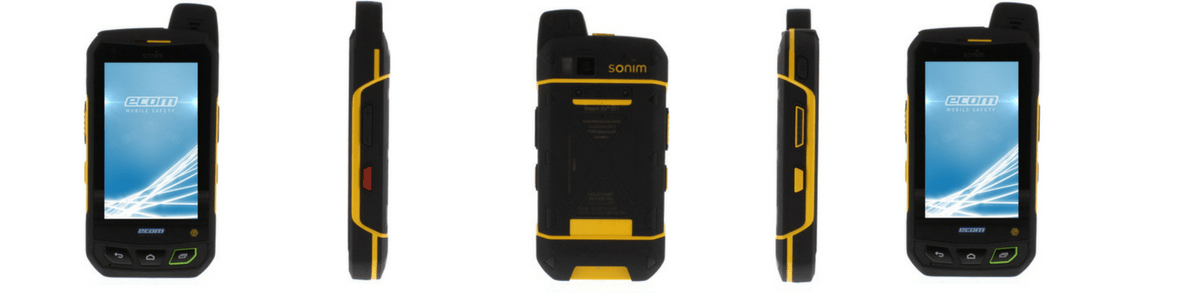

ATEX Mobile Phone Zone 2 Hazardous Area - Ecom Smart-Ex 201 Smart Phone

ATEX MOBILE PHONE ZONE 2 HAZARDOUS AREA

ECOM SMART-EX 201 Smart Phone Technical Data

Ecom Smart-Ex 201 ATEX Smart Phone – Connectivity
Bluetooth, SMS, MMS (Text, Image, Audio, Video)	BT 4.0 / BLE (Bluetooth Low Energy), Support SMS and MMS
A-GPS, NFC	A-GPS, GLONASS, NFC
Supported Language	Arabic, Simplified Chinese, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish
Email Client	EAS, Gmail, POP 3, IMAP
Capacity (mAh)	4800mAh
Ecom Smart-Ex 201 ATEX Smart Phone – Physical Characteristics
Battery Life	Up to 1000 hours standby, up to 40 hours talk time
Ambient Temperature	-20ºC to +55ºC
Protection Class	IP68
Size	137mm x 72.1mm x 20.8mm (5.39″ x 2.84″ x 0.82″)
Weight	Approx. 290g (10.23oz)
Certifications	FCC, PTCRB, IEEE1725, CEC, Bluetooth, SIG, WFA, IC
Dedicated Keys	PTT key, Alarm key, Power key
Ports	3.5mm audio connector / Magnetic USB connector plug
Display
Size	4.0 inch
Type	Corning Gorilla Glass 2 with Glove Touch, blank view display
Resolution	WVGA (480×800)
Outdoor Visibility	Yes
Colours	16.7m
Audio
Microphone	Dual Mic Solution with Noise Cancellation
Speaker	19mm Loud Speaker with Gore Protective Vents, Output up to 103dB
Multimedia
Audio Formats	MP3, WMA 9, AAC, AAC +, eAAC, AMR-NB/WB
Video Formats	Support AV I, MP4, 3GPP
Media Player	Android native + GMS
FM Radio	Yes
Camera	8MP auto focus rear, 1MP fixed focus front
LED Torch Light	Yes
Hazardous Area Certifications
ATEX	II 3 G, Ex ic IIC T4 Gc IP64, II 3 D Ex ic IIIC T135ºC Dc
CSA	Class I, Div 2 Groups A, B, C, D T4
IECEx	Ex ic IIC T4 Gc IP64, Ex ic IIIC T135ºC Dc IP6X
KC (Korean)	Ex ic IIC T4, Ex ic IIIB T135ºC
NCC (Brazil)	Ex ic IIC T4 Gc IP64, Ex ic IIIB T135ºC Dc IP64 Ta – -20ºC to +55ºC

ATEX Mobile Phone Zone 2 Hazardous Area - Ecom Smart-Ex 201 Smart Phone

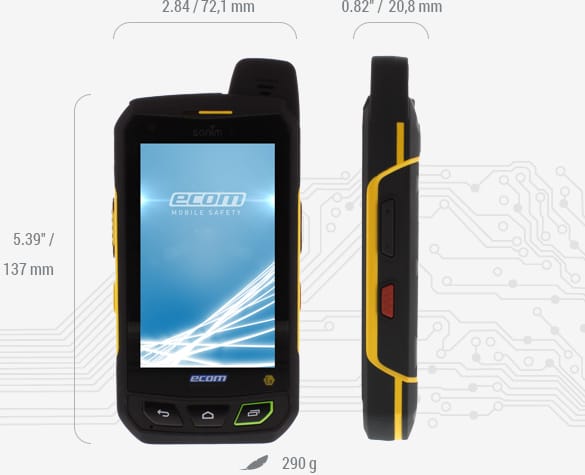

ATEX Mobile Phone – Ecom Smart-Ex 201 Smart Phone Dimensions

Hazardous Area INTERNATIONAL Certifications

Ecom Smart-Ex 201 smart phone is ATEX certified to most international hazardous area certification bodies:

ATEX (Europe)

II 3 G, Ex ic IIC T4 Gc IP64
II 3 D Ex ic IIIC T135ºC Dc

IECEx (International)

Ex ic IIC T4 Gc IP64
Ex ic IIIC T135ºC Dc IP6X

NCC (Brazil)

Ex ic IIC T4 Gc IP64
Ex ic IIIB T135ºC Dc IP64
Ta – -20ºC to +55ºC

CSA (Northern America)

Class I, Div 2 Groups A, B, C, D T4

KC – Korean Certification

Ex ic IIC T4
Ex ic IIIB T135ºC

Android

ANDROID 4.4.4 enables the intrinsically safe, hazardous area mobile phone to be used in hazardous areas without any compromises, especially when compared to conventional smartphones – with the online integration and the use of a variety of applications, the Ecom Smart – Ex 01 & 201 / Ecom Ex-Handy 09 & 209 allows an efficiency potential and access to productivity and safety applications in hazardous area locations.

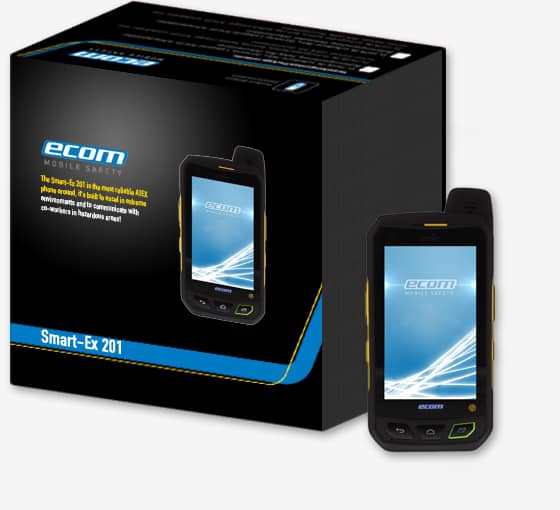

Ecom Smart-Ex 201 Smart Phone comes supplied with a charger, USB data cable and belt clip as standard.

Ecom Smart-Ex Hazardous Area Mobile & Smart Phones – Safe Working In Explosive Atmospheres

Ecom Mobile Communications

Ecom (a Pepperl & Fuchs brand) are responsible for protecting people, places and equipment in the most challenging of workplaces anywhere in the world. Typical applications and industries for Ecom hazardous area equipment include the global oil and gas industry, petrochemical plants, mining and underground processes.
