Flameproof LED Escape Lighting – Appleton DEMULED

LED Escape Lighting for Hazardous Areas

Zone 1 & Zone 2

Appleton ATX DEMULEDE042

Zone 1 & Zone 2 (Gas) | Zone 21 & Zone 22 (Dust) Hazardous Areas

The DEMULED Series of Flameproof LED Escape Lights, manufactured by Appleton ATX, provide lighting for access on exit routes in hazardous environments during an evacuation. They are suitable for installation in hazardous areas designated as Zone 1, Zone 2, Zone 21 and Zone 22.

The ATEX certified flameproof LED escape lights are suitable for use indoor or outdoors where protection against dirt, water and moisture is essential. Typical applications include oil refineries, petrochemical facilities and pulp and paper mills. The efficient design and compact size of these explosion proof and flameproof LED escape lights, means savings on installation, maintenance and energy costs. Contact us for more details.

Product: Flameproof LED Escape Light
Light Fitting Type: Linear Light Fitting
Manufacturer: Appleton ATX
Range: DEMULED
Lamp Type: LED
Lumen Output: 45 lumens
Efficacy: 110 lm/w
Voltage: 230 Vac, 50 Hz
LED Lumen Depreciation (L70): 60,000+ hours
Ambient Temperature: -30 °C to +55 °C (-22 °F to +131 °F)
Battery optimum operating temperature: -5 °C to +30 °C (-22 °F to +131 °F)
Emergency Duration: 1 Hour
Surface Temperature: +75 °C (167 °F)
Color Temperature: 5650K
Color Rendering Index (CRI): 70+
Cable Entries: M20
Option: SATI
Flameproof LED Escape Light Weight: 7.8 kg | 17.2 lbs
Flameproof LED Escape Light Volume: 36 dm³ | 2196.9 in³
Replaceable Components: Driver and Battery
ATX DEMULEDE042 is ideal for use in Zone 1 and Zone 21 as well as Zone 2 and Zone 22 hazardous area locations
Hazardous Area Certified: ATEX & IECEx
Light Fittings ATEX Zone 1 | Light Fittings ATEX Zone 2

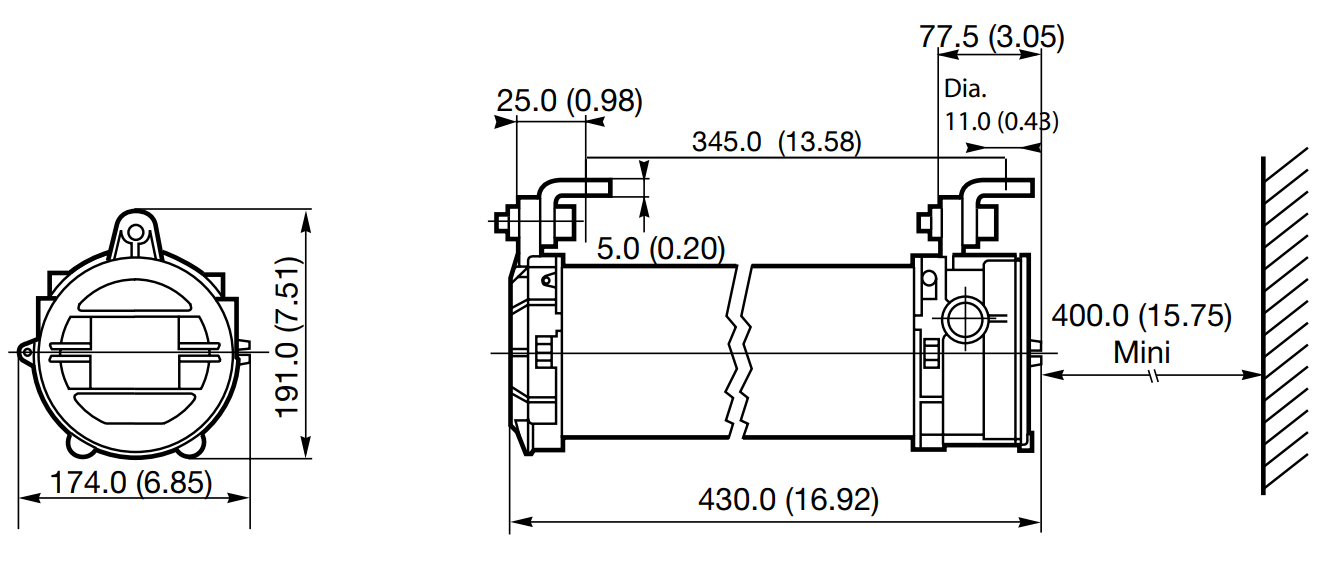

flameproof led escape light – dimensions

Dimensions in Millimeters (Inches)

Ordering LED Light Fittings

The following Appleton ATX part number generator explains the process for selecting the correct LED light fitting for Zone 1 & Zone 2 hazardous area lighting applications using the DEMULED range of flameproof LED escape lights.

DEMULED
|
Series:
DEMULED
Zone 1 and 2 – 21 and 22
ATEX/IECEx Certified

E
|
Light Fitting Type:
E – Escape

04
|
Power Output:
04 = 45 lm 1h
40 = 400 lm 1h

2
|
Cable Entry:
1 – 3/4″ NPT
2 – Metric M20
3 – Metric M25

X
|
Options:
A – Addressable

➡ See our technical resource section for further detailed information about hazardous area Zones and T-Class ratings.

ATEX & IECE x Hazardous Area Certifications and Compliances

• Certification Type: Appleton ATX DEMULED – Flameproof LED Escape Lights
— Gas: Zone 1 and 2 Hazardous Areas:
– Conforming to ATEX 94/9/CE: II 2 G
– Type of Explosion Protection: Ex d IIC
– Temperature Class: T6
— Dust: Zone 21 and 22 Hazardous Areas:
– Conforming to ATEX 94/9/CE: II 2 D
– Type of Explosion Protection: Ex tb IIIC
– Surface Temperature: +75 °C (167 °F)
• Ambient Temperature: -30 °C to +55 °C (-22 °F to +131 °F) 
• CE Declaration of Conformity: 50314
• ATEX Certificate: INERIS 15ATEX0056X
• IECEx Certificate: IECEx INE 15.0052X
• Index of Protection according EN/IEC 60529: IP66/68 (10m/1h)
• Impact Resistance (shock): IK09
• Internal Volume: > 2 dm3 (122 in³) – 2 liters
