Ex d Flameproof Heaters

Chromalox RIA2 flameproof convection heaters provide ATEX certified heating for harsh, industrial applications for Zone 1 and Zone 2 (Gas) hazardous areas.

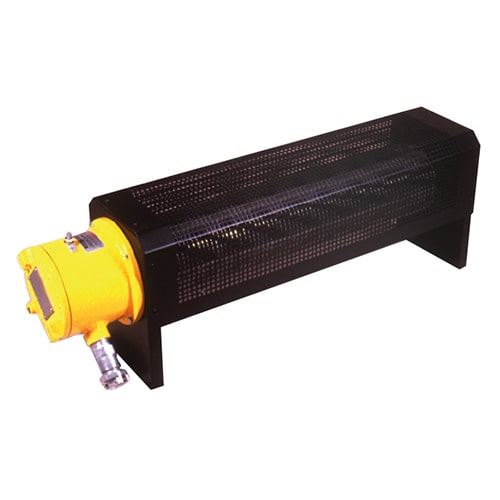

The Chromalox RIA2 has a painted steel terminal enclosure and steel casing which surrounds 304 grade stainless steel elements with aluminium fins.

RIA2 Ex d Flameproof Heaters are available with power outputs from 250W to 6200W (230V 1 phase and 400V 3 phase depending on temperature class and length, 320mm to 2128mm) and units are available with built in thermostats for internal adjustment (RIA2T) or external adjustment (RIA2TD) .

Chromalox RIA2 hazardous area convection heaters are certified to meet ATEX equipment directive standards, suitable for ambient temperatures from -20ºC to 40ºC (14ºF to 104ºF) and have an ingress protection rating of IP65. The RIA2 is suitable for floor mounting only.

Hazardous Area Certification

ATEX certified Ex d flameproof heaters

• Explosive Gas: ATEX II 2 G – Ex d II C T1 to T6 certified for floor mounting
• Rated for ambient operating temperatures: -20°C to 40°C (14°F to 104°F) and storage temperatures to -40°C (-40°F)
• Ingress Protection Rating: IP65

FLAMEPROOF EX D

What Does Flameproof Mean?

Principle: Flameproof is a type of protection in which the parts which could ignite an explosive atmosphere are located inside an enclosure which is able to withstand the pressure of an explosion of the explosive mixture inside. It also prevents the transmission of the explosion to the explosive atmosphere surrounding the enclosure. Technically unavoidable gaps are so long and narrow that hot gases jetting out will have lost their power to cause ignition by the time they reach the outside of the enclosure, or, alternatively, if the gaps are only required for the manufacturing process they may be sealed with an adhesive.

Important design parameters:

• Mechanical strength in accordance with a defined safety factor to withstand internal explosion pressure.
• As an orientation value, it may be assumed that inside the sphere approx. 0.8 MPa (8 bar) can be generated and that this sphere used as an Ex d enclosure must be able to withstand a pressure of 1.2 MPa (12 bar).
• Any gap between two parts of the enclosure must be kept so narrow and long that hot gas flowing out will not be able to ignite any explosive atmosphere which may be present in the potentially explosive atmosphere.
• The parameters for the gaps preventing the transmission of the ignition, width/length, are different for the explosion subgroups IIA, IIB and IIC. The most stringent requirements with regard to the gap parameters apply to enclosures in explosion subgroup IIC.

➡ Ex d Motor Starters | Ex d Enclosures & Junction Boxes | Ex d Lighting | Ex d Plugs & Sockets | Ex d Control Panels

Chromalox ria2

ex d flameproof heaters – specification

Ex d Flameproof Heaters | Product Range

Length (mm)	Weight (kg)	Temperature Class
		T6	T5	T4	T3	T2	T1
Min 320	10	–	–	–	250W RIA2*002/3/T3	450W RIA2*004/3/T2	800W RIA2*008/3/T1
780	16	–	300W RIA2*003/3/T5	600W RIA2*006/3/T4	1200W RIA2*012/3/T3	2150W RIA2*021/3/T2	3900W RIA2*039/3/T1
1136	21	300W RIA2*003/3/T6	500W RIA2*005/3/T5	900W RIA2*009/3/T4	1900W RIA2*019/3/T3	3400W RIA2*034/3/T2	6200W RIA2*062/3/T1
1580	26	450W RIA2*004/3/T6	750W RIA2*007/3/T5	1300W RIA2*013/3/T4	2800W RIA2*028/3/T3	5000W RIA2*050/3/T2	–
Max 2128	33	650W RIA2*006/3/T6	1000W RIA2*010/3/T5	1800W RIA2*018/3/T4	3900W RIA2*039/3/T3	–	–
* Add T for thermostat with internal adjustment or TD for thermostat with external adjustment



---
