Self Regulating Trace Heating | Eltherm ELSR-SH ATEX Trace Heating Cable (Up to 250 Degrees Celsius)

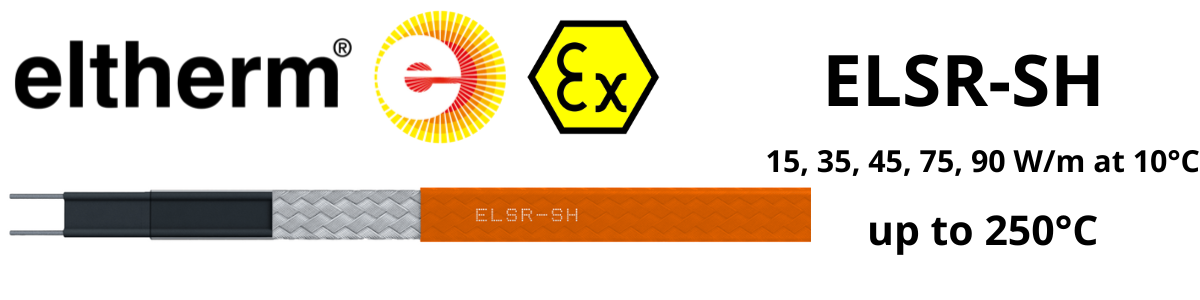

Eltherm ELSR-H Self Regulating Trace Heating

Thorne & Derrick | Distributed from Stock | UK & Export Sales | Customer Service Excellence | ATEX Compliant Solutions

Self Regulating Trace Heating

ATEX Trace Heating Cable | Eltherm ELSR-SH

The Eltherm ELSR-SH high temperature self-regulating trace heating cables is designed for temperature maintenance in industrial processes and applications in hazardous areas – and is suitable for use up to 250 °C . The high chemical resistance allows the cables to be installed in environments with exposure to aggressive influences. With IECEx and ATEX Certification, Eltherm ELSR-SH trace heating cables are suitable for Zone 1 and Zone 2 hazardous areas – and have a temperature Class of T3/T2.

The self-regulating trace heating cable provides frost protection and temperature maintenance to pipework, silos vessels ,tanks, valves and pumps. Suitable for use in the following industries:

  • Chemistry and Petrochemistry
  • Oil and Gas Industry
  • Power plants
  • Water and sanitation utilities

Our Team of Trained Sales Engineers are available to advise and support your ATEX trace heating enquiries – this includes design and supply of complex multi-kilometre, major-project systems to custom heat trace cable kits for the protection of winterisation against plant and factory facilities.

Eltherm ELSR-SH trace HEATing CABLE – SPECIFICATION

Eltherm ELSR-SH Heater Cable wattages per metre at 10°C – 15, 35, 45, 75 and 90 watts.

  • Nominal Supply Voltage : 230v
  • Maximum Exposure Temperature : 250°C
  • Minimum Installation Temperature : -60° Celsius
  • Minimum Heater Cable Bend Radius : 25mm
  • Heater Cable Outer Jacket: Fluoropolymer
  • Bus Wire: Nickel plated copper, 1.23 mm²

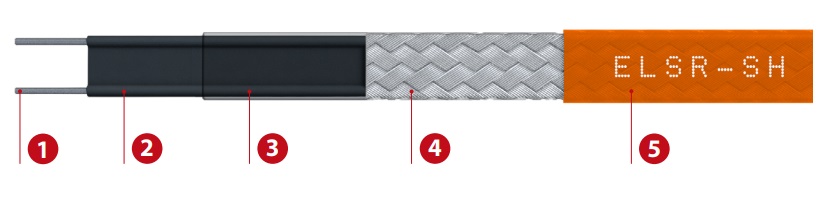

Self-regulating trace heating cable specification

  1. Bus wire – nickel plated copper, 1.23 mm²
  2. Self-regulating heating element
  3. Insulation
  4. Protective braid – (Cu, tin plated)
  5. Outer jacket – fluoropolymer

Eltherm ELSR-SH self-regulating heater cables has a BOT cable design which has a high chemical resistance and is able to withstand aggressive chemicals, oil and fuel for improved service life due to the protective braid and fluoropolymer outer jacket.

Hazardous Area Classifications

The ELSR-SH hazardous area trace heating cable has both ATEX and IECEx approvals suitable for use in Zone 1 and Zone 2 hazardous areas.

Hazardous Area Heating ATEXTrace Heater Classification:

  • II 2G Ex 60079-30-1 IIC Gb
  • II 2D Ex 60079-30-1 IIIC Db

Hazardous Area Heating ATEXSystem Classification:

  • II 2G Ex 60079-30-1 eb IIC T3 Gb
  • II 2D Ex 60079-30-1 tb IIIC T220°C Db

Hazardous Area Heating ATEXHazardous Area Certification:

  • IECEx EPS 18.0019 U
  • IECEx EPS 18.0014 X
  • EPS 18 ATEX 1 028 U
  • EPS 18 ATEX 1 020 X
  • CML 21 UKEX 3806 U

Temperature Class: T3/T2

Eltherm ELSR-SH Benefits

  • Temperature Classification T3*
  • Five Nominal outputs
  • Moisture proof
  • Resistant to chemicals
  • Use in hazardous areas

*Except for 90 W/m: T2

Eltherm ELSR-SH

The Eltherm ELSR-SH high temperature trace heating range is designed for temperature maintenance in industrial processes and applications in hazardous areas. The trace heaters’ high chemical resistance allows them to be installed in environments with exposure to aggressive influences.

TRACE HEATING CABLE SELECTION TABLE – ELTHERM ELSR-SH

Contact T&D for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heater cable for your application.

Eltherm ELSR-SH Heater Cable Nominal Output Cable Dimensions Approx. (mm) Cable Weight Approx. (g/m)
ELSR-SH-15-2-BOT 15 W/m at 10ºC 14 x 5.4 146
ELSR-SH-35-2-BOT 35 W/m at 10ºC 14 x 5.4 146
ELSR-SH-45-2-BOT 45 W/m at 10ºC 14 x 5.4 146
ELSR-SH-75-2-BOT 75 W/m at 10ºC 14 x 5.4 146
ELSR-SH-90-2-BOT 90 W/m at 10ºC 14 x 5.4 146

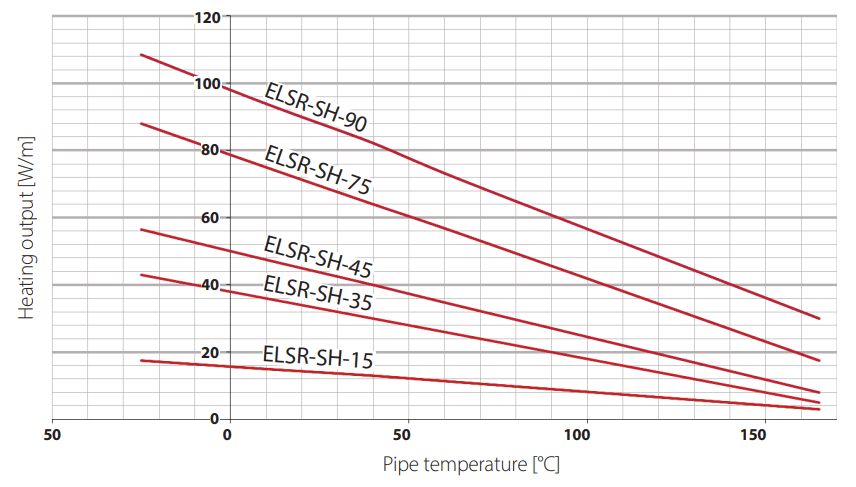

ELSR SH Graph

Eltherm ELSR-SH heater cable power output on insulated metallic pipes in accordance with EN 62395-1

ELSR-sh Heating circuit length

Switch on temperature [°C]  Nominal
fuse rating
[A]		 Heating circuit length*1 [m]
ELSR-SH15-2-BOT ELSR-SH35-2-BOT ELSR-SH45-2-BOT ELSR-SH75-2-BOT ELSR-SH90-2-BOT
10 10 113.0 50.0 36.0 18.0 17.0
16 172.0 80.0 58.0 30.0 27.0
20 172.0 99.0 72.0 37.0 34.0
25 172.0 107.0 90.0 47.0 42.0
32 172.0 107.0 98.0 60.0 54.0
40 172.0 107.0 98.0 73.0 68.0
0 10 106.0 47.0 34.0 17.0 16.0
16 169.0 75.0 55.0 28.0 26.0
20 172.0 94.0 69.0 35.0 32.0
25 172.0 107.0 86.0 44.0 40.0
32 172.0 107.0 98.0 57.0 52.0
40 172.0 107.0 98.0 71.0 64.0
-10 10 99.0 44.0 32.0 16.0 15.0
16 159.00 71.0 52.0 26.0 25.0
20 172.00 89.0 65.0 33.0 31.0
25 172.00 107.0 81.0 41.0 38.0
32 172.00 107.0 98.0 53.0 50.0
40 172.00 107.0 98.0 66.0 62.0
-20 10 94.0 42.0 30.0 15.0 15.0
16 150.0 67.0 48.0 25.0 24.0
20 172.0 84.0 60.0 31.0 30.0
25 172.0 105.0 75.0 38.0 37.0
32 172.0 107.5 96.0 50.0 48.0
40 172.0 107.5 98.0 62.0 60.0
-30 10 89.0 40.0 27.5 15.0 14.0
16 142.0 64.0 44.0 24.0 23.0
20 172.0 80.0 55.0 30.0 29.0
25 172.0 100.0 68.75 37.0 36.0
32 172.0 107.5 88.0 48.0 46.0
40 172.0 107.5 98.0 60.0 58.0
-40 10 84.0 38.0 25.0 14.0 14.0
16 135.0 61.0 40.0 22.0 22.0
20 169.0 76.0 50.0 28.0 28.0
25 172.0 95.0 62.5 35.0 35.0
32 172.0 107.5 80.0 45.0 44.0
40 172.0 107.5 98.0 56.0 56.0

*1 Heating circuit lengths on the following conditions:

  • 230 V nominal voltage
  • Delayed action circuit breakers (C-characteristic) with 80 % max. load
  • Maximum 10 % line voltage drop on heating cable bus wire
  • Power connection to one heater end

Self-Regulating Trace Heating System

A Trace Heater
B Power Connection Kit
C End Termination Kit
D Junction Box
E Pipe Mounting Bracket
F Fasteners and Self-adhesive Tapes, Foils
G Insulation Bushing
H Warning Sign
I Temperature Controller
J Temperature Sensor

Self-Regulating Trace Heating System
