Ex d Flameproof Enclosure Suits Zone 1 & Zone 2 Hazardous Areas – Abtech SSD-AL666

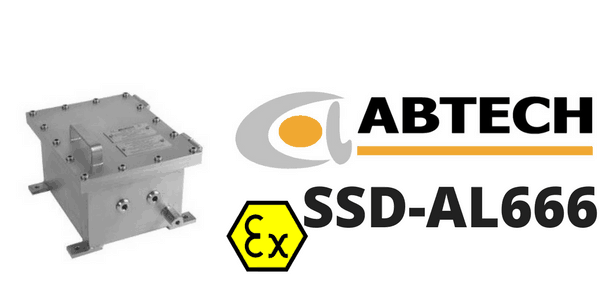

Abtech SSD-AL666 Aluminium Electrical Enclosures – Ex d

Abtech SSD-AL666 aluminium hazardous area enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas – the Ex d flameproof enclosure allows potentially sparking equipment to be safely installed in areas where potentially explosive gases or dust may be present.

• Ex db (Flameproof)
• Ex tb (Dust)
• Ex db [ia/ib] (Intrinsically Safe)

Ex d Enclosures Flameproof

Zone 1 & Zone 2 Hazardous Area

Abtech SSD-AL666 electrical enclosures are suitable for both industrial and hazardous areas – manufactured from aluminium the Ex d enclosures also come painted externally to RAL7001 grey providing significant levels of environmental protection.

Protection Degree IP66 to EN60529.

Hazardous Area Certification

• Hazardous Area Classification – Group IIB Category 2 GD (Zone 1/21 and 2/22), Option: Group IIB+ H2 Category 2 GD (Zone 1/21 and 2/22)
• Type of Explosion Protection – Ex db (Flameproof), Ex tb (Dust), Ex db [ia/ib] (Intrinsically Safe)*
• Hazardous Area Apparatus Coding – Ex db IIB or IIB+H2 T* Gb, Ex tb* IIIC T* °C Db
  Ex db [ia Ga] IIB or IIB+H2 T6 Gb, Ex tb [ia Da] IIIC T85 °C Db
  Ex db [ib Gb] IIB or IIB+H2 T6 Gb, Ex tb [ib Db] IIIC T85 °C Db
• Certificate Number – INERIS 13ATEX0019X / IECEx INE14.0061X

Abtech SSD-AL666

Abtech SSD Electrical Enclosure

External Dimensions (mm)

Internal Dimensions (mm)

Fixing Dimensions (mm)

Mounting Plate (mm)

Enclosure Weight (kg)

A

B

C

D

E

F

X1/X2

Y1/Y2

Z

G

H

SSD-AL666

610

832

340

497

714

240

580/ 405

630/ 805

12

450

670

119

Zone 1 & Zone 2

Temperature Rating

-20°C ≤ Tamb ≤ 40°C (with options for +45°C, +50°C, +55°C and +60°C)

Voltage Rating

Up to 24kV ac or 1500V dc

Abtech SSD Aluminium – Ex d Enclosure Dimensions
