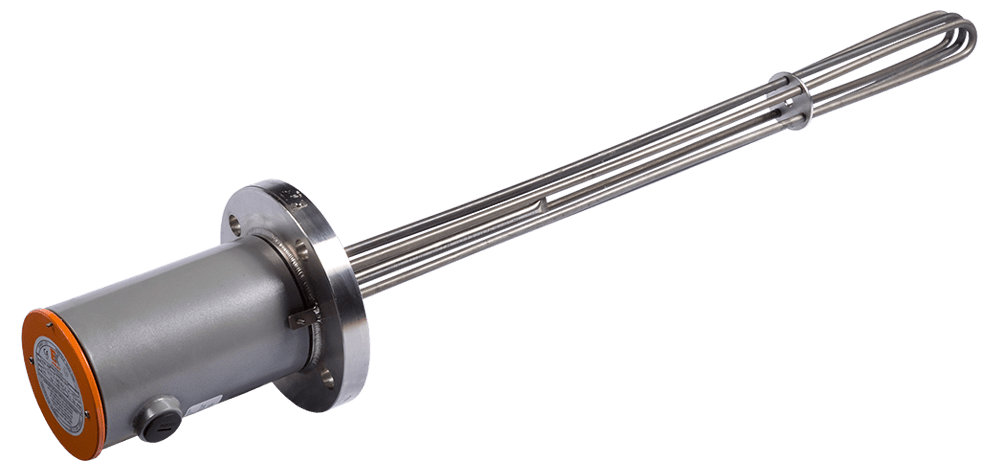

EXHEAT FP 4 flameproof rod type immersion heater is suitable for use for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas. Immersion heaters provide controlled heating which can be tailored to suit specific process instrumentation requirements.

Typical applications for the EXHEAT FP range of rod type immersion heaters include tank heating for oil and water, boiler equipment and frost protection.

The EXHEAT FP 4 is suitable for applications where the ambient temperature is between -50°C to 60°C. The terminal enclosure is manufactured from either mild or 316 grade stainless steel and certified as IP66.

EXHEAT FP Flameproof Immersion Heater

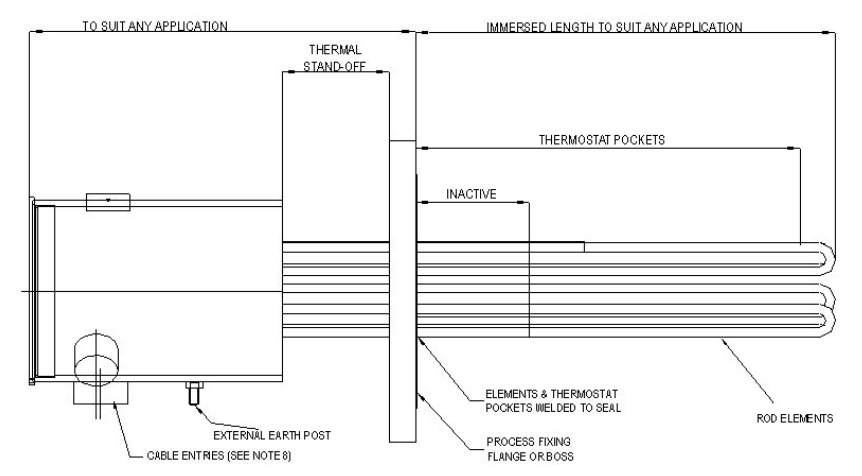

EXHEAT FP 4 specification

The FP 4 rod-type immersion heater is certified for use in hazardous areas where the explosive atmosphere is classified as a Zone 1 or 2 (IIA, IIB, IIC) gas group, or a Zone 21 or 22 (IIIA, IIIB, IIIC) dust group.

Enclosure: Mild steel or 316 stainless steel, external and internal earths, screwed terminal cover, finished in epoxy paint if required
Elements: A choice of rod-type elements comprising of 80/20 nickel chrome resistance wire, compacted in high purity magnesium oxide insulating powder and encased in either Incoloy or stainless steel sheath, secured by
compression fittings, brazing or welding, depending upon the process application
Controls: Heater over-temperature protection is fitted as standard (optional process temperature sensing devices can be incorporated in the form of thermostats, RTD’s or thermocouples)
Mounting: Any threaded NPT or BSP boss, or flange in any material, can be specified within the limits of the design parameters; heater terminal box can be either ‘direct-on’ or ‘stand-off’, depending on process temperature
Rating: To suit process requirements within the design and certification parameters
Voltage: Any electrical supply up to 690V (600V CSA)

Terminal Box Type	Hazardous Area	Minimum Flange Size Without Stand Off		KW Load with a Maximum Immersed Length of 2800 mm
Terminal Box Type	Hazardous Area	Inch	mm	Max number of Cable Entries	Max number of elements without Stand off
EXHEAT FP 4	Zone 1 & Zone 2	3 Inches	75 mm	1 off M25 & 1 off M20	6

hazardous area Certifications

ATEX/IECEx II 2 G/D Ex d IIC T1 to T6 Gb Zone 1 and 2
ATEX/IECEx Ex tb IIIC T450°C to T85°C Db Zone 21 and 22 (IP66)
CSA (CEC/NEC) Class I, Div 1, Groups A, B, C, D; T1 to T6, Enclosure Type/NEMA 4 or 4X
CSA (CEC) Ex d IIC; T1 to T6 Gb, IP66 (CAN)
CSA (NEC) Class I, Zone 1, AEx d IIC; T1 to T6 Gb, IP66 (USA)
CU TR (EAC), CNEx, CCOE (CCEs), Inmetro & KGS
