Fisher Baumann 24003 Universal Globe Valve is part of the sliding stem valve range that is well suited for the control of flow or temperature where mixing or diverting service is required.

The Baumann 24003 is a 3-way valve that uses a rugged cast bronze or CF8M stainless steel body with S31600 austenitic stainless steel trim for extended service life..

Fisher Baumann 24003 Universal Globe Valve

Product Features

  • Compact and light weight design reduces installed piping costs
  • Optional ENVIRO-SEAL™ packing system to meet critical emission control requirements; suitable for use in light duty chemical service (not for use in corrosive service)  (This option available in the stainless steel version only)
  • High quality type 316 austenitic stainless steel trim materials
  • Superior dual plug and stem guiding provides increased stability during plug travel
  • Multiple trim capacity reductions available
    to meet changing process requirements
  • Epoxy powder coated actuator with stainless steel fasteners for corrosion resistance
  • Multi-spring, field reversible actuator with reduced deadband, permits direct operation from remote signal devices
  • Entire actuator and yoke can be removed
    from the valve assembly while maintaining packing integrity
  • FIELDVUE™ Digital Valve Controllers available for remote calibration and diagnostics in facilities utilizing the PlantWeb™ architecture

FISHER BAUMANN 24003 UNIVERSAL GLOBE VALVE

PRODUCT Specification

Sizes NPS 1/2, 1, 1-1/2, 2
Connections NPT threaded or welded on flanges(SS only)
Body Material Bronze or 316 SS
Valve Body Rating Bronze: 250 psi  @ 150°F/150 psi @ 400ºF; -Stainless Steel: 720 psi @ 100°F/480 psi @ 500°F
Trim Material 316 SS
Trim Characteristic Linear
Seat Leakage Class III
Cv Ratings 1 to 40
Bonnet Type Standard threaded
Packing Material PTFE V-ring, PTFE ENVIRO-SEAL™, or Graphite
Temperature Range -46ºC to 204ºC  (-50ºF to 400ºF)

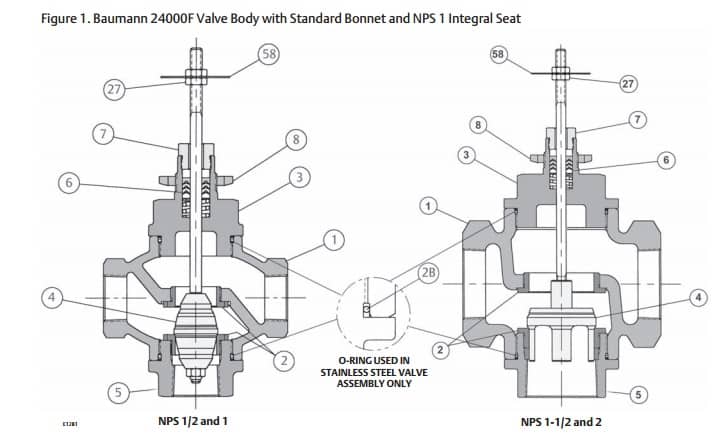

Fisher Baumann 24003 Universal Globe Valve - Valve Body

Fisher Baumann 24003 Universal Globe Valve – Valve Body

FISHER BAUMANN 24003 Universal globe VALVE

Materials of construction

Key No Description Material
Bronze Stainless Steel
1 Valve Body Bronze ASTM B62 ASTM A351 CF8M
2 Seat Rings ASTM A276 S31600 Condition A ASTM A276 S31600 Condition A
28 O-Ring N/A TFE/P (tetrafluoroethylene/propylene)
3 Bonnet Bronze ASTM B62 ASTM A351 CF8M
4 Plug & Stem Assembly ASTM A276 S31600 Condition A ASTM A276 S31600 Condition A
5 Bottom Port Bronze ASTM B62 ASTM A351 CF8M
6 Packing Standard PTFE (Polytetrafluoroethylene) / PTFE, 25% carbon filled
Optional Molded Graphite Ribbon (Flexible Graphite)
ENVIRO-SEAL (Stainless Steel ONLY)
7 Packing Follower ASTM A276 S31600 Condition A Stainless Steel
8 Drive Nut (Yoke) ASTM A194 S30400 Gr. 8
27 Locknuts Stainless Steel (18-8 SST)
58 Travel Indicator ASTM A240 S30400
