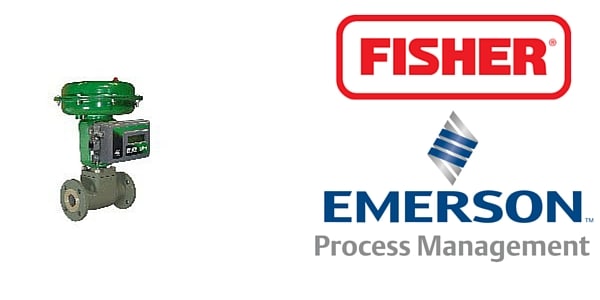

Fisher Baumann 24000CVF & SVF Universal Globe Valves – Sliding Stem Valves

Fisher Baumann 24000CVF & SVF Universal Globe Valves - Sliding Stem Valves

Fisher Baumann 24000CVF & SVF Universal Globe Valves – Sliding Stem Valves

Fisher Baumann 24000CVF & SVF Universal Globe Valve are part of the sliding stem valve range that can be used for the control of pressure, temperature, level, and flow.

The Baumann 24000CVF & SVF valves are available with ASME CL150 RF, CL300 RF, or PN 10-40 flanged end connections.

The 24000CVF & SVF universal globe valves are compact and light weight making them ideal for installation in areas where space is at a premium.

The design of the 24000CVF & SVF aids high performance as it features low deadband and hysteresis, high flow capacity, superb control characteristics, tight shutoff and advanced packing systems to meet demanding service conditions.

Fisher Baumann 24000CVF & SVF Universal Globe Valve

Product Features

  • Compact and light weight design reduces installed piping costs
  • ASME and EN end connection options to meet your piping standards
  • Full lift post guided contoured plug allows flushing of debris through valve body
  • Type 316 austenitic stainless steel trim material is standard; type 416 stainless steel trim is available
  • Multiple trim options are available to meet changing process requirements.
  • Epoxy powder coated actuator with stainless steel fasteners provides corrosion resistance
  • Multi-spring field reversible actuator with reduced deadband permits direct operation from remote signal devices
  • Fisher® FIELDVUE Digital Valve Controller available for remote calibration and diagnostics in facilities utilizing the PlantWeb™ architecture
  • ENVIRO-SEAL™ packing available for increased packing life and integrity
  • NOLEEK™ Bellows Bonnet suitable for a
    wide range of ope™rating temperatures
  • Extension bonnets in multiple lengths
    available for elevated temperature and cryogenic application service

FISHER BAUMANN 24000CVF & SVF UNIVERSAL GLOBE VALVE

PRODUCT Specification

Sizes NPS 1/2, 3/4, 1, 1-1/2, 2 or DN 15, 20, 25, 40, 50
Connections Mates with CL150 or 300 RF Flanges or PN 10-40 RF Flanges
Body Material Cast Carbon Steel (Dual Certified ASTM A216 WCC/GP240GH WN 1.0619) or Cast 316L SST (ASTM A351 CF3M)
Valve Body Rating CL150 or 300 per ASME B16.34 or DIN PN 10-40 EN 1092-1
Trim Material 316 SS (Cl IV) or PTFE Seat (Cl VI)
Trim Characteristic Equal % or Linear
Seat Leakage ANSI/FCI 70-2 Class IV or VI
Cv Ratings 0.00013 to 53.7
Bonnet Type Standard bolted, extensions, and bellows seal

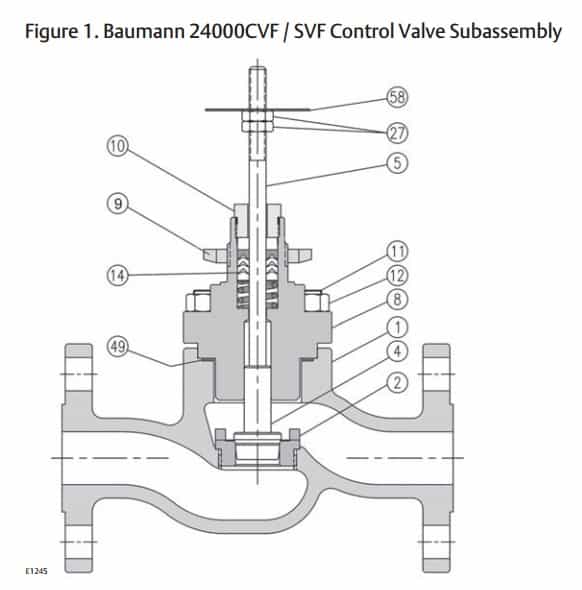

Fisher Baumann 24000CVF & SVF Universal Globe Valve - Valve Body

Fisher Baumann 24000CVF & SVF Universal Globe Valve – Valve Body

FISHER BAUMANN 24000 Universal globe VALVE

Materials of construction

Key No Description Material
1 Valve Body, Carbon Steel Cast Carbon Steel (ASME SA216 WCC and EN10213 1.0619 Dual Certified)
Valve Body, Stainless Steel ASME SA351 CF3M
2 Seat Ring (For Low Flow Trim, Refer to tables 2 & 3 data sheet) Standard ASTM A276 S31600/ S31603 Dual Certified / Optional ASTM A582 S41600 Condition T
4 Plug (Metal Seat) Cv < 3.3 ASME SA479 S21800 (standard) / ASTM A582 S41600 Condition T (optional)
Plug (Metal Seat) Cv > 3.7 ASTM A276 S31600/ S31603(standard) / ASTM A582 S41600 Condition T (optional)
Plug (Soft Seat) ASTM A276 S31600/ S31603 with PTFE (Polytetrafluoroethylene) insert
5 Stem ASTM A276 S31600
8 Bonnet, Carbon Steel (Std) Cast Carbon Steel (ASME SA216 WCC and EN10213 1.0619 Dual Certified)
Bonnet, Stainless Steel (Std) ASME SA351 CF3M
Bonnet (extended)(1) ASME SA351 CF3M
Bonnet (NOLEEK)(1) ASME SA351 CF3M & ASTM A479 S31600/S31603, Annealed
8a Bonnet Bushing(2) ASTM A276 S44004, HT 56-60 HRC
9 Drive Nut (Yoke) S30400
10 Packing Follower ASTM A276 S31600/S31603 Dual Certified
11 Stud ASME SA193 Grade B8, Class 1
12 Nut ASME SA194 Grade 8
14 V-Ring Packing (standard) Refer to figure 4, table 4 data sheet
Packing (optional) Refer to figures 5 & 6, tables 5 & 6 data sheet
27 Locknuts Stainless Steel (18-8 SST)
49 Body Gasket Graphite Grade GHR with S31600 Insert
58 Travel Indicator ASME SA240 S30400
