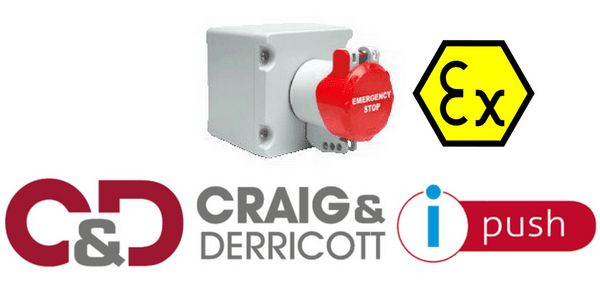

HAZARDOUS AREA Emergency STOP CONTROL STATION – ATEX CERTIFIED

CRAIG & DERRICOTT EMSH/P/F1/MG/COZ

ATEX Zone 22 Control Stations

ATEX Zone 22 Emergency Stop control station, pull-to-reset.
U29 die-cast flap cover. Used to prevent unauthorised resetting of stayput actuators. The flap is depressed to actuate the pushbutton with one or more padlocks in position. This ensures resetting cannot take place untill all of the padlocks are removed.
Die-cast aluminium enclosure with 2 x M20 entries & external earth.
4 off Ø5.5 fixings.
Sealing to IP65
1 N/O + 1 N/C contact blocks
Electrical ratings:-
Control Station Utilisation Category – AC15 A600
Rated insulation voltage(U_i) – 660V
Rated operational voltage(U_e) – 250V/440V
Rated operational current(I_e) – 3A/1.8A
Continuous thermal current(I_th) – 16A

ATEX CERTIFICATION CODE

ATEX Ex II 3D
ATEX EX tD A22 IP65 T85^oC

Hazardous area emergency stop type control station complies in part or full with: BS EN 50014, BS EN 50281-1-1, BS EN 60529, BS EN 60947-3, BS EN 60204-1

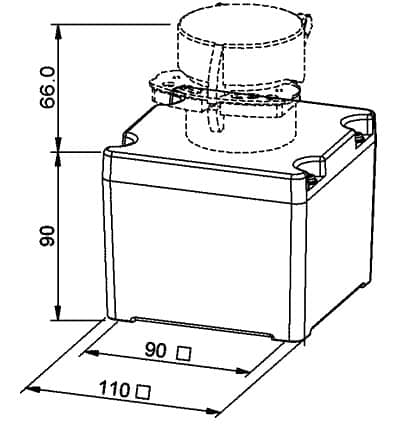

Craig & Derricott EMSH/P/F1/MG/COZ – Dimensions
