SPX-WL84-HO-EMX25 | ATEX Light Fittings | Zone 1 High Output Emergency Linear Light Fitting Hazardous Area

ATEX Light Fittings Zone 1 Emergency Linear Light Fitting Hazardous Area SPX-WL84-EMX25

ATEX Light Fittings Zone 1 Emergency Linear Hazardous Area | SPX-WL84-EMX25

ATEX Light Fittings

Raytec SPX-WL84-HO-EMX25 | Linear Light Fitting Zone 1 & Zone 21 6,130 Lumens

Zone 1 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres

SPARTAN Linear High Output Emergency range of Zone 1 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations offering twice the lumen output than the standard SPARTAN Linear whilst retaining the same lighting look and feel.

The increase in power means fewer luminaires are required across an installation when compared to traditional Linear fittings, while SPARTAN Linear High Output can also be utilised as a cost-effective alternative to low bay luminaires.

The SPX-WL84-HO-EMX25 light fittings are globally certified to Zone 1 offering long-life LED technology.

Hazardous Area Rating: Zone 1 – Gas & Dust

Zone 1 Gas

  • II 2 G D
  • Ex eb mb IIC T4 Gb
  • 20°C to +50°C for emergency variants

Zone 21 Dust

  • Ex tb IIIC T80°C Db
  • -20°C to +50°C for emergency variants

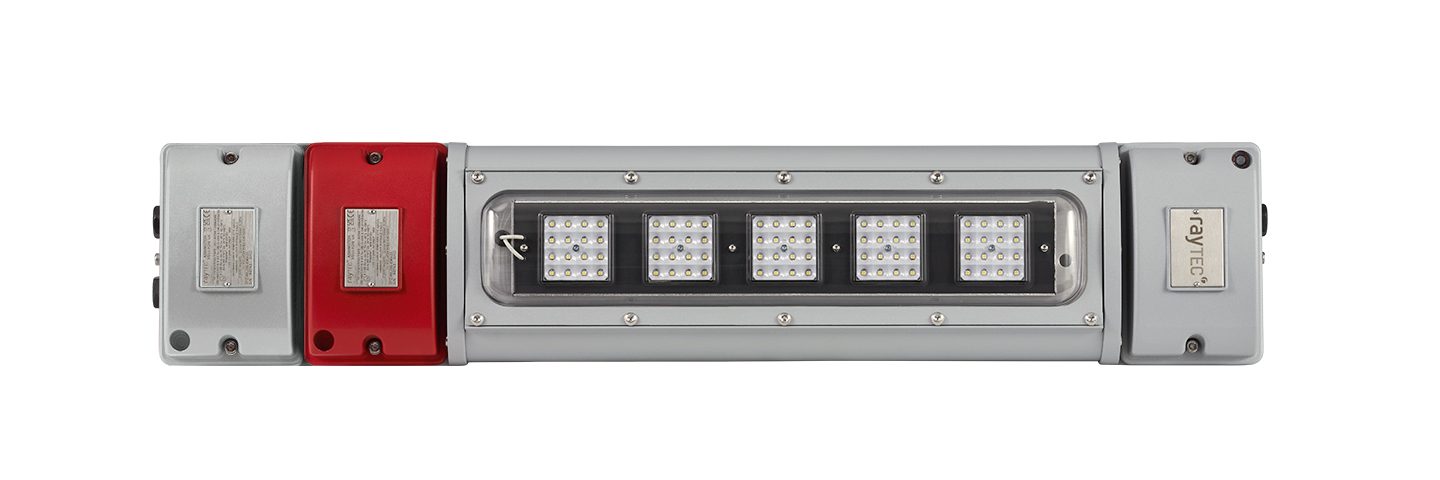

SPARTAN Linear WL84-HO-EMX25

SPARTAN Linear WL84-HO-EMX25

SPX-WL84-HO-EMX25 Features

SPARTAN Linear Emergency has been designed to provide extreme levels of durability and features a unique modular design which makes maintenance quick and easy.

All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.

Modular Design

Key components such as the LED and PSU modules are easily accessible for straightforward maintenance and inspection.

Retrofittable

Linear High Output version has been designed with the same dimensions, fixing centres and cable entries as traditional fluorescent fittings making it a direct replacement.

Power & Performance

High lumen output up to 12 kilolumens and a range of beam patterns to effectively light up large open areas offering a better output than the standard linear version.

Bespoke LED

Raytec are specialists in LEDs and all their products are designed around LEDs with bespoke housing for optimum performance and reliability.

Robust and Durable

Housed in marine grade aluminium with stainless steel fasteners and brackets, SPARTAN Linear is IP66 and IP67 rated and can survive in the most extreme environments.

ZONE 1 LIGHT FITTINGS

FEATURES & BENEFITS

ATEX Light Fittings

ATEX Light Fittings

  • Raytec Part Number – SPX-WL84-HO-EMX25
  • ATEX & IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
  • UKCA approved
  • Ultra Long Life LED
  • High Lumen Output LED
  • Fully Retrofittable
  • Easy Installation and Maintenance
  • Emergency Variants
  • Wide Operating Temp -40° to +60°
  • Zone 2 Variants available
  • 5 Year Warranty
  • UK Designed and Manufacture



Raytec Spartan ATEX Light Fittings

Raytec Spartan ATEX Light Fittings

Choice of Optics

Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.

SPX-WL84-HO-EMX25 Standard Optics

SPX-WL84 Symmetrical Optics

SPX-WL84-HO-EMX25 Symmetrical Optics

SPX-WL84 Asymmetrical Optics

SPX-WL84-HO-EMX25 Asymmetrical Optics



SPX-WL84 Dimensions

Zone 1 Light Fittings – Product Dimensions

RAYTEC SPARTAN LIGHT FITTINGS

TECHNICAL SPECIFICATION

WL84-HO-EMX25
ATEX Rating ATEX UKEX and IEC Ex rated for Gas and Dust
Hazardous Area Rating Zone 1 (Gas), Zone 21 (Dust)
Certificates ATEX: CML14ATEX3119
IECEx: IECExCML15.0001
UKEX: CML21UKEX3105
Gas II 2 G D
Ex eb mb IIC T4 Gb
Ta= -40°C to+60°C
(-20°C to +50°C for emergency variants)
Dust Ex tb IIIC T80°C Db
Ta= -40°C to+60°C
(-20°C to +50°C for emergency variants)
ABS Certificate Number # 20-1990083-PDA

SPX-WL84-HO-EMX25 Specification

Certification: ATEX and IEC Ex rated for Zone 1 and 21 Gas and Dust. UKCA approved.
Beam Angles: 120°C, Equivalent to 2 x 18W T8 Fluorescent
Symmetrical and Asymmetrical Optics
Input: Mains Voltage 110-254V 50/60 Hz AC only
Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC
Consumption: 56W
LED Type: Platinum SMT LEDs
Number of LEDs: 80
Power Output: Up to 6,130 lumens
Wavelength: White-Light (6,500K+)
IP Rating: IP66 and IP67
IK Rating: IK10
Temperature Range: -20°C to +50°C
Weight:  7kg (15.4lbs)
Cable Entries: 2xM20 cable entries at both ends, through wired as standard (other entries available upon request), dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs
Enclosure
 Marine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steel
Unit Colour: Silver (RAL 9006)
Emergency Cover – Red (RAL 3024)
Function: Self-testing intelligent emergency
System Health Indicator: Tri-colour LED indicator
Emergency Duration: Up to 3hrs @ 25% power
Other options available
Emergency Battery: Ni/Cd 12V
Emergency Charge Time: 20 hours

Zone 1 Light Fittings Product Codes

SPX-WL84-HO SPARTAN High Output Linear 80 LED, Zone 1/21, White-Light
SPX-WL84-EMX25-HO SPARTAN High Output Linear 80 LED, Zone 1/21, White-Light-  Intelligent Emergency variant (25% Output)
SPX-WL84-HO-SP SPARTAN High Output Linear 80 LED, Zone 1/21, White-Light Spigot Mount



ATEX Lighting Hazardous Area Lighting Zone 1 Zone 2 ATEX

ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
