VEGA VEGAFLEX 63 Guided Wave Radar Level Sensor
VEGA Level Sensors
Level Sensor VEGA VEGAFLEX 63
VEGA VEGAFLEX 63 guided wave radar level sensor provides continuous level measurement for liquids in all types of industries in environments with vapours, buildup and condensation.
VEGAFLEX 63Â level sensor features a smooth, and high resistant plastic coating that is ideal for measurement of aggressive and corrosive liquids in applications with high hygienic requirements.
The set up is simple and the level sensor has low maintenance costs thanks to the proven mechanical construction.
The TDR sensor delivers precision and reliability and offers a cost effective solution to continuous level measurement.

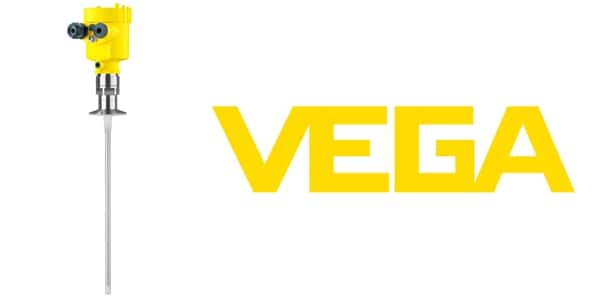

VEGA VEGAFLEX 63 Guided Wave Radar Level Sensor
Product Specifications
| Measuring Range – Distance | Process Pressure | Process Temperature | Level Sensor Accuracy | Ambient Temperature | Hazardous Area ATEX
Level Sensor |
| 32 m | 0.5 – 16 bar | -40 – 150°C | ± 3 mm | -40 to 70 °C |  Yes, VEGA VEGAFLEX 63 is suitable for hazardous areas
(see ATEX download). |
VEGAFLEX 63 Level Sensor Hazardous area Certifications
VEGAFLEX 63 guided wave radar level sensor is available with hazardous area certifications to meet ATEX & IECEx directives for Zone 1 and Zone 2 installations.
ATEX Approvals
ATEX II 1G, 1/2G, 2G EEx ia IIC T6
ATEX II 1G, 1/2G, 2G EEx ia IIC T6 + WHG
ATEX II 1/2G, 2G EEx d ia IIC T6
VEGA level sensors are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. DNV, GL, LRS or ABS.
VEGA LEVEL SENSOR – VEGAFLEX 63 FEATURES
FunctioN
High frequency microwave pulses are coupled onto a cable or rod and guided along the probe. The pulse is reflected by the product surface. The time from emission to reception of the signals is proportional to the level in the vessel.
Materials
The wetted parts of the instrument are made of stainless steel and the instrument seal is made of one of the following FKM, FFKM or EPDM.
Housings
The level sensor housings are available as double chamber version in plastic, stainless steel or aluminium with protection ratings up to IP66/IP67.
ELECTRONICS
VEGA sensors are available in different electronics versions. Apart from the two-wire electronics with 4 … 20 mA/HART, there are two pure digital versions with Profibus PA and Foundation Fieldbus possible as well as one version for connection to a signal conditioning instrument.
 Signal Output
- 4 -20 mA/HART in two-wire
- 4 -20 mA/HART Â in four-wire
- Profibus PA
- Foundation Fieldbus technology
VEGA LEVEL SENSORS – veGAFLEX
VEGAFLEX level sensors provide level measurement for bulk solids, liquids and separation layers (interfaces). In guided wave radar level measurement, microwave pulses are conducted along a cable or rod probe and reflected by the product surface. The measuring probe of the TDR sensor ensures that the signal reaches the medium without disruption. VEGA is a global manufacturer of process and hazardous area instrumentation.
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
Thorne & Derrick can provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
VEGA Level Sensors : Measurement of level, point level, pressure, flow and density
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
