VEGA VEGAPULS 65 Radar Level Sensor

VEGA Level Sensor - VEGAPULS 65 Radar Level Sensor

VEGA Level Sensors

Level Sensor VEGA VEGAPULS 65

VEGA VEGAPULS 65 radar level sensor provides continuous level measurement of liquids despite foam under simple process conditions,  including those within vessels with small process fittings providing exact measuring results independant of process conditions.

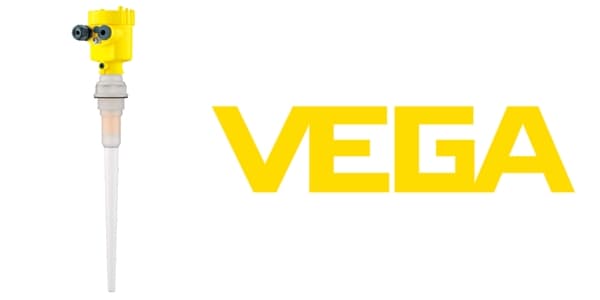

The VEGAPULS 65 has a slim rod antenna and a maintenance free operation.

VEGA VEGAPULS 65 Radar LEVEL SENSOR

PRODUCT SPECIFICATIONS

Measuring Range – Distance Process Temperature Level Sensor Accuracy  Level Sensor Protection Rating Ambient Temperature Hazardous Area ATEX

Level Sensor
35 m -40 – 150°C ±8mm IP66/IP68 (0.2 bar)
IP66/IP67 + IP66/IP68 (1 bar)		 -40 to 80 °C  Yes, VEGA VEGAPULS 65 is suitable for hazardous areas

ATEX Level Sensors

(see ATEX download).

VEGAPULS 65 LEVEL SENSOR HAZARDOUS AREA CERTIFICATIONSVega Level Sensors

VEGAPULS 65 radar level sensor is available with hazardous area certifications to meet ATEX & IECEx directives for Zone 1 and Zone 2 installations.

ATEX & IECEX APPROVALS

ATEX II 1G, 1/2G, 2G Ex ia IIC T6

ATEX II 1G, 1/2G, 2G Ex ia IIC T6 + WHG

ATEX II 1G, 1/2G, 2G Ex ia IIC T6 + Ship approval

IEC Ex ia IIC T6

ATEX II 1/2G, 2G Ex d ia IIC T5/T6

IEC Ex d ia IIC T6

VEGA level sensors are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. DNV, GL, LRS or ABS.

VEGA LEVEL SENSOR – VEGAPuls 65 FEATURES

Function

Extremely short microwave pulses are emitted by the antenna system in the direction of the measured product, reflected by the product surface and received back again by the antenna system.

The time from emission to reception of the signals is proportional to the level in the vessel. A special time stretching procedure allows reliable and precise measurement of the extremely short signal running times.

MATERIALs

Wetted Parts: PVDF, 316L or PTFE

Process Seal: FKM

Housing Versions

Double chamber version in plastic, stainless steel or aluminium, IP66/67.

Electronics Versions

    • 4-20 mA
    • 4-20 mA/HART
    • PA
    • FF
    • Modbus

APPROVALS

    • Shipbuilding
    • ATEX
    • IEC
    • Overfill protection
    • FM
    • CSA

VEGA Level Measurement Instruments & Sensors include capacitive, hydrostatic, guided wave radar and ultrasonic sensors for the measurement of bulk liquids, solids and powders in safe, industrial and hazardous area industries.

Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.

T&D provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.

VEGA Level Sensors - VEGACAL

VEGA Level Sensors : Measurement of level, point level, pressure, flow and density.
