VEGA VEGAPULS WL 61 Radar Level Sensor

VEGA Level Sensor - VEGAPULS WL 61 Radar Level Sensor

VEGA Level Sensors

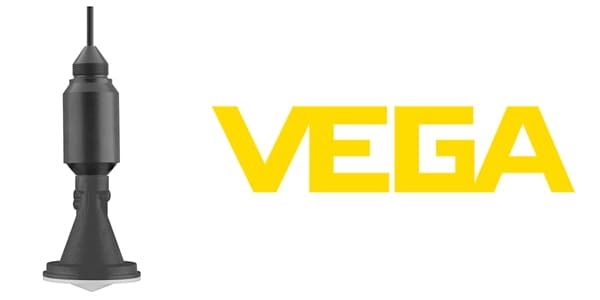

Level Sensor VEGA VEGAPULS WL 61

VEGA VEGAPULS WL 61 radar level sensor provides continuous level measurement in water and sewage applications such as those found within water processing, pump stations and overflow basins. It can also be used for flow measurement within open flumes and gauge monitoring.

The VEGAPULS WL 61 is an economical solution with versatile and simple mounting options and the flood proof IP68 housing ensures a maintenance free operation through the usage of a non-contact measuring principle. The VEGAPULS WL 61 provides exact measuring results independent of product, process and ambient conditions.

VEGA VEGAPULS WL 61 Radar LEVEL SENSOR

PRODUCT SPECIFICATIONS

Measuring Range – Distance

Process Temperature

Level Sensor Accuracy

Level Sensor Protection Rating

Ambient Temperature

Hazardous Area ATEX

Level Sensor

15 m

-40 – 80°C

±2mm

IP68 (2 bar)

-40 to 80 °C

Yes, VEGA VEGAPULS WL 61 is suitable for hazardous areas

ATEX Level Sensors

(see ATEX download).

VEGAPULS WL 61 LEVEL SENSOR HAZARDOUS AREA CERTIFICATIONS

VEGAPULS WL 61 radar level sensor is available with hazardous area certifications to meet ATEX & IECEx directives for Zone 1 and Zone 2 installations.

ATEX & IECEX APPROVALS

ATEX II 3G Ex nA IIC T6 Gc X

ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Ga, Ga/Gb, Gb

IEC Ex ia IIC T6 Ga, Ga/Gb, Gb

VEGA level sensors are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. DNV, GL, LRS or ABS.

VEGA LEVEL SENSOR – VEGAPuls WL 61 FEATURES

Function

Extremely short microwave pulses are emitted by the antenna system in the direction of the measured product, reflected by the product surface and received back again by the antenna system.

The time from emission to reception of the signals is proportional to the level in the vessel. A special time stretching procedure allows reliable and precise measurement of the extremely short signal running times.

MATERIALs

Wetted Parts: Valox PBT or PP

Process Seal: FPM

Connection Cable: PUR insulated

Housing Versions

Optimised for waste water industry applications and manufactured with Valox PBT, IP68 (2 bar).

Electronics Versions

4-20 mA/HART
PA
FF

APPROVALS

ATEX
IEC

VEGA Level Measurement Instruments & Sensors include capacitive, hydrostatic, guided wave radar and ultrasonic sensors for the measurement of bulk liquids, solids and powders in safe, industrial and hazardous area industries.

Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.

T&D provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
