Wolf M-20 Torch

Hazardous Area Torches

Wolf M-20

Torches

Gas: Hazardous Area Zone 1 & Zone 2

Dust: Hazardous Area Zone 21 & Zone 22

Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Wolf temporary and portable lighting products.

Wolf M-20 hazardous area torches are ATEX & IECEx certified for use in in Zones 1 & 2 (Gas) and Zone 21 & 22 (Dust).

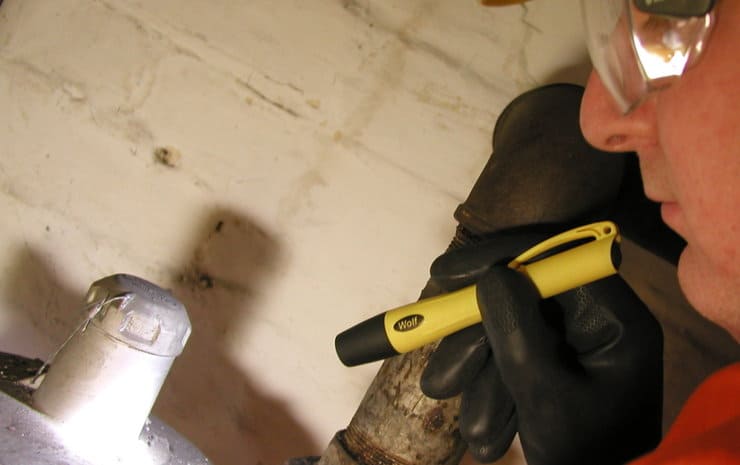

Wolf M-20 Torch Hazardous Area Torch

Wolf M-20 is an LED torch with “ia/ib” intrinsic safety type of protection for hazardous areas – using high power LED as the light source the M-20 provides an output of 15lm.

Part Number: Wolf M-10
Product Category: Hazardous Area Lighting
Product Range: Hazardous Area Torches
LED Mini Torch
ATEX Certification: II 2 GD Ex ib IIC T4 (Ta=50ºC) tD A21 IP67 T80ºC
Mining Certification: Group I M2 Ex ib I IP67
Hazardous Area Classification Gas: Zones 1 & 2
Hazardous Area Classification Dust: Zones 21 and 22
Explosion Proof/Protection Concept: Ex “ia/ib” intrinsic safety
Temperature Classification Rating (Gas) T4
Torch Enclosure – Impact Resistant Thermoplastic, Electrostatic, Non-hazardous
See more ATEX Torches

➡ See our technical resource section for further detailed information about hazardous area Zones and T-Class ratings.

Wolf M-20 Torch Beam

Narrow Spot – Spot Beam (approx. 6°) – peak luminous intensity at 2.5m 100 lux

Wolf M-20 Torch

ATEX & IECEx Certification: II 2 GD Ex ib IIC T4 (Ta=50ºC) tD A21 IP67 T80ºC

Wolf M-20 – Spot Beam (approx 6°) – for further information about Hazardous Area Lighting for Zone 1 and Zone 2 please contact T&D’s Sales Engineers.

➡ For complete specifications, technical date and ordering details about Wolf M-20 please refer to the download opposite or contact T&D to discuss your torch requirements.

WOLF MICRO & MINI TORCH TECHNICAL INFORMATION

The following table explains the technical specification differences for the Wolf Micro & Mini range of torches – should you require support or advice on selecting the correct hazardous area torch please do not hesitate to contact us.

Wolf M-20

WOLF MICRO & MINI TORCH TECHNICAL INFORMATION

Wolf Part Reference		Wolf M-20
Torch Description		Xenon Mini Torch
Hazardous Area Code (ATEX & IECEx)	Industrial	II 2GD Ex ib IIC T4 tD A21 IP67 T80ºC
	Mining	I M2 Ex ib I IP67
Type of Protection		“ia/ib” Intrinsic Safety
Area of Hazardous Classification (Gas)		Zones 1 and 2
Temperature Classification (Gas)		T4
Area of Hazardous Classification (Dust)		Zones 21 and 22
Maximum Surface Temperature (Dust)		80ºC
Ambient Temperature		-20ºC to +40ºC
ATEX Certificate		ATEX Baseefa06ATEX0084X / IECEx BAS 06.0023
Enclosure		Impact resistant thermoplastic, electrostatic non-hazardous
Lens		Polycarbonate
Beam Type		Narrow Spot

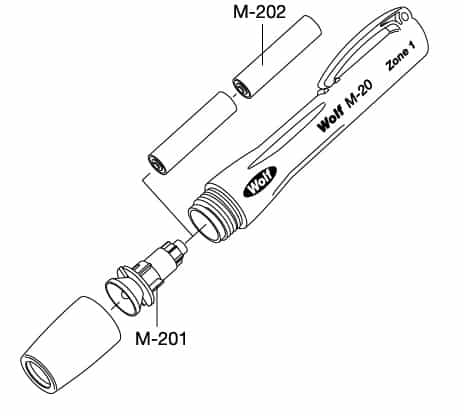

Light Source	Part Number	M-201
	Type	Xenon Filled Filament Bulb
	Rating	2.3V 0.3A
	Output	15lm
	Life	30 Hours
Power Source	Type	LR03 Primary Cells to IEC60086
	Part Number	M-202 (2 Pack)
	Volts	2 x 1.5V
Light Duration		Up to 2.3 hours
Ingress Protection		IP67 to EN60529: 1992
Weight (Including Cells)		60g

Wolf M-20 Hazardous Area Torch

Wolf – tHE hAZARDOUS AREA lIGHTING sPECIALISTS

Handheld straight and right-angled torches, headtorches, handlamps including the market-leading Wolflite Handlamp with bulb and LED versions for safe lighting in hazardous area Zones 0, 1 and 2 gas and Zones 20, 21 and 22 dust explosive atmospheres – T&D provide competitive prices and delivery for the complete range of Wolf Lighting.

Contact T&D to discuss all your portable and temporary hazardous area lighting requirements – as Main Distributors for Wolf Safety Lamp we can provide expert technical support and competitive prices with delivery from stock.
