Wolf TS-26B ATEX Torch

Wolf TS-26B

Torches

Gas: Hazardous Area Zone 1 & Zone 2

Dust: Hazardous Area Zone 21 & Zone 22

Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Wolf temporary and portable lighting products.

Wolf TS-26B hazardous area torches are ATEX & IECEx certified for use in Zones 1 & 2 (Gas) and Zone 21 & 22 (Dust)

Wolf TS-26B Torch Hazardous Area Torch

Wolf TS-26B is an ATEX torch with “ib” intrinsic safety type of protection for hazardous areas – using high power vacuum filament as the light source the TS-26B provides an output of 11.4lm.

Part Number: Wolf TS-26B
Product Category: Hazardous Area Lighting
Product Range: Hazardous Area Torches
Description: Primary cell LED straight safety torch
Hazardous Area Code: II 2GD Ex eb ib IIIB T6 Gb Ex tb IIIC T65ºC Db (-10ºC ≤ Ta ≤ +40ºC)
Type Of Explosion Protection: Ex eb ib Increased Safety / Intrinsic Safety
Hazardous Area Classification (Gas): Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temperature Classification (Gas): T6
Hazardous Area Classification (Dust): Zone 21 and 22
Max Surface Temperature (Dust): T80°C
Ambient Temperature: -10°C to +40°C
Certificate: ATEX Baseefa02ATEX2220X / IECEx BAS 15.0033X
Enclosure: Impact resistant thermoplastic, electrostatic non-hazardous
Lens: Toughened Glass
Beam Type: Medium spot
See more ATEX Torches

➡ See our technical resource section for further detailed information about hazardous area Zones and T-Class ratings.

Light Source

Type: Vacuum filament
Power/Output: 11.4lm
Bulb Life: 15 hours

Light Output

1.2W Beam (approx 5°) – Peak luminous intensity at 5m 170lux

Wolf ATEX Torches

ATEX & IECEx Certification: II 2GD Ex eb ib IIIB T6 Gb Ex tb IIIC T65ºC Db (-10ºC ≤ Ta ≤ +40ºC)

Wolf TS-26B – Spot Beam (approx 5°) – for further information about Hazardous Area Lighting for Zone 1 and Zone 2 please contact T&D’s Sales Engineers.

➡ For complete specifications, technical date and ordering details about Wolf TS-26B please refer to the download opposite or contact T&D to discuss your torch requirements.

WOLF ATEX TORCH TECHNICAL INFORMATION

The following table explains the technical specification differences for the Wolf ATEX range of torch – should you require support or advice on selecting the correct hazardous area torch please do not hesitate to contact us.

Wolf TS-26B

Wolf Part Reference		Wolf TS-26B
Torch Description		Safety Torch, Primary Cell Powered, Straight or Right-Angle
Hazardous Area Code (ATEX & IECEx)		II 2GD Ex eb ib IIIB T6 Gb Ex tb IIIC T65ºC Db (-10ºC ≤ Ta ≤ +40ºC)
Type of Protection		Increased Safety / Intrinsic Safety
Area of Hazardous Classification (Gas)		Zones 1 and 2, Gas Groups IIA, IIB
Temperature Classification (Gas)		T6
Area of Hazardous Classification (Dust)		Zones 21 and 22, Dust Groups IIIA, IIIB, IIIC
Maximum Surface Temperature (Dust)		80ºC
Ambient Temperature		-10ºC to +40ºC
ATEX Certificate		ATEX Baseefa02ATEX2220X / IECEx BAS 15.0033X
Enclosure		Impact resistant thermoplastic, electrostatic non-hazardous
Lens		Toughened Glass
Beam Type		Medium Spot

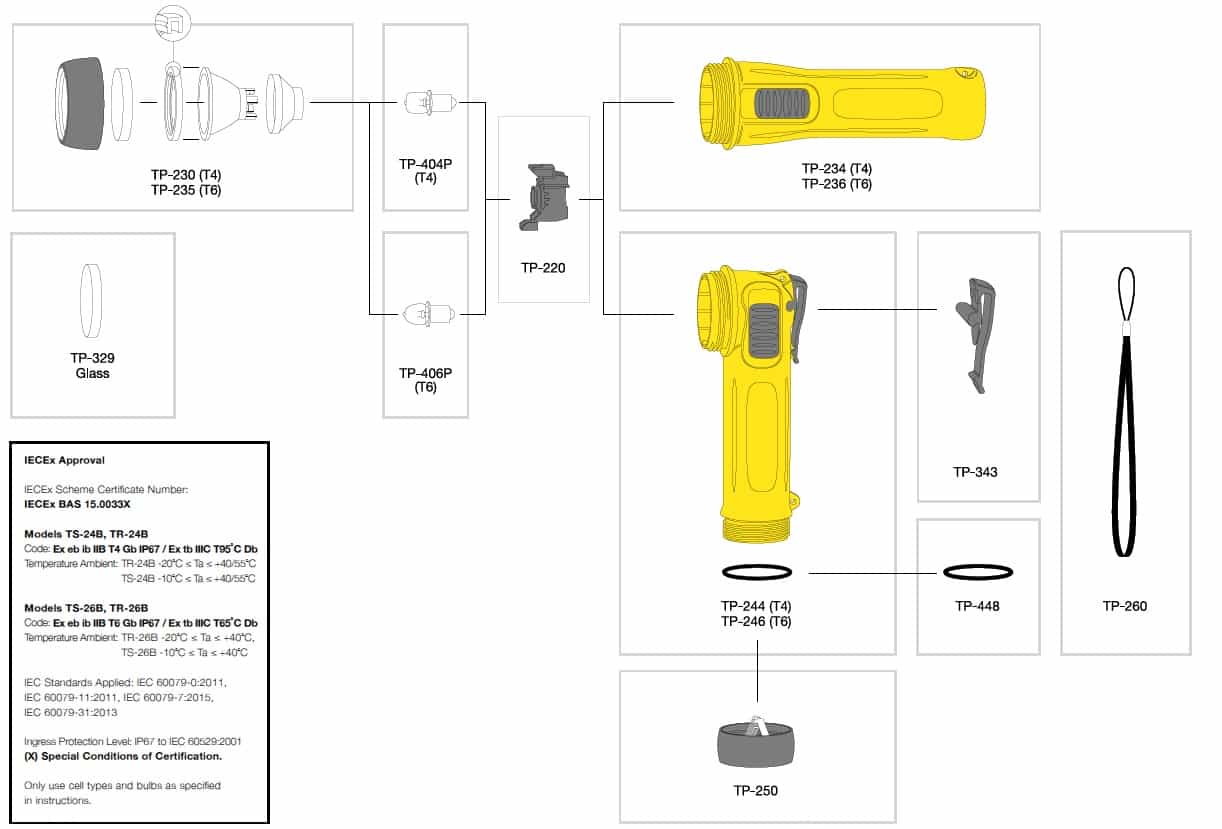

Light Source	Part Number	TP-406
	Type	Vacuum Filament
	Rating	2.4V, 0.5A
	Output	11.4lm (at nom voltage)
	Life	15 Hours
	Spare	TP-406
Power Source	Type	R20 Primary Cells to IEC60086
	Part Number	2 x T-20 (R20)
	Volts	2 x 1.5V
Light Duration		Up to 5 hours
Ingress Protection		IP67
Weight (Excluding Cells)		150g
Weight (Including Cells)		350g

Wolf TS-26B ATEX Torch
