Wolf TS-30+ ATEX Safety LED Torch
Wolf TS-30+
Torches
Gas: Hazardous Area Zone 1 & Zone 2
Dust: Hazardous Area Zone 21 & Zone 22
Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Wolf temporary and portable lighting products.

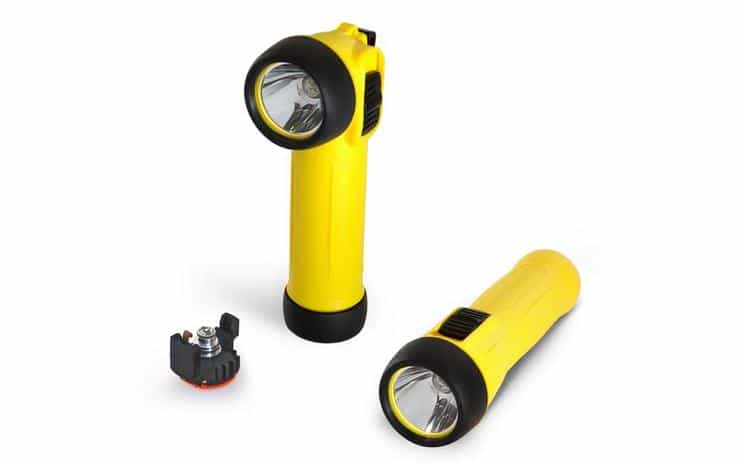

Wolf TS-30+ Torch Hazardous Area Torch
Wolf TS-30+ is an ATEX torch with “ib” intrinsic safety type of protection for hazardous areas – using high power LED as the light source the TS-30+ provides an output of 130lm.
- Part Number: Wolf TR-30+
- Product Category: Hazardous Area Lighting
- Product Range: Hazardous Area Torches
- Description: Primary cell LED straight safety torch
- Hazardous Area Code: I M2/II 2GD Ex ib I Mb/IIC T4 Gb -20ºC ≤ Ta ≤ 40/55ºC Ex ib IIIB T130ºC Db
- Type Of Explosion Protection: ‘ib’ Intrinsic Safety
- Hazardous Area Classification (Gas): Zones 1 and 2, Gas Groups IIA, IIB, IIC
- Temperature Classification (Gas): T4
- Hazardous Area Classification (Dust): Zone 21 and 22
- Max Surface Temperature (Dust): T130°C
- Ambient Temperature: -20°C to +40/55°C
- Certificate: ATEX Baseefa07ATEX0091X / IECEx BAS 06.0089X
- Enclosure: Impact resistant thermoplastic, chemical resistant, static dissipative
- Lens: Toughened Glass 4mm
- Beam Type: Medium spot with wide angle-flood of fringe light
- See more ATEX Torches
➡ See our technical resource section for further detailed information about hazardous area Zones and T-Class ratings.
Light Source
- Type: High Power LED
- Power/Output: Up to 210 lm
- Bulb Life: 25,000hrs+ (Fitted for Life)
Light Output
- 130 lumens Medium Spot Beam (approx 5°) with Wide- Angle Flood of Fringe Light (approx. 100°), Peak luminous intensity at 1m 11,300lux, 5m, 405lux
ATEX & IECEx Certification: I M2/II 2GD Ex ib I Mb/IIC T4 Gb -20ºC ≤ Ta ≤ 40/55ºC Ex ib IIIB T130ºC Db
Wolf TS-30B+ – Spot Beam (approx 5°), Flood (approx 100º) – for further information about Hazardous Area Lighting for Zone 1 and Zone 2 please contact T&D’s Sales Engineers.
➡ For complete specifications, technical date and ordering details about Wolf TS-30B+ please refer to the download opposite or contact T&D to discuss your torch requirements.
WOLF ATEX SAFETY LED TORCH TECHNICAL INFORMATION
The following table explains the technical specification differences for the Wolf ATEX Safety LED range of torches – should you require support or advice on selecting the correct hazardous area torch please do not hesitate to contact us.
Wolf TS-30+
Wolf Part Reference | Wolf TS-30+ | |
Torch Description | Primary Cell LED Right Angle or Straight Safety Torch | |
Hazardous Area Code (ATEX & IECEx) | I M2/II 2GD Ex ib I Mb/IIC T4 Gb -20ºC ≤ Ta ≤ 40/55ºC Ex ib IIIB T130ºC Db | |
Type of Protection | “ib” Intrinsic Safety | |
Area of Hazardous Classification (Gas) | Zones 1 & 2, Gas Group IIA, IIB, IIC | |
Temperature Classification (Gas) | T4 | |
Area of Hazardous Classification (Dust) | Zones 21 and 22, Dust Groups IIIA and IIIB | |
Maximum Surface Temperature (Dust) | T130ºC | |
Ambient Temperature | -20ºC to +40/55ºC | |
ATEX Certificate | ATEX Baseefa07ATEX0091X / IECEx BAS 06.0089X | |
Enclosure | Impact resistant thermoplastic, chemical resistant, static dissipative | |
Lens | Toughened Glass 4mm | |
Beam Type | Medium Spot with Wide-Angle Flood of Fringe Light | |
Light Source | Part Number | TP-300 |
Power | Torch LED Module | |
Output | Up to 210lm | |
Life | 25,000+ Hours (Fitted for Life) | |
Power Source | Type | LR20 Primary Cells to IEC60086 |
Part Number | 2 x H-20 (1 x LR-20 Cell suitable for 55º Maximum Ambient Temperature) (Batteries not supplied with torch) | |
Volts | 2 x 1.5V | |
Light Duration | Up to 14 hours to low power indicator.Up to 17 hours total | |
Low Battery Indicator | Yes | |
Ingress Protection | IP67 | |
Weight (Including Battery) | 0.475kg |
