Wolf ATEX Safety LED Torches (Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas)
wOLF
Hazardous Area Torches
Wolf TR-30+ | Wolf TS-30+ | Wolf TR-35+ | Wolf TS-35+
Torches for Zone 0, 1, 2, Zone 20, 21, 22 Hazardous Area Lighting
Wolf ATEX Safety LED Torches are ATEX certified torches for safe use in hazardous area Zone 0,1 & 2 (Gas, Vapour & Mist Explosive Atmospheres) and Zone 20, 21 & 22 (Dust Explosive Atmospheres) – T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.
Wolf ATEX safety LED torches are extremely robust and reliable torches – with proven shock protection, even at sub zero temperatures. The torch has rubber armoured lens ring and end cap, scratch and chemical attack resistance lens and is sealed dust tight and protected from water immersion, with an IP67 enclosure.
The compact, lightweight and ergonomic torch body gives enhanced grip and comfort for the user with easy single-handed switching, even with gloved hands and is available with a straight or right angle body.
ATEX Torches For Hazardous Areas
Wolf ATEX Safety LED torches provides reliable and versatile hazardous area lighting according to both ATEX Directive and IECEx standards – the torches utilise LED technology as a light source and are used for safe lighting in hazardous area Zones 1 and Zones 2 (potentially explosive gas) and Zones 21 and Zones 22 dust atmospheres (IIIA & IIIB Groups) with T4 temperature classification. Zone 0 and 20 version torches are available.
ATEX & IECEx Certified For Explosive Atmospheres
An overview of the Wolf ATEX Safety LED Torches range to provide portable lighting in explosive atmospheres:
- Wolf TR-30+ Spot/Flood Beam Torch Zone 1
- Wolf TS-30+ Spot/Flood Beam Torch Zone 1
- Wolf TR-35+ Spot/Flood Beam Torch Zone 0
- Wolf TS-35+ Spot/Flood Beam Torch Zone 0
- ATEX Certification: I M2/II 2GD Ex ib I Mb/IIC T4 Gb -30ºC ≤ Ta ≤ 40/55ºC Ex ib IIIB T130ºC Db (TR-30+)
- ATEX Certification: I M2/II 2GD Ex ib I Mb/IIC T4 Gb -20ºC ≤ Ta ≤ 40/55ºC Ex ib IIIB T130ºC Db (TS-30+)
- ATEX Certification: I M1/II 1GD Ex ia I Ma/IIC T4 Gb -30ºC ≤ Ta ≤ 40/55ºC Ex ia IIIB T130ºC Da (TR-35+)
- ATEX Certification: I M1/II 1GD Ex ia I Ma/IIC T4 Gb -20ºC ≤ Ta ≤ 40/55ºC Ex ia IIIB T130ºC Da (TS-35+)
- Hazardous Area Zone 1 & 2 Gas Groups IIA, IIB & IIC (Wolf TR-30+ & TS-30+)
- Hazardous Area Zone 0, 1 & 2 Gas Groups IIIA, IIIB & IIIC (Wolf TR-35+ & TS-35+)
- Temperature Classification (Gas) T4 | See more information about T Class Ratings
- Maximum Surface Temperature (Dust) 130ºC
- More Technical Information Hazardous Area Zones
Wolf ATEX Safety LED Torch
- ATEX and IECEx torch certified for Zones 1 and 21, Zones 0 and 20 version available, explosive gas and dust atmospheres
- High power ‘fitted for life’ LED for outstanding light output, no bulb replacement required
- Medium spot beam with wide-angle flood of fringe light
- Compact and lightweight ergonomic torch design, straight and right-angle versions
- Up to 130 lumens light output with up to 17 hours duration
- 2 x 1.5V D/LR20 primary cells with low power indicator
- Supplied with wrist strap and clip ring
- Very low maintenance, quick and easy parts replacement
- Group I Mining Approval
ATEX Certified Torch
Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas
- Zone 0, Zone 1 & Zone 2 Gas
- Zone 20, Zone 21 & Zone 22 Dust
- See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
The Wolf ATEX Safety LED range are torches manufactured by Wolf Safety Lamp to provide lighting in Zone 1, Zone 0, Zone 21 or Zone 20 hazardous areas – the LED torches are for use in potentially explosive atmospheres according to the ATEX Directive.
WOLF ATEX Safety LED Torch Technical Information
The following table explains the technical specification differences for the Wolf ATEX Safety LED range of torches – should you require support or advice on selecting the correct hazardous area torch please do not hesitate to contact us.
Wolf Part Reference | Wolf TR-30+ | Wolf TS-30+ | Wolf TR-35+ | Wolf TS-35+ | |
Torch Description | Primary Cell LED Right Angle or Straight Safety Torch | ||||
Hazardous Area Code (ATEX & IECEx) | I M2/II 2GD Ex ib I Mb/IIC T4 Gb -30ºC ≤ Ta ≤ 40/55ºC Ex ib IIIB T130ºC Db | I M2/II 2GD Ex ib I Mb/IIC T4 Gb -20ºC ≤ Ta ≤ 40/55ºC Ex ib IIIB T130ºC Db | I M1/II 1GD Ex ia I Ma/IIC T4 Gb -30ºC ≤ Ta ≤ 40/55ºC Ex ia IIIB T130ºC Da | I M1/II 1GD Ex ia I Ma/IIC T4 Gb -20ºC ≤ Ta ≤ 40/55ºC Ex ia IIIB T130ºC Da | |
Type of Protection | “ib” Intrinsic Safety | “ia” Intrinsic Safety | |||
Area of Hazardous Classification (Gas) | Zones 1 & 2, Gas Group IIA, IIB, IIC | Zones 0, 1 & 2, Gas Group IIA, IIB, IIC | |||
Temperature Classification (Gas) | T4 | ||||
Area of Hazardous Classification (Dust) | Zones 21 and 22, Dust Groups IIIA and IIIB | Zones 20, 21 and 22, Dust Groups IIIA and IIIB | |||
Maximum Surface Temperature (Dust) | T130ºC | ||||
Ambient Temperature | -30ºC to +40/55ºC | -20ºC to +40/55ºC | -30ºC to +40/55ºC | -20ºC to +40/55ºC | |
ATEX Certificate | ATEX Baseefa07ATEX0091X / IECEx BAS 06.0089X | ||||
Enclosure | Impact resistant thermoplastic, chemical resistant, static dissipative | ||||
Lens | Toughened Glass 4mm | ||||
Beam Type | Medium Spot with Wide-Angle Flood of Fringe Light | ||||
Light Source | Part Number | TP-300 | |||
Power | Torch LED Module | ||||
Output | Up to 210lm | ||||
Life | 25,000+ Hours (Fitted for Life) | ||||
Power Source | Type | LR20 Primary Cells to IEC60086 | |||
Part Number | 2 x H-20 (1 x LR-20 Cell suitable for 55º Maximum Ambient Temperature) (Batteries not supplied with torch) | ||||
Volts | 2 x 1.5V | ||||
Light Duration | Up to 14 hours to low power indicator.Up to 17 hours total | ||||
Low Battery Indicator | Yes | ||||
Ingress Protection | IP67 | ||||
Weight (Including Battery) | 0.500kg | 0.475kg | 0.500kg | 0.475kg |
WOLF ATEX Safety LED Torch

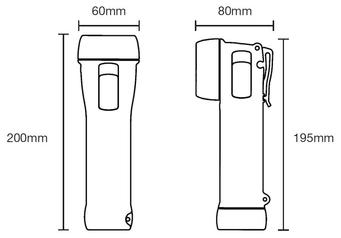

Light Output & Product Dimensions

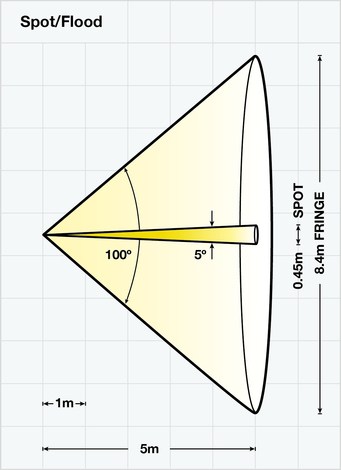

130 lumens Medium Spot Beam (approx 5°) with Wide- Angle Flood of Fringe Light (approx. 100°)
Peak luminous intensity at 1m 11,300lux, 5m, 405lux
