Zone 1 Portable Hazardous Area LightingÂ
ATEX Classification, Ex eb mb op is IIC T4 Gb. Protection: IP 66

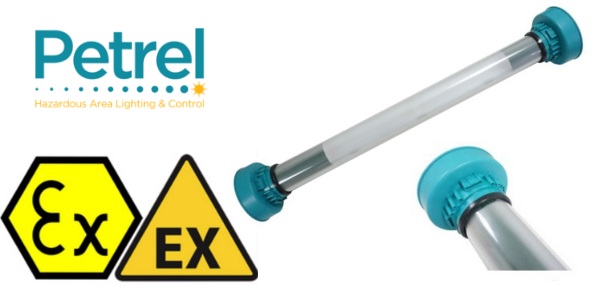

Petrel PLX range are high output hazardous area portable lights suitable for Zone 1 lighting applications with fluorescent and LED lamps.
Hazardous area portable lights are robust, durable and lightweight allowing them to be carried around on site with ease. Emergency versions are also available as are 180º or 360º lamp configurations.
The range utilises the very latest in solid state technology to deliver a high level of warm, bright light from an LED light source that is extremely robust and durable.
➡ See Zone 2 Hazardous Area Lighting for fluorescent, LED, floodlight and bulkhead type light fittings for potentially explosive atmospheres with ATEX certification.
➡ View full range of hazardous area lighting.
Zone 1 Hazardous Area Lighting For Potentially Explosive Atmospheres In Both Onshore & Offshore Locations
ZONE 1 FLUORESCENT
Hazardous Area & atex Approved
- Certification and Hazardous Area Approval Certification Code: Ex eb mb op is IIC T4 Gb. Ex tb op is IIIC T80°C Db.
- Certification Number: CML 13ATEX3005X IECEx CML14.0022X
- Certification Standard: EN 60079 IEC 60079
- Protection: IP 66

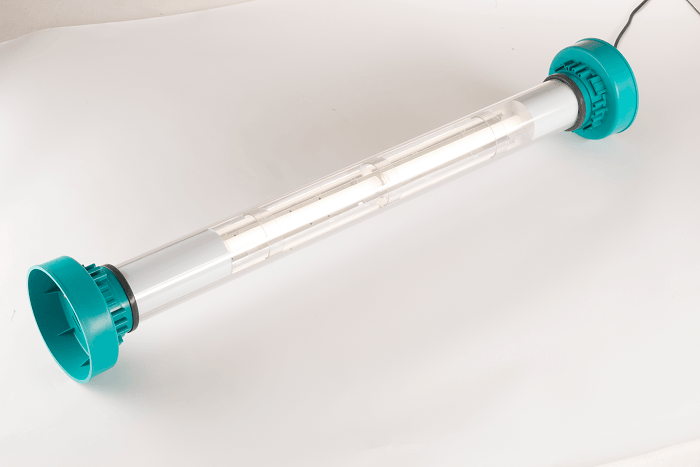

Zone 1 Portable Light
ATEX – Zone 1 Portable Lighting
Benefits & Options
- ATEX certified portable light for use in Zone 1 & 2, 21 & 22
- IP66 protection
- -20°C to +55°C ambient temperature
- Robust, durable construction
- Strong, lightweight portable luminaire for ease of use
- Fluorescent or LED option for Zone 1
- Emergency version portable light available
- 110V or 230VÂ supply
- 180° or 360° portable lamp configuration
- Replaceable protective film cover
- Available with CEAG, ATEX or Marechal plugs
- Supplied with 5m of H07RN-F cable or alternative as specified
ZONE 1 Hazardous Area Portable Lighting
ATEX Technical Data
| Material | Polycarbonate tube & end caps |
| Cable Entries | M20 as standard. |
| Electrical Connections | 2 wire and earth. Cable size 2.5mm |
| Light Source | High efficiency LED |
| Max Light Output | 4,000lm. 180 degree. / 8,000lm. 360 degree. |
| Supply Voltage | 110v, 230v and low voltage options available |
| Installation/Mounting | N/A |
| Control Gear | Electronic LED driver |
| Dimensions | Standard 1,064mm, LED Short. 675mm. Diameter. 175mm. |
| Weight | Std. 1.8 kg, LED emergency 3 kg |

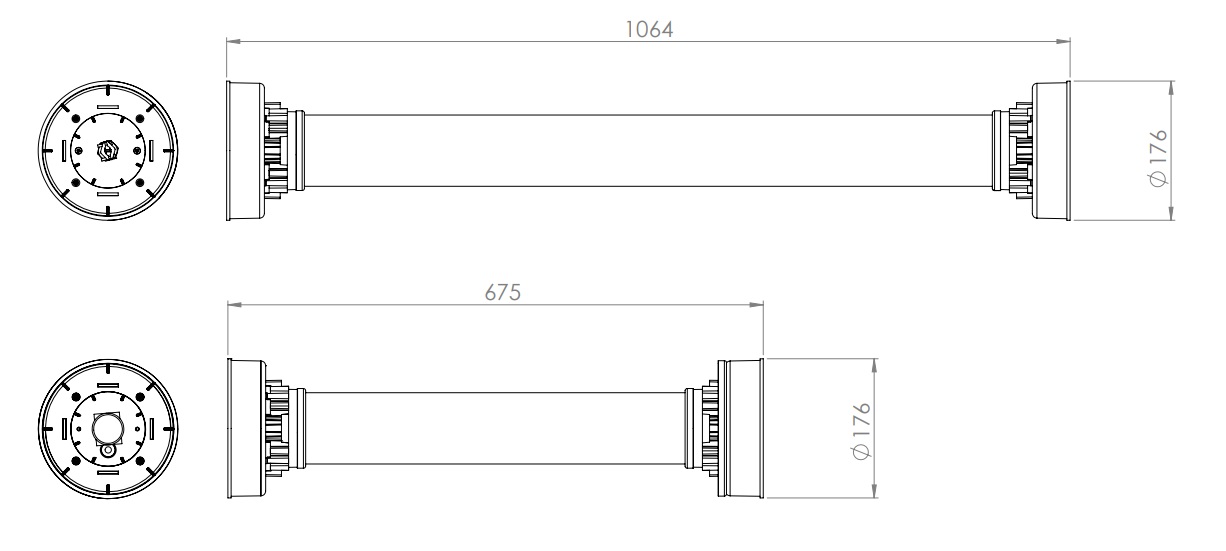

Hazardous Area Portable Light – Fluorescent & LED Lighting Dimensions
Ordering Information
| Part Number | Light Source | Max Light Output | Nominal Power Consumption | Variant |
| PLX LED Standard | LED | 8,000 | 60w | 360Âş |
| PLX LED Standard | LED | 4,000 | 30w | 180Âş |
| PLX LED Short | LED | 4,000 | 30w | 180Âş |
| PLX LED Emergency | LED | 4,000 | 30w | 180Âş |
