The Temporary Hazardous Area Floodlight – Wolf LinkEx WF-300 XL LED Floodlite

Published 14 Nov 2017

Wolf LinkEx WF-300 XL LED Floodlite

NEW Hazardous Area Floodlight from Wolf Safety

Wolf LinkEx WF-300 XL

Temporary Floodlighting for Hazardous Area Zones

Following long term and close consultation with end-users around the world Wolf Safety Lamp have launched their new temporary and portable hazardous area floodlight.

The new Wolf LinkEx WF-300XL LED Floodlite is designed specifically for the Hazardous Area Lightinglighting requirements and conditions confronted by operators in hazardous areas and explosive atmospheres.

Thorne & Derrick International, the Specialist Distributors of both portable and fixed types of lighting for hazardous area zones, can provide competitive pricing and delivery to UK and international destinations for the Wolf Safety Lamp ranges.

The portable hazardous area floodlight is certified for safe use in Zone 1, T4, IIc, -40°C to +55°C ambient, hazardous gas, vapour, mist or dust environments – the Wolf WF-300XL delivers up to 6,378lm of bright, white light from highly reliable LEDs which have been designed to give 100,000+ hours life.

The floodlight LEDs’ life being assured by efficient heat dissipation and electronic thermal control.

Wolf LinkEx

Alex Jackson, Wolf’s Managing Director, commented “Safety is, as always, of the utmost importance and we are particularly pleased with the new Floodlite’s safety features.  Wolf’s unique SOVI system lets the operator know if the light is running outside the certified and optimal voltage ranges and the Floodlite is additionally certified safe down to 0 volts.  Also, the independent LED panel and driver system provide failsafe reliability – ensuring operators are never left in the dark.  These safety features, combined with the class leading light output and many other innovative features, make this a very special product and one that everybody at Wolf is rightly proud of.”

The LinkEx WF-300 is manufactured in Wolf’s manufacturing facility in Sheffield and is specifically designed for areas where there’s an increased threat of mechanical damage as the hazardous area floodlight doesn’t harbour dirt and is easy to clean.

Designed for environments with a high risk of mechanical damage, the Wolf LinkEx WF-300 hazardous area floodlight is manufactured in Sheffield from proven materials, doesn’t harbour dirt and is easy to clean.  The inventive design of the WF300 allows for simple maintenance, quick and easy disassembly and the majority of parts can to be changed should it become required – including drivers and LEDs.

Available in both low and high voltage options, the Wolf LED Floodlite is supplied with two ATEX approved accessories – a lens guard and protection bag – with other accessories also being available. The high voltage floodlight version can be fitted with a Wolf LinkEx™ socket to enable up to 20 lights to be linked together in a daisy chain with all floodlights safely powered from a single power source in a hazardous area.

Wolf WF-300XL is designed to complement the existing range of Wolf LinkEX LED Temporary Luminaires, transformers, splitter boxes and extensions to provide a complete hazardous area temporary lighting system – ideal for shutdowns and turnarounds.

Hazardous Area Certification

Hazardous Area Floodlight

Hazardous Area Floodlight

Code

II 2 G D Ex eb mb op is IIC T4 Gb

Ex tb op is IIIC T118°C Db

T = -40°C to +55°C or -40°C to +40°C when the optional, protection bag is fitted

Equipment Category

2GD

Type Of Hazardous Area Protection

‘eb’ increased safety ‘mb’ encapsulation ‘tb’ enclosure protection

Hazardous Area Zone Classification (Gas)

Zones 1 and 2, Gas Groups IIA, IIB and IIC

Hazardous Area Zone Classification (Dust)

Zones 21 and 22, Dust Groups IIIA, IIIB and IIIC

Temperature Rating

T4

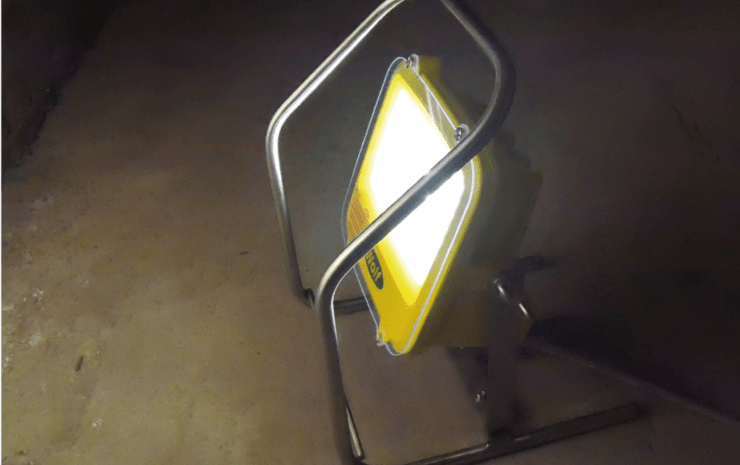

The Hazardous Area Floodlight - Wolf LinkEx WF-300 XL LED Floodlite

Wolf LinkEx WF-300 XL LED Floodlite

Features & Benefits

  • Fully compliant floodlight with latest hazardous area ATEX and IECEx standards, including OPIS optical intrinsic safety
  • High reliability bright LEDs – designed and tested to give 100,000+ hours life
  • Thermal management – LED life assured by efficient heat dissipation through built in fins and electronic control
  • Dual independent LED system – LEDs powered by independent drivers giving failsafe product reliability, ensuring that operators are never left in the dark
  • SOVI – the unique Safe Optimal Voltage Indicator system alerts the user if lights are running outside certified and optimal voltage ranges, maximising safety and performance
  • Safe to 0 volts – both LV and HV units are safe down to 0 volts
  • Wolf LINKEx capable – HV units can be fitted with linkable sockets enabling multiple lights to be connected in series from a single power source
  • IP66/67 dust and watertight hazardous area floodlights
  • Proven materials – marine grade aluminium enclosure; toughened, scratch, impact and chemical resistant glass lens and 316 stainless steel frame. Designed for environments with a high risk of mechanical damage and with a simple design that is easy to clean and doesn’t harbour dirt
  • Complementary product to existing range of LinkEx™ LED Temporary Luminaire area lighting system
  • ATEX accessories – Every unit is supplied with two ATEX certified accessories; a lens guard and protection cover.  Other accessories are also available.

Wolf LinkEx Hazardous Area Floodlights – Selection Table

Wolf LinkEx WF-300XLL/SY10/ATX2424V – 10 SY Cable – ATX Plug – Non-LinkableHazardous Area Gas Zone: 1 and 2 & Dust Zone: 21 and 22
Wolf LinkEx WF-300XLH/SY10/ATX110110V – 10 SY Cable – ATX Plug and SocketHazardous Area Gas Zone: 1 and 2 & Dust Zone: 21 and 22
Wolf LinkEx WF-300XLH/SY10/ATX110/LINK110V – 10 SY Cable – ATX Plug and Socket – LinkableHazardous Area Gas Zone: 1 and 2 & Dust Zone: 21 and 22
Wolf LinkEx WF-300XLH/SY10/ATX230230V – 10 SY Cable – ATX Plug and SocketHazardous Area Gas Zone: 1 and 2 & Dust Zone: 21 and 22
Wolf  LinkEx WF-300XLH/SY10/ATX230/LINK230V – 10 SY Cable – ATX Plug and Socket – LinkableHazardous Area Gas Zone: 1 and 2 & Dust Zone: 21 and 22

Portable Lighting for hazardous areas

Wolf Safety Lamp lighting ranges include an extensive range of ATEX and IECEx certified portable lighting for safe use in potentially explosive atmospheres, including hazardous area Zone 1 & Zone 2: explosion proof Wolf handheld torches, headtorches, handlamps with bulb or LED versions.

Wolf - Hazardous Area Zone 1 & Zone 2 Handlamps, Headlamps, Torches & Floodlights (ATEX Certified)

Wolf | Handlamps | Torches | Headtorches | Tank Lights | ATEX Hazardous Areas

Thorne & Derrick are hazardous area lighting specialists stocking a complete range of portable and permanent fixed lighting including both fluorescent and LED technology in standard linear light fittings, wellglass, high bay and floodlight design certified by ATEX for both Zone 1 and Zone 2 hazardous areas.
