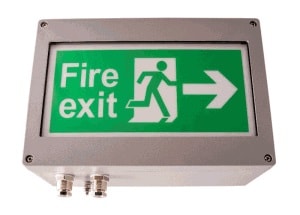

The Abtech Exodus is an LED bulkhead designed for use in hazardous and heavy industrial environments as well as marine environments – fully ATEX and IECEx certified for use in Zone 1 and 21 hazardous areas. The Zone 1 LED Bulkhead is compact in design so ideal for building perimeter, walkway or stairwell lighting.
The Exodus is available with internal battery backup for use as an Exit sign luminaire. With options for 180 and 90 minutes emergency operation. It can accommodate any fire exit decal to ISO 7010 (300 x 150mm).
The LED bulkhead is manufactured from marine grade Aluminium and uses pure white (57000K) high output LEDs.
Zone 1 LED Bulkhead Hazardous Area ATEX IECEx – Abtech Exodus
Zone 1 LED Bulkhead Hazardous Area ATEX IECEx
Features
- Compact design is ideal for building perimeter, walkway or stairwell lighting
- Manufactured LM24 Aluminium Alloy, powder coated for corrosion resistance
- Illuminated using LED Technology
- Can accommodate any fire exit sign to ISO 7010 (300mm x 150MM)
- 5 Year complete system warranty
| Luminaire Type | LED bulkhead luminaire |
| Ingress Protection | IP66/67 to EN60529 |
| Material | Marine grade Aluminium, powder coated housing, toughened glass window, Silicone gaskets and Stainless Steel grade 316 fasteners |
| Lamp Types | Light Emitting Diode, Pure White (5700K) |
| Colour Rendering Index | > 80 |
| LED life | 50,000 hours L70 @ 40°C |
| Cable Entry | 2 x M20 threaded holes. Supplied with 2 x transit plug |
| Terminals | Looping terminal block for up to 4mm2 conductors |
| Control Gear | HF electronic driver with harmonic protection (BS EN61000-3-2, Class A) and Surge (BS EN 61000-4-5, level 3) |
| Orientation | Universal |
| Mounting | Via mounting holes in body |
| Supply | 90 to 250V 50/60Hz ac dc |
| Battery | 6V 4.5Ah Ni-Cd |
| Emergency Duration | 180 minutes (3 hours) at 25% output |
Abtech Exodus Zone 1 Lighting
Luminaire Ratings
| Abtech Product Reference | ColourTemperature (K) | Light output (lumens) |
Power (W) | Ambient Temperature* |
Weight (kg) |
| LX1EXO2LB57 | 5,700 | 2,200 | 20W | -20°C to 55°C | 3 |
| LX1EXOE2LB57 | 5,700 | 2,200 | 20W | -20°C to 55°C | 8 |
HAZARDOUS AREA CERTIFICATION
Abtech Exodus LED Bulkheads are certified according to leading hazardous area classifications including:
- Area Classification Zone 1 & 21, Gas & Dust
- Apparatus Coding Standard: Ex II 2 GD Ex eb ib op is q IIB T4 Gb, Ex tb op is IIIC T135°C Db
- Certificate Number ATEX: CML 16ATEX3345
IECEx: CML 16.0120
T&D, The Explosive Atmosphere Experts, provide a single-source capability for the most extensive range of Electrical, Mechanical, Process & Instrumentation Equipment suitable for hazardous area locations.

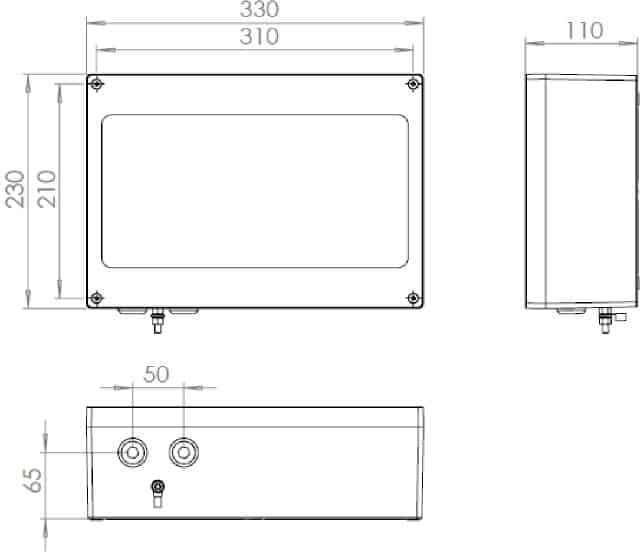

Zone 1 LED Bulkhead Hazardous Area ATEX IECEx Abtech Exodus – Dimensions
Abtech Exodus – Options
| M25 | M25 cable entries (other thread types available on request) |
| 90 | 90-minute emergency duration (90 minutes at 50% output) |
| RMS | Running man, with down arrow |
| RMRA | Running man right, with arrow |
| RMLA | Running man Left, with arrow |
| RMR | Running man right |
| RML | Running man Left |
| RALxxx | Specific paint colour (RAL number to be specified) |
Add the required suffix to the product reference.
Example: LX1EXOE2LB57M25RMR = Exodus emergency bulkhead with M25 entries and running man right exit sign
