Abtech SX0.5 Enclosures – Zone 2 ATEX

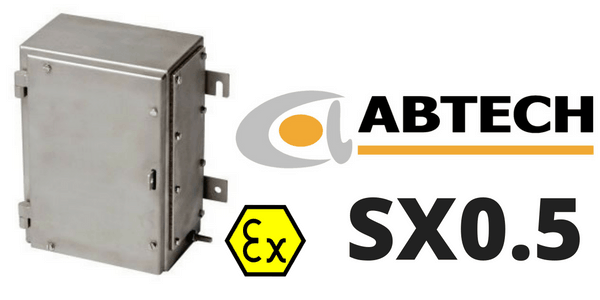

Abtech SX0.5 Electrical Enclosures

Abtech SX0.5 Electrical Enclosures

Abtech SX0.5 hazardous area enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from stainless steel and available in a full range of depths and sizes.

  • ATEX EEx e (Zone 1 & Zone 2)
  • ATEX EEx nA (Zone 2)
  • ATEX EEx nR (Zone 2)

The mild steel version of the enclosure (Abtech MSX) is available with a number of paint options (most RAL colours are available) and anti-corrosion finishes – please quote Abtech MSX0.5 when ordering.

Stainless Steel Enclosure

Zone 1 & Zone 2 Hazardous Areas

Enclosure Application

Abtech SX0.5 electrical enclosures are suitable for both industrial and hazardous areas.

Protection Degree IP66 or IP67.

Hazardous Area Certification

  • ATEX & IECEx (Zone 0, 1 & 2; Zone 20, 21 & 22)
  • CSA Ex e (Class 1 Zone 1 & Zone 2)
  • FM AEx e (Class 1 Zone 1 & Zone 2)
  • TR CU Ex e (Zone 1 & Zone 2)
  • NEMA 4X (CSA, UL & FM)
  • Class 1 Division 2

Abtech SX0.5 ELECTRICAL Enclosures

Junction Box Specification

Part Reference Enclosure Material  Width mm Length mm Weight g

ATEX
Abtech SX0.5.140 Enclosure Stainless Steel 184 274 5000 Zone 1 & Zone 2
Abtech SX0.5.200 Enclosure Stainless Steel 184 274 6000 Zone 1 & Zone 2
Abtech MSX0.5.140 Enclosure Mild Steel 184 274 5000 Zone 1 & Zone 2
Abtech MSX0.5.200 Enclosure Mild Steel 184 274 6000 Zone 1 & Zone 2
Stainless Steel Electrical Enclosures & Junction Boxes For Hazardous Areas

Stainless Steel Electrical Enclosures & Junction Boxes For Hazardous Areas

Abtech SX0.5 electrical enclosures, manufactured from stainless steel, are suitable for Zone 1 and Zone 2 hazardous areas according to the ATEX Directive – the junction box or electrical enclosure can be populated with cable terminals including Weidmuller, Phoenix and Wago types.

Cable Gland Entry Matrix

Cable Gland Size Side A – C  Side B- D
140 200 140 200
M16 6 12 10 20
M20 4 9 8 12
M25 2 6 4 9
M32 2 4 3 6
M40 1 2 2 4

Temperature Rating

Hazardous Area: -50°C to +175°C

Non Hazardous: -60°C to +200°C

ENCLOSURE Power Rating

19.874W

Abtech SX0.5 - ATEX Zone 1 Zone 2 Junction Box Electrical Enclosures

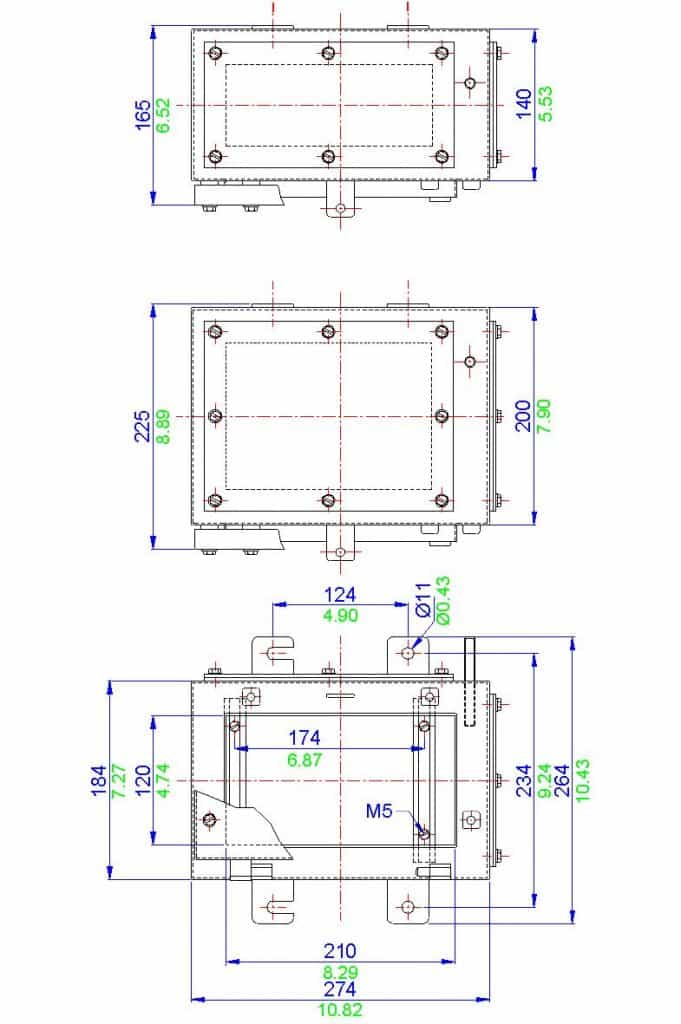

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.

Hazardous Area Zone 1 Zone 2 Enclosure Junction Box
