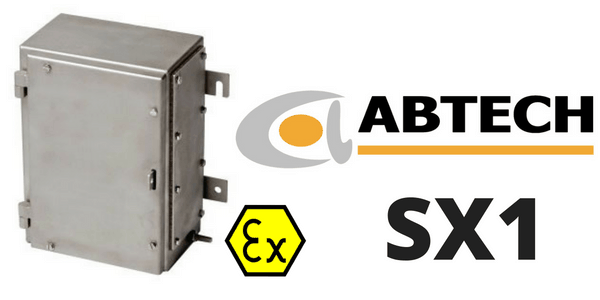

Abtech SX1 Enclosures – Zone 2 ATEX
Abtech SX1 hazardous area enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from stainless steel and available in a full range of depths and sizes.
- ATEX EEx e (Zone 1 & Zone 2)
- ATEX EEx nA (Zone 2)
- ATEX EEx nR (Zone 2)
The mild steel version of the enclosure (Abtech MSX) is available with a number of paint options (most RAL colours are available) and anti-corrosion finishes – please quote Abtech MSX1 when ordering.
Stainless Steel Enclosure
Zone 1 & Zone 2 Hazardous Areas
Abtech SX1 electrical enclosures are suitable for both industrial and hazardous areas.
Protection Degree IP66 or IP67.
Hazardous Area Certification
- ATEX & IECEx (Zone 0, 1 & 2; Zone 20, 21 & 22)
- CSA Ex e (Class 1 Zone 1 & Zone 2)
- FM AEx e (Class 1 Zone 1 & Zone 2)
- TR CU Ex e (Zone 1 & Zone 2)
- NEMA 4X (CSA, UL & FM)
- Class 1 Division 2
Abtech SX1 ELECTRICAL Enclosures
Junction Box Specification
|Part Reference||Enclosure Material||Width mm||Length mm||Weight g|
|Abtech SX1.140 Enclosure||Stainless Steel||234||324||6300||Zone 1 & Zone 2|
|Abtech SX1.200 Enclosure||Stainless Steel||234||324||7200||Zone 1 & Zone 2|
|Abtech MSX1.140 Enclosure||Mild Steel||234||324||6300||Zone 1 & Zone 2|
|Abtech MSX1.200 Enclosure||Mild Steel||234||324||7200||Zone 1 & Zone 2|
Abtech SX1 electrical enclosures, manufactured from stainless steel, are suitable for Zone 1 and Zone 2 hazardous areas according to the ATEX Directive – the junction box or electrical enclosure can be populated with cable terminals including Weidmuller, Phoenix and Wago types.
Cable Gland Entry Matrix
|Cable Gland Size||Side A – C||Side B – D|
Hazardous Area: -50°C to +175°C
Non Hazardous: -60°C to +200°C
ENCLOSURE Power Rating
