Zone 1 Increased Safety Recessed Fluorescent Hazardous Area ATEX IECEx Ex e – Abtech Xena

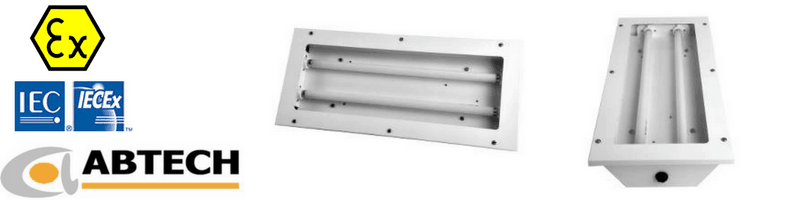

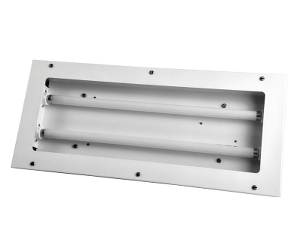

The Abtech Xena Ex e recessed fluorescent is designed for use in Zone 1 hazardous areas. The Zone 1 Recessed Fluorescent is rated IP54 and both ATEX and IECEx compliant.

The recessed fluorescent lighting features a shallow body design that reduces encroachment in to ceiling void, minimising space requirements. The emergency version of the Abtech Xena has a self contained battery for up to three hours operation. There is also an optional micro switch to isolate supply when opening cover to allow for safe lamp and battery replacement.

Zone 1 Increased Safety Recessed Fluorescent EX E

Features

Shallow body design reduces encroachment in to ceiling void, minimising space requirements
Self contained battery backup for up to three hours emergency operation
Optional micro switch to isolate supply when opening cover to allow for safe lamp and battery replacement

Luminaire Type	Zone 1 Recessed Fluorescent Luminaire
Ingress Protection	IP56 to EN60529
Material	Zintec epoxy painted enclosure, toughened glass diffuser and stainless steel fasteners.
Distribution/output	Various options available
Lamp Types	Tubular fluorescent T8 bi-pin lamps
Lamp Cap	G13
Lamp Change	Via front cover
Cable Entry	2 x M20 clearance holes, one at each end. Supplied with 1 x Ex plug and 1 x transit plug
Terminals	Through wire terminal block for up to 6mm² conductors as standard
Control Gear	HF electronic parallel ballast with EOL protection
Orientation	Ceiling mounted
Mounting	Various attachment & mounting options available
Supply	220 to 254V 50/60Hz ac dc
Emergency Duration	3 hours

Abtech XENA Zone 1 Lighting

Luminaire Ratings

Abtech Product Reference	Lamp Type	Lamp Cap	Power (W)	Temperature Rating**	Ambient Temperature	Weight (kg)
LX1XEN218	T8 bi-pin	G13	2 x 18W	T4	-40°C to 55°C	8.9
LX1XEN236	T8 bi-pin	G13	2 x 36W	T4	-40°C to 55°C	13.1
LX1XENE218	T8 bi-pin	G13	2 x 18W	T4	-15°C to 55°C	10.8
LX1XENE236	T8 bi-pin	G13	2 x 36W	T4	-15°C to 55°C	14.9

HAZARDOUS AREA CERTIFICATION

Abtech Xena recessed fluorescent lights are certified according to leading hazardous area classifications including:

Area Classification Zone 1 Gas
Type of Protection Ex e mb (increased safety, encapsulation)
Apparatus Coding Standard: II 2 G Ex e mb II T4 Gb / With Isolator: Ex d e mb IIC T4 Gb
Certificate Number CML 14ATEX3105 / IECEx CML 14.0043

T&D, The Explosive Atmosphere Experts, provide a single-source capability for the most extensive range of Electrical, Mechanical, Process & Instrumentation Equipment suitable for hazardous area locations.

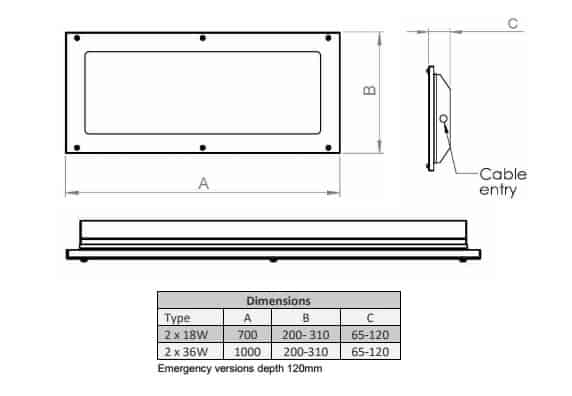

Zone 1 Increased Safety Recessed Fluorescent Abtech Xena – Dimensions

Abtech Xena – Options

M25	M25 cable entries (other thread types available on request)
IS	Isolator switch
110	110 – 130V operation
RALxxx	Specific paint colour (RAL number to be specified)

Add the required suffix to the product reference.
Example: LX1XENE236110RAL7001 = Zone 1, 2 x 36W with emergency battery backup, 110V ac/dc, painted grey (RAL7001)
