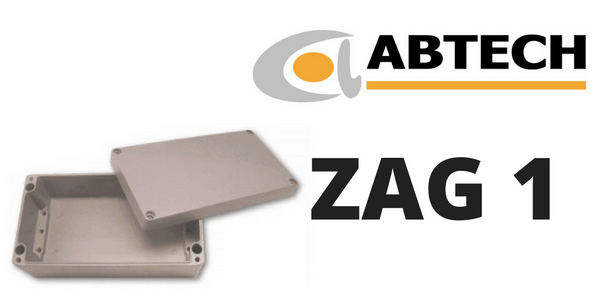

Abtech ZAG1 Enclosures
Abtech ZAG1 aluminium electrical enclosures are die cast aluminium enclosures for industrial non-hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from stainless steel and available in a full range of depths and sizes.
Please quote Abtech ZAG1R for the unpainted aluminium version.
Aluminium ENCLOSURE
ENCLOSURE APPLICATION
Abtech ZAG1Â electrical enclosures are suitable for industrial areas.
Protection Degree IP65.
ABTECH ZAG1Â ELECTRICAL ENCLOSURES
JUNCTION BOX SPECIFICATION
| Abtech Part Reference | Enclosure Material | Width mm | Length mm | Depth mm | Weight g |
| Abtech ZAG1Â Enclosure | Painted Aluminium (RAL7001) | 50 | 45 | 30 | 75 |
| Abtech ZAG1RÂ Enclosure | Unpainted Aluminium | 50 | 45 | 30 | 75 |
Abtech ZAG1 electrical enclosures, manufactured from aluminium can be populated with cable terminals including Weidmuller, Entrelec and Wago types.
CABLE GLAND ENTRY MATRIX
| Cable Gland Size | Side A – C | Side B- D |
| M12 | 1 | 0 |
| M16 | 0 | 0 |
| M20 | 0 | 0 |
| M25 | 0 | 0 |
| M32 | 0 | 0 |
| M40 | 0 | 0 |
TEMPERATURE RATING
Non Hazardous: -65°C to +150°C
ENCLOSURE POWER RATING
Not Applicable

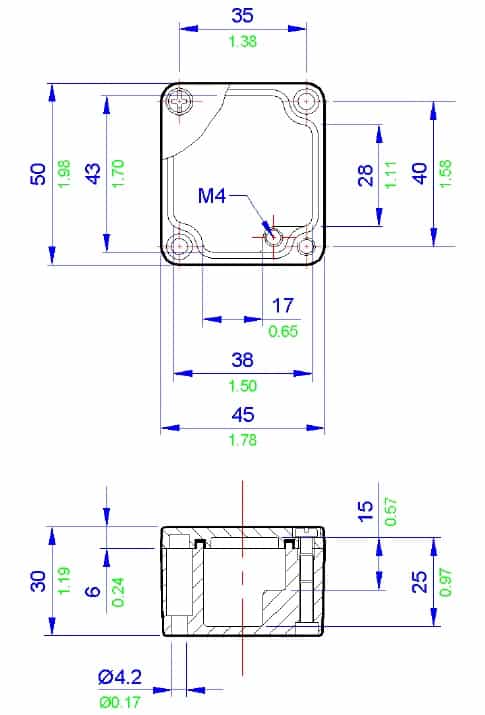

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.
