Abtech ZAG10 Enclosures – Zone 1 & Zone 2 ATEX

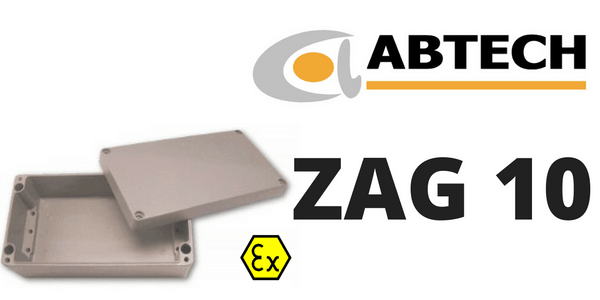

Abtech ZAG10 aluminium electrical enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from stainless steel and available in a full range of depths and sizes.
Please quote Abtech ZAG10R for the unpainted aluminium version.
Aluminium ENCLOSURE
Zone 1 & ZONE 2 HAZARDOUS AREAS
ENCLOSURE APPLICATION
Abtech ZAG10 electrical enclosures are suitable for both industrial and hazardous areas.
Protection Degree IP67.
HAZARDOUS AREA CERTIFICATION
- ATEX & IECEx (Zone 1 & 2; Zone 21 & 22)
- CSA Ex e (Class 1 Zone 1)
- FM AEx e (Class 1 Zone 1)
- TR CU
- Type 4X (CSA, UL & FM)
ABTECH ZAG10 ELECTRICAL ENCLOSURES
JUNCTION BOX SPECIFICATION
| Part Reference | Enclosure Material | Width mm | Length mm | Depth mm | Weight g |
 ATEX |
| Abtech ZAG10 Enclosure | Painted Aluminium (RAL7001) | 220 | 120 | 80 | 1410 | Zone 1 & Zone 2 |
| Abtech ZAG10R Enclosure | Unpainted Aluminium | 220 | 120 | 80 | 1410 | Zone 1 & Zone 2 |
Aluminium Electrical Enclosures & Junction Boxes For Hazardous Areas
Abtech ZAG10 electrical enclosures, manufactured from aluminium, are suitable for Zone 1 and Zone 2 hazardous areas according to the ATEX Directive – the junction box or electrical enclosure can be populated with cable terminals including Weidmuller, Entrelec and Wago types.
CABLE GLAND ENTRY MATRIX
| Cable Gland Size | Side A – C | Side B- D |
| M16 | 6 | 1 |
| M20 | 4 | 1 |
| M25 | 3 | 1 |
| M32 | 0 | 0 |
| M40 | 0 | 0 |
TEMPERATURE RATING
-65°C to +150°C
ENCLOSURE POWER RATING
5.400W
Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.
T&D Are Main Abtech Stockists: Hazardous Area Power, Control & Instrumentation Junction Boxes & Electrical Enclosures suitable for low voltage and high voltage (3.3kV, 6.6kV, 11kV, 33kV) networks.
Zone 1 & Zone 2 Aluminium Enclosures & Junction Boxes – ATEX Hazardous Area – Abtech Catalogue
