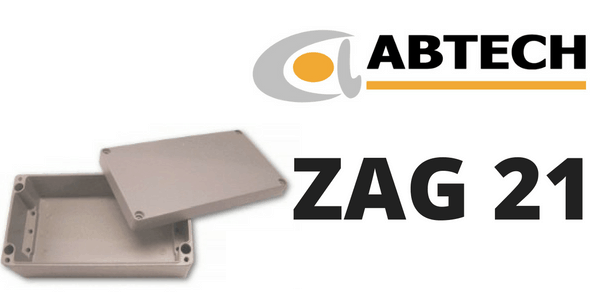

Abtech ZAG21 Enclosures
Abtech ZAG21 aluminium electrical enclosures are die cast aluminium enclosures for industrial non-hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from stainless steel and available in a full range of depths and sizes.
Please quote Abtech ZAG21R for the unpainted aluminium version.
Aluminium ENCLOSURE
ENCLOSURE APPLICATION
Abtech ZAG21Â electrical enclosures are suitable for industrial areas.
Protection Degree IP66.
ABTECH ZAG21Â ELECTRICAL ENCLOSURES
JUNCTION BOX SPECIFICATION
| Part Reference | Enclosure Material | Width mm | Length mm | Depth mm | Weight g |
| Abtech ZAG21Â Enclosure | Painted Aluminium (RAL7001) | 120 | 360 | 80 | 2050 |
| Abtech ZAG21RÂ Enclosure | Unpainted Aluminium | 120 | 360 | 80 | 2050 |
Abtech ZAG21 electrical enclosures, manufactured from aluminium can be populated with cable terminals including Weidmuller, Entrelec and Wago types.
CABLE GLAND ENTRY MATRIX
| Cable Gland Size | Side A – C | Side B- D |
| M16 | 12 | 1 |
| M20 | 8 | 1 |
| M25 | 7 | 1 |
| M32 | 0 | 0 |
| M40 | 0 | 0 |
TEMPERATURE RATING
Non Hazardous: -65°C to +150°C
ENCLOSURE POWER RATING
8.000W

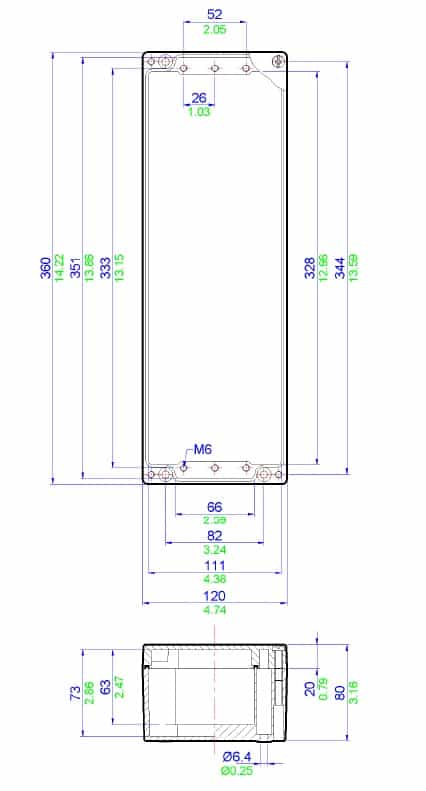

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.
